1986 Kawasaki KD80 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1986 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

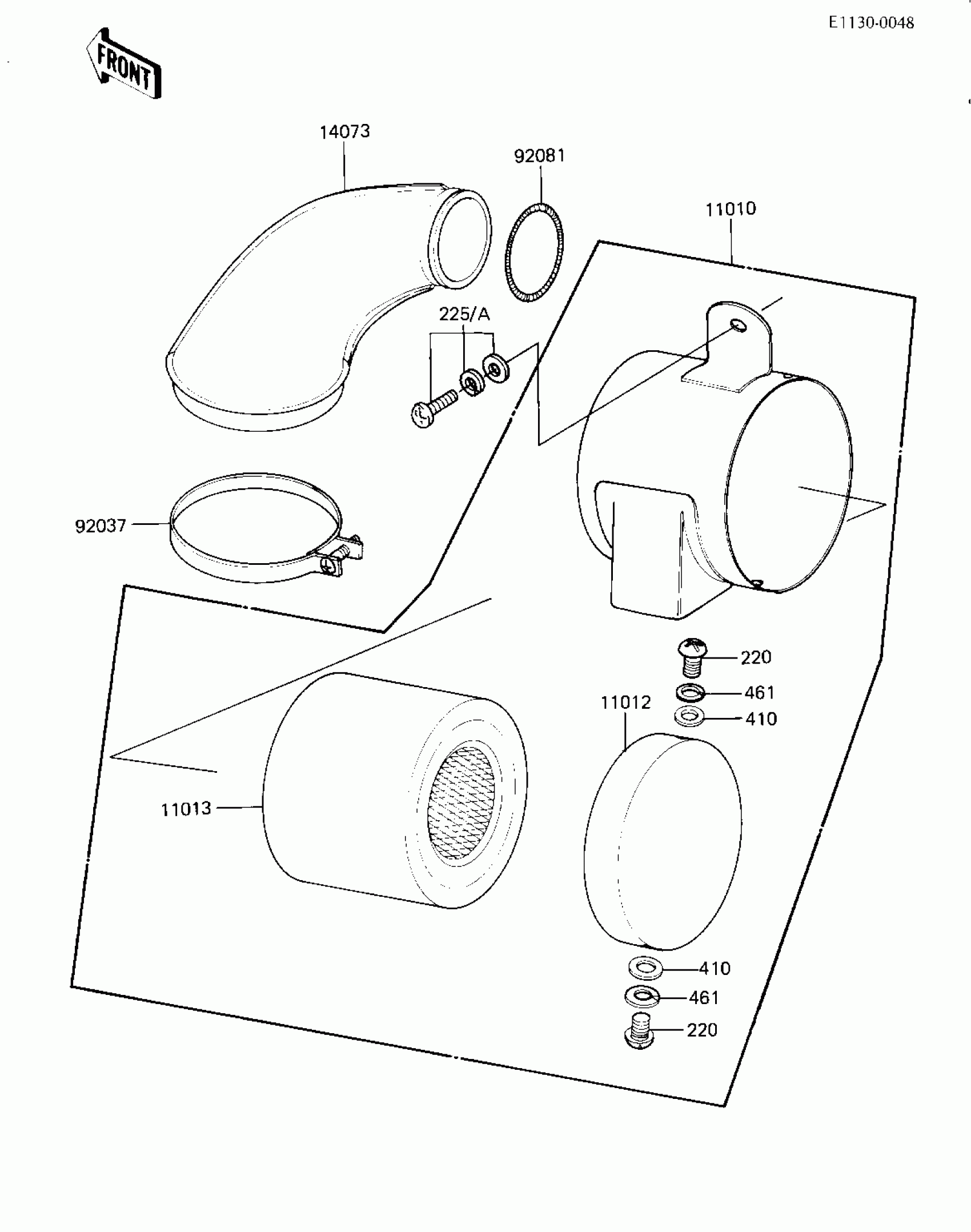

1986 Kawasaki KD80 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

AIR CLEANER ASY,BLACK

11010-068-10

1
Out of stock

11012

CAP,AIR CLEANER

11012-041

1
Out of stock

11013

ELEMENT,AIR,CLNR

11013-044

1
Out of stock

14073

CONNECTOR,AIR CLEANER

11026-009

1
Out of stock

92037

CLAMP

92037-068

1

$11.86

In stock

92081

SPRING COIL

92081-047

1

$8.95

In stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

225A

SCREW-PAN-WSP-CROS

225C0612

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
