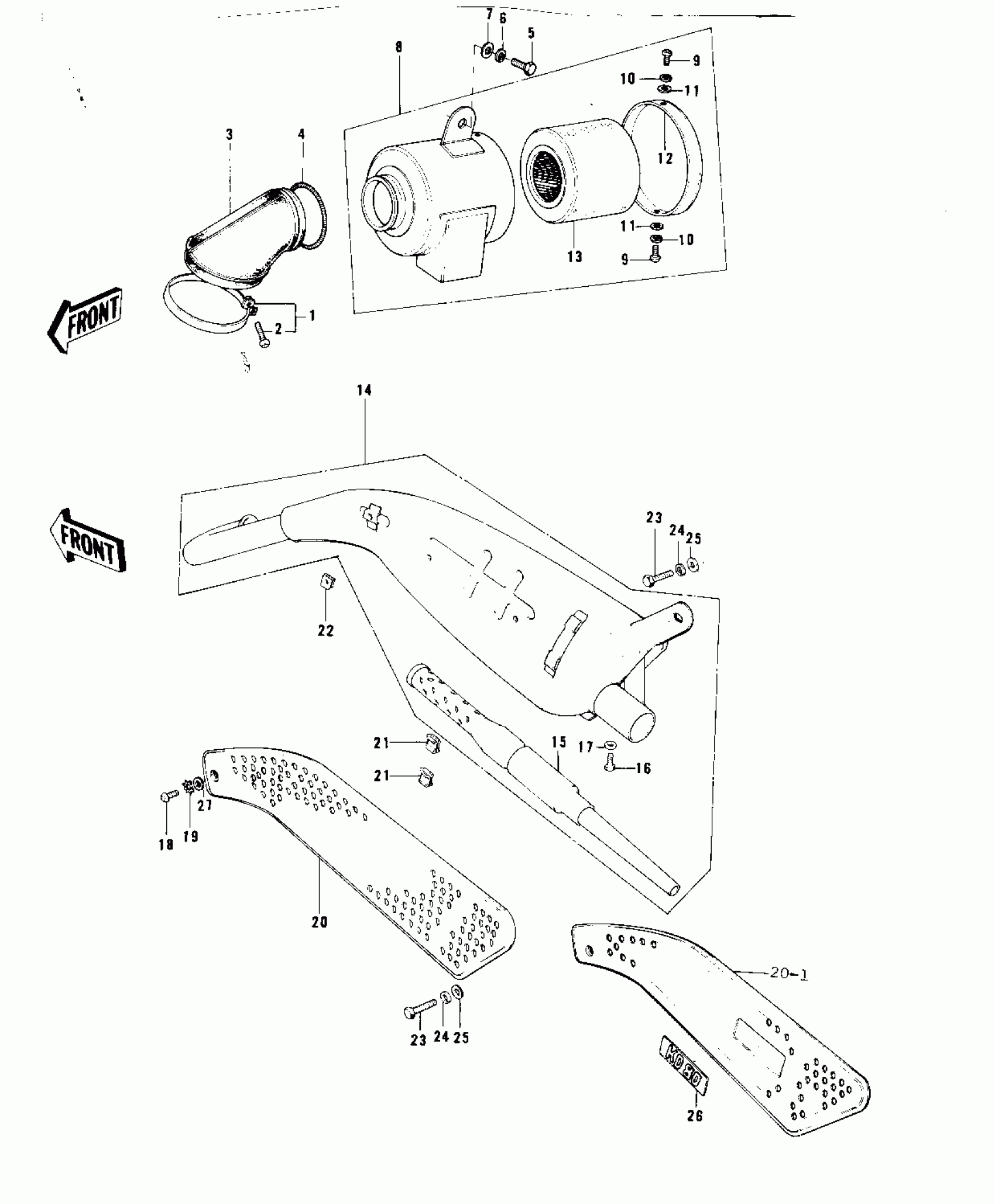

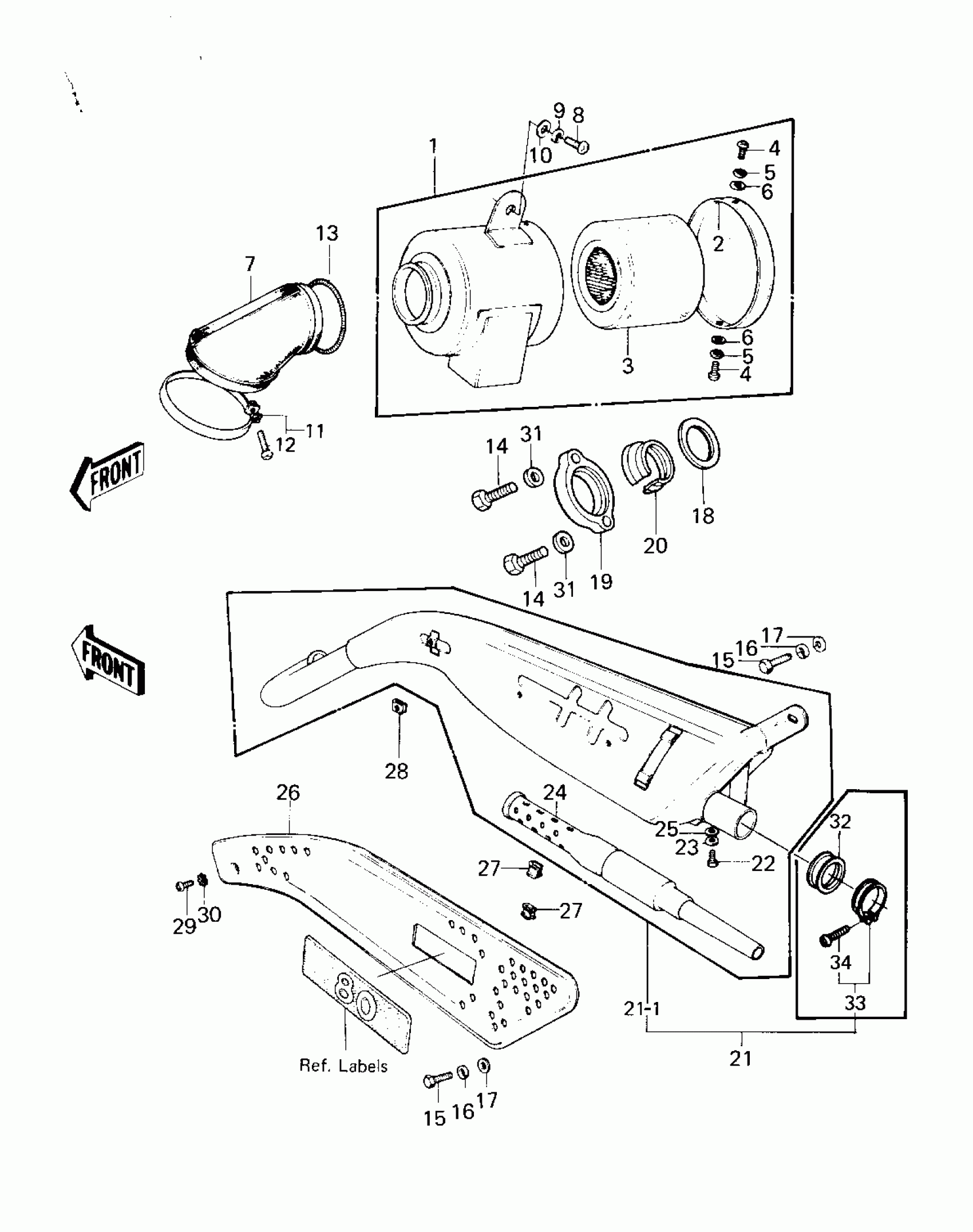

Kawasaki KD80 AIR CLEANER/MUFFLER Diagram
#
1
AIR CLEANER ASY,BLACK
11010-068-10
Unavailable
2
CAP,AIR CLEANER
11012-041
Unavailable
3
ELEMENT,AIR,CLNR
11013-044
Unavailable
4
SCREW PAN HEAD 5X8
220B0508
Unavailable
5
WASHER SPRING 5MM
461F0500
Unavailable
6
WASHER PLAIN 5MM
410B0500
Unavailable
7
CONNECTOR,AIR CLEANER
11026-009
Unavailable
8
SCREW PAN HEAD 6X12
220B0612
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
CLAMP
92037-068
Unavailable
12
SCREW PAN HEAD 6X35
220B0635
Unavailable
13
SPRING COIL
92081-047
Unavailable
14
BOLT-UPSET,6X35
112G0635
Unavailable
15
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
15
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
16
WASHER SPRING 8MM
461F0800
Unavailable
17
WASHER PLAIN 8MM
411B0800
Unavailable
18
GASKET,EXHAUST PIPE H
11009-1866
Unavailable
19
HOLDER,EX PIPE,BLACK
18069-035-21
Unavailable
20
INSERT-EXHAUST HOLDER
18070-005
Unavailable
21
MUFFLER ASSY
18001-1113
Unavailable
21-1
MUFFLER
18001-5116
Unavailable
22
BOLT,6X10
112G0610
Unavailable
23
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
24
BAFFLE TUBE
49099-1027
Unavailable
25
WASHER-PLAIN
92022-183
Unavailable
26
COVER,MUFFLER
18064-018
Unavailable
27
INSULATOR
18065-007
Unavailable
28
INSULATOR-HEAT
18065-009
Unavailable
29
SCREW PAN HEAD 6X12
220B0612
Unavailable
30
WASHER LOCK 6MM
463H0600
Unavailable
31
WASHER SPRING 6MM
461F0600
Unavailable
32
CONNECTOR,BAFFLETUBE
92093-1042
Unavailable
32
CONNECTOR,BAFFLETUBE
92093-1042
Unavailable
33
CLAMP,CARBURETOR HLDR
92037-178
Unavailable
34
SCREW-PAN-CROS,5X25
220B0525
Unavailable
