1979 Kawasaki KD175-A4 Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

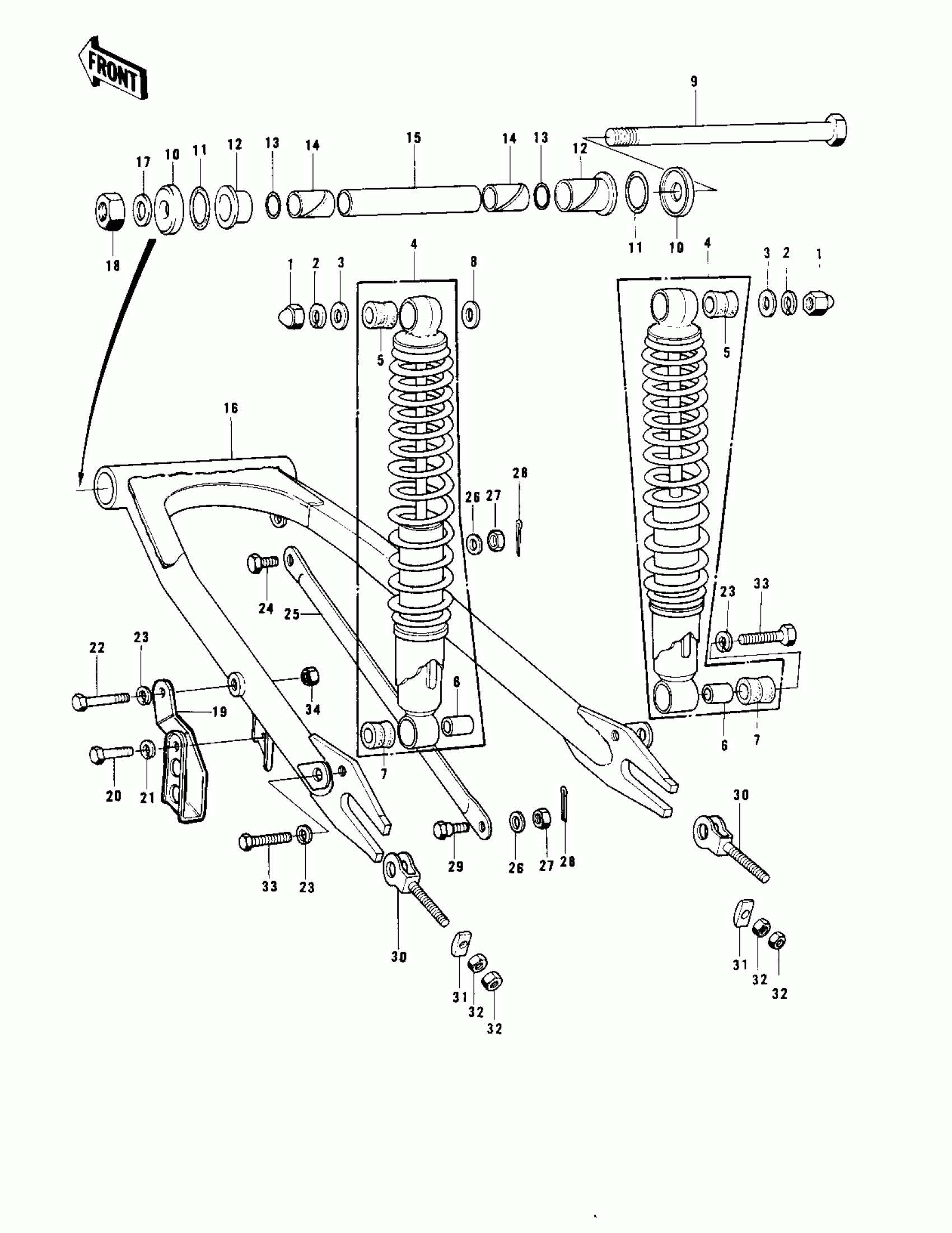

1979 Kawasaki KD175-A4 Swing Arm/shock Absorbers Diagram

#

Description
Price
Status
Order Qty

1

NUT,CAP,10MM

92020-003

Out of stock

2

WASHER SPRING 10MM

461F1000

Out of stock

3

WASHER,10.5X26X2.3

92022-044

Out of stock

4

SHOCK ABSBR RR

45014-113

Out of stock

4

SHOCK ABSBR RR

45014-1017

Out of stock

5

BUSH A-SHCK ABS RUBER

45017-010

Out of stock

6

DAMPER,SHOCKABSORBER

92075-1020

Out of stock

7

COLLAR,SHOCKABSORBER

45016-003

Out of stock

8

WASHER-PLAIN-SMALL,12MM

410B1200

Out of stock

9

SHAFT-SWING ARM

33032-034

Out of stock

10

CAP-SWINGING ARM

33035-005

Out of stock

11

"0" RING,30MM

671B2530

Out of stock

12

BUSHING-SWING ARM

33033-009

Out of stock

13

O RING,16MM

670B2016

Out of stock

13

"0" RING,16MM

92055-001

Out of stock

14

SLEEVE-SWINGING ARM

33034-016

Out of stock

15

COLLAR,SWING ARM,LONG

33036-007

Out of stock

16

ARM,SWING

33001-085

Out of stock

16

SWING ARM

33001-080

Out of stock

17

WASHER-PLAIN-SMALL,12MM

410B1200

Out of stock

18

NUT-LOCK,12MM

92019-009

Out of stock

19

GUARD,CHAIN

55020-016

Out of stock

20

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

21

WASHER SPRING 8MM

461F0800

Out of stock

22

BOLT,HEX HEAD,10X50

92001-1254

Out of stock

23

WASHER SPRING 10MM

461F1000

Out of stock

24

BOLT,HEX HEAD,AX24

92003-143

Out of stock

25

TORQUE LINK,REAR BRK

43007-039

Out of stock

26

WASHER SPRING 8MM

461F0800

Out of stock

27

NUT,8MM

320B0800

Out of stock

28

PIN-COTTER,2.0X20

550D2020

Out of stock

29

BOLT,RR TORQUE LINK

92003-144

Out of stock

30

ADJUSTER,CHAIN

33040-073

Out of stock

31

PLATE,CHAIN ADJUSTER

33041-005

Out of stock

32

NUT,8MM

311B0800

Out of stock

33

BOLT HEX HEAD 10X35

113N1035

Out of stock

34

NUT-HEX-FINE,10MM

314B1000

Out of stock
