1979 Kawasaki KD175-A4 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

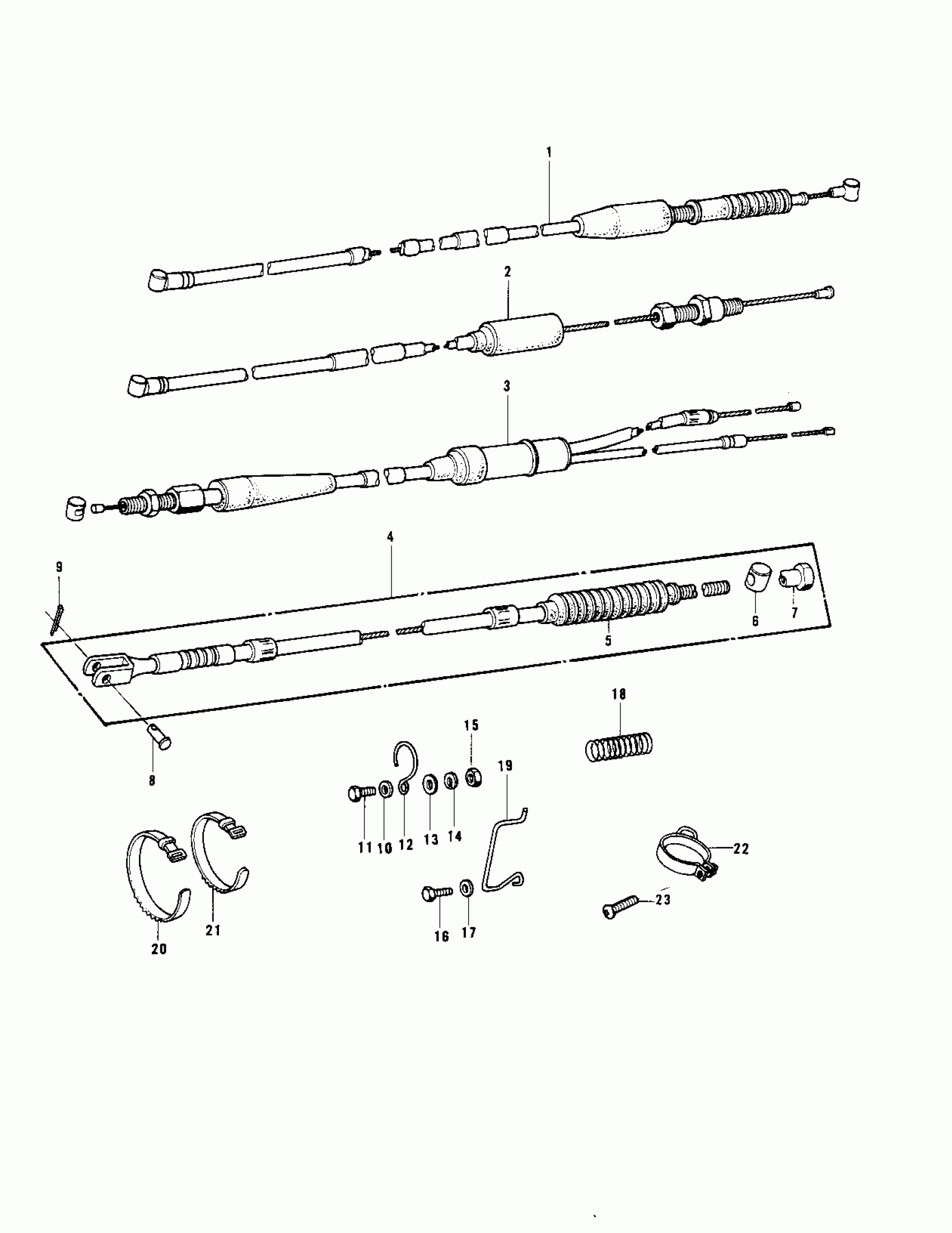

1979 Kawasaki KD175-A4 Cables Diagram

#

Description
Price
Status
Order Qty

1

CABLE,FRONT BRAKE

54005-079

Out of stock

2

CABLE,CLUTCH

54011-084

Out of stock

3

CABLE,CONTROL

54012-130

$97.18

In stock

4

CABLE,REAR BRAKE

54022-028

$47.90

In stock

5

DUST COVER-BRKE CABLE

54009-007

Out of stock

6

PIN BRAKE ROD

92043-053

Out of stock

7

NUT-BRAKE CABLE ADJST

92015-041

Out of stock

8

PIN,6X14.5

92043-125

$5.21

In stock

9

PIN COTTER 2.0X15

550D2015

Out of stock

10

$1.19

In stock

11

BOLT-UPSET

112G0618

Out of stock

12

CLAMP,CABLE

92037-092

$7.72

In stock

13

WASHER PLAIN 6MM

411B0600

Out of stock

14

WASHER SPRING 6MM

461F0600

Out of stock

15

NUT 6MM

311B0600

Out of stock

16

BOLT-UPSET,6X12

112G0612

Out of stock

17

WASHER PLAIN 6MM

411B0600

Out of stock

18

SPRING,CABLE

54025-004

Out of stock

19

CLAMP,CABLE

92037-175

Out of stock

20

BAND,L=218

92072-032

$3.97

In stock

21

BAND,L=123

92072-030

$3.97

In stock

22

$5.34

In stock

23

$4.61

In stock
