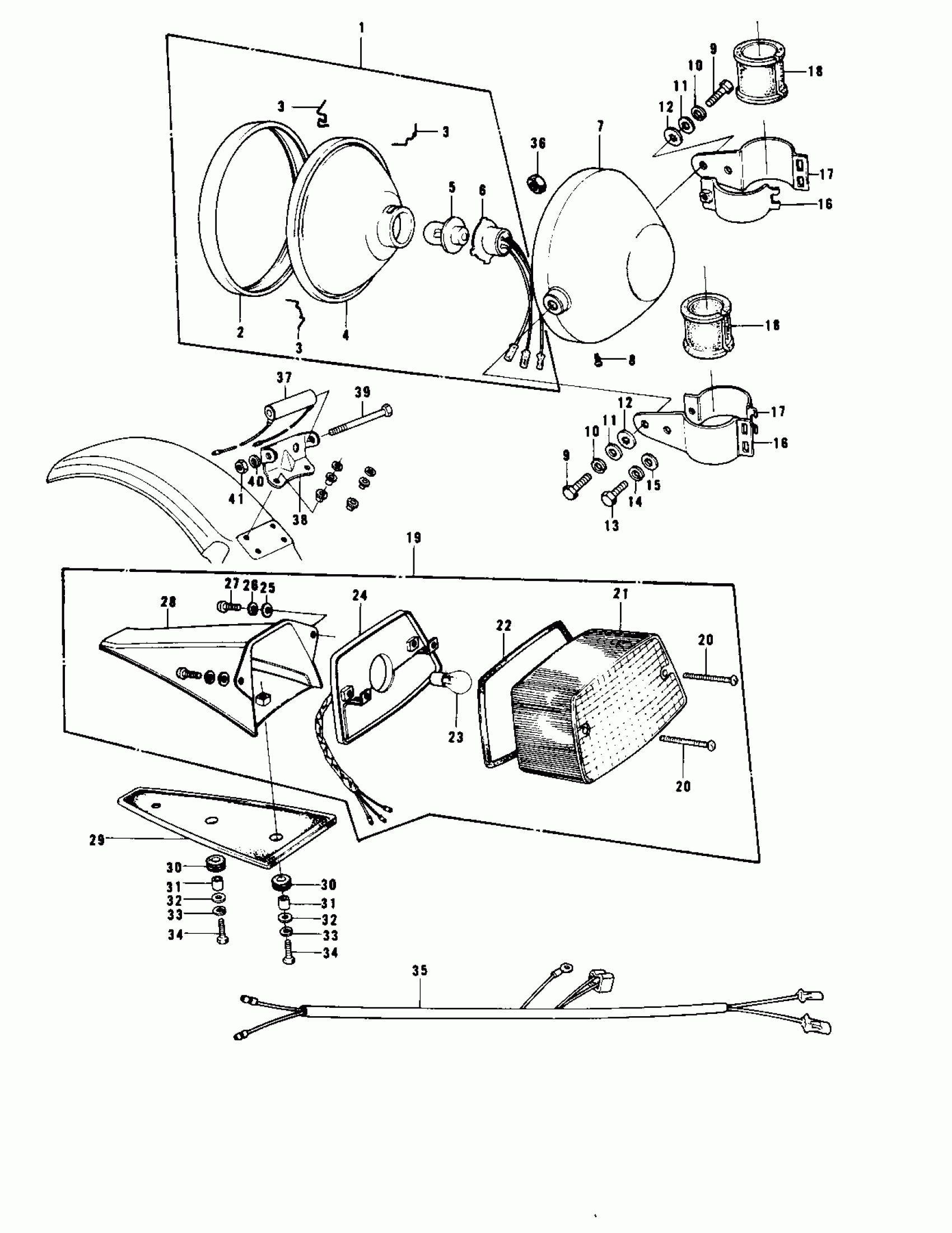

Kawasaki KD175-A4 OPTIONAL PARTS Diagram
#
1
LAMP UNIT-HEAD
23004-023
Unavailable
2
RIM,HEAD LAMP
23006-043
Unavailable
3
CLAMP,HEAD LAMP LENS
23009-014
Unavailable
4
LENS UNIT-HEAD LAMP
23007-010
Unavailable
5
BULB,6V 25/25W
92069-031
Unavailable
6
SOCKET HEAD LAMP
23008-009
Unavailable
7
BODY,HD LIGHT,FL BLCK
23005-1006-21
Unavailable
7
BODY,HD LIGHT,FL BLCK
23005-1006-21
Unavailable
8
SCREW OVL CNTSNK 5X8
222E0508A
Unavailable
8
SCREW,PAN HEAD,5X14
23019-025
Unavailable
9
BOLT,HEX HEAD,10X25
92007-045
Unavailable
10
WASHER SPRING 10MM
461F1000
Unavailable
11
WASHER-PLAIN,10MM
411B1000
Unavailable
12
WASHER LOCK 10MM
463H1000
Unavailable
13
BOLT,8X16
92007-003
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
WASHER PLAIN 8MM
411B0800
Unavailable
16
BRACKET,HEAD LAMP
23064-018
Unavailable
17
BRACKET,HEAD LAMP
23064-019
Unavailable
18
DAMPER RUBBER
92075-064
Unavailable
18
LAMP ASSY,TAIL,WHITE
23024-084-3G
Unavailable
20
SCREW-PAN-CROS
220E0325
Unavailable
21
LENS,TAIL LAMP
23026-040
Unavailable
22
GASKET,TAIL LIGHT
23028-020
Unavailable
23
BULB,6V 17/5.3W
92069-028
Unavailable
24
CASE,TAIL LAMP
23027-044
Unavailable
25
WASHER-PLAIN,5MM
411B0500
Unavailable
26
WASHER SPRING 5MM
461F0500
Unavailable
27
SCREW PAN HEAD 5X10
220E0510A
Unavailable
28
BKT,LICENSE PLT,WHITE
23036-042-3G
Unavailable
29
DAMPER RUBBER
23066-018
Unavailable
30
DAMPER,FENDER
92075-121
Unavailable
31
COLLAR 6.8X10X10.5
92027-120
Unavailable
32
WASHER,7X24X1.6
92022-228
Unavailable
33
WASHER SPRING 6MM
461F0600
Unavailable
34
BOLT 6X22
112B0622
Unavailable
35
WIRING HARNESS,MAIN
26001-138
Unavailable
36
NUT-HEX-FINE,10MM
314B1000
Unavailable
37
RESISTOR,40W
28018-1009
Unavailable
38
BRACKET,RESISTER
11034-1142
Unavailable
39
BOLT HEX HEAD 8X110
110B08110
Unavailable
40
WASHER SPRING 8MM
461F0800
Unavailable
41
NUT 8MM
312B0800
Unavailable
