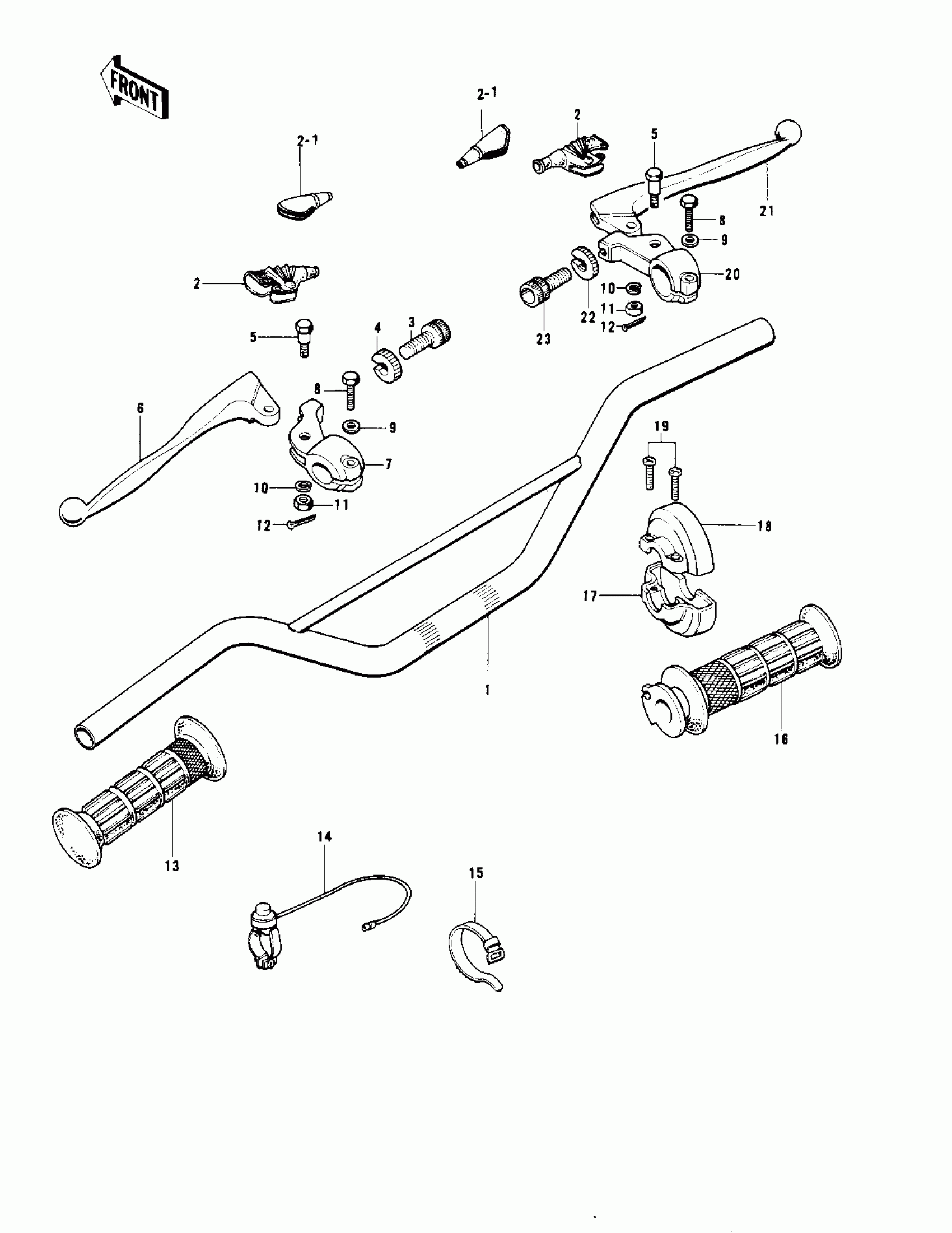

Kawasaki KD175-A4 HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR

46004-028

Unavailable

2

BOOT,LEVER HOLDER

49006-1017

Unavailable

2-1

BOOT,LEVER HOLDER

49006-1017

Unavailable

3

SCREW,CABLE ADJUST,8MM

46055-009

Unavailable

4

NUT,CABLE ADJUST

46056-006

Unavailable

5

BOLT,HEX HEAD,6MM

92001-140

Unavailable

6

LEVER, CLUTCH

46092-021

Unavailable

7

HOLDER,CLUTCH LEVER

46094-014

Unavailable

8

BOLT,6X22

110N0622

Unavailable

9

WASHER PLAIN 6MM

411B0600

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

NUT CASTLE

320B0600

Unavailable

12

PIN-COTTER,1.6X15

550D1615

Unavailable

13

RUBBER,L.H GRIP

46075-025

Unavailable

14

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

15

BAND,L=123

92072-030

Unavailable

16

GRIP ASSY,THROTTLE

46019-033

Unavailable

17

CASE,R.H LOWER

46023-018

Unavailable

18

CASE,R.H UPPER

46041-022

Unavailable

19

SCREW PAN HEAD 5X20

220E0520

Unavailable

20

HOLDER,FR BRAKE LEVER

46060-010

Unavailable

21

FRONT BRAKE LEVER

46058-018

Unavailable

22

NUT,CABLE ADJUST

46056-006

Unavailable

23

SCREW,CABLE ADJUST

46055-010

Unavailable
