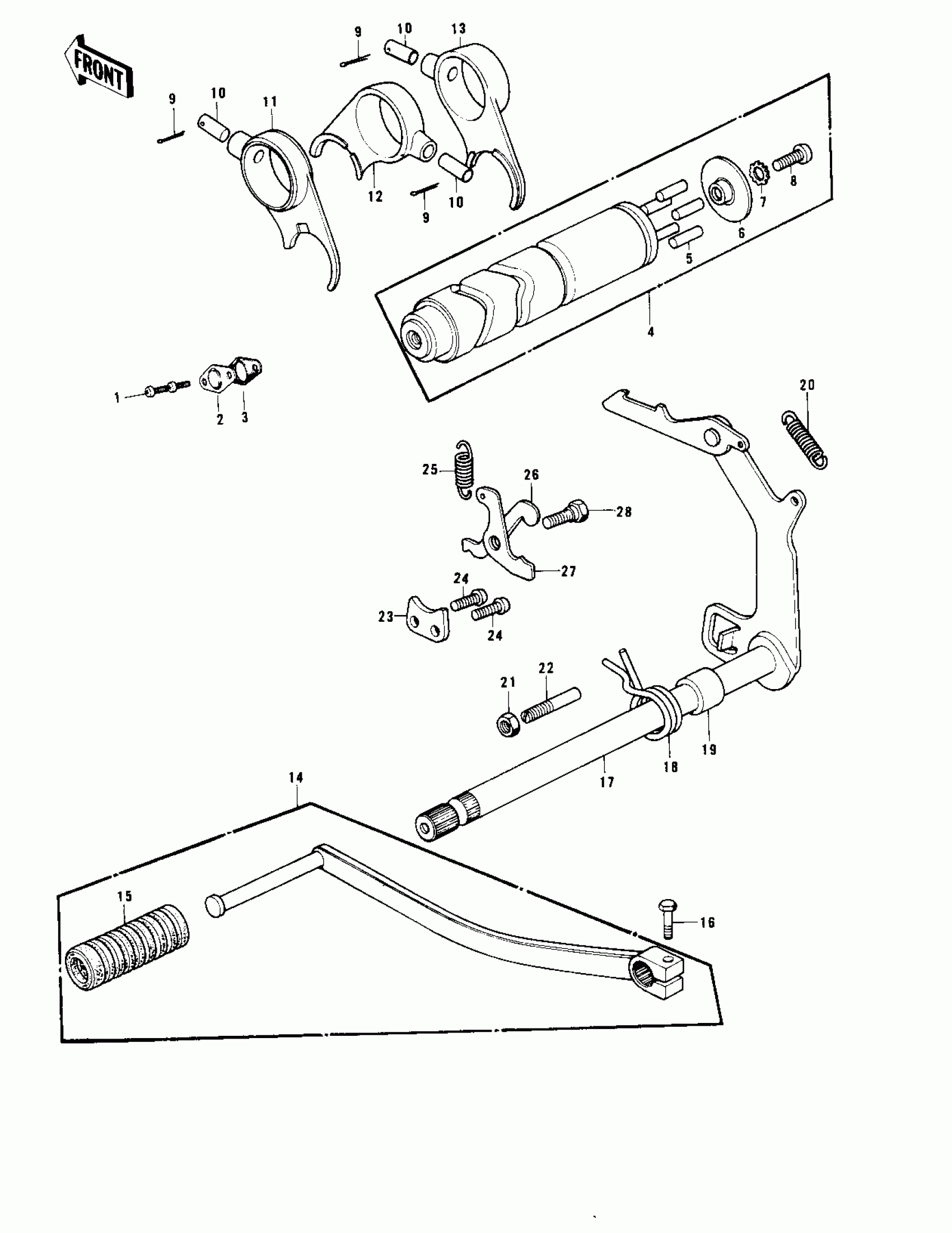

Kawasaki KD175-A4 GEAR CHANGE MECHANISM Diagram
#
Description
Price
1
SCREW PAN HEAD 6X10
220B0610
Unavailable
2
PLUG-OIL PUMP-HOLE
92084-004
Unavailable
3
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
4
DRUM ASSY-GEAR CHANGE
13239-002
Unavailable
5
PIN,DOWEL,4X15.8
92042-014
Unavailable
6
PLATE-CHANGE DRUM PIN
13142-009
Unavailable
7
WASHER LOCK 6MM
464H0600
Unavailable
8
SCREW-PAN-CROS,6X14
220B0614
Unavailable
9
PIN-COTTER,3.0X20
550D3020
Unavailable
10
PIN SELECT FORK GUIDE
92043-005
Unavailable
11
FORK-SELECTOR
13140-030
Unavailable
12
FORK-SELECTOR,TOP
13140-049
Unavailable
13
FORK-SELECTOR,LOW
13140-050
Unavailable
14
PEDAL,GEAR CHANGE
13156-064
Unavailable
15
DAMPER,CHANGE PEDAL
13157-004
Unavailable
16
BOLT-UPSET,6X20
112G0620
Unavailable
17
LEVER ASSY GEAR CHNG
13161-019
Unavailable
18
SPRING,TENSION
92081-1129
Unavailable
18
SPRING,TENSION
92081-1129
Unavailable
18
SPRING,TENSION
92081-1129
Unavailable
19
COLLAR,12X18X11.5
92027-121
Unavailable
20
SPRING,CHANGE LEVER
92144-1720
Unavailable
21
NUT 8MM
312B0800
Unavailable
22
BOLT,RETURN SPRING
92001-1401
Unavailable
23
PLATE CHNG DRUM PSTN
13169-002
Unavailable
24
SCREW-PAN-CROS,6X14
220B0614
Unavailable
25
SPRING-COIL
92081-091
Unavailable
26
LEVER-CHANGE DRUM,B
13168-017
Unavailable
27
LEVER-GEAR CHNG DRUM
13168-021
Unavailable
28
SCREW,6MM
92011-023
Unavailable
