1979 Kawasaki KD175-A4 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

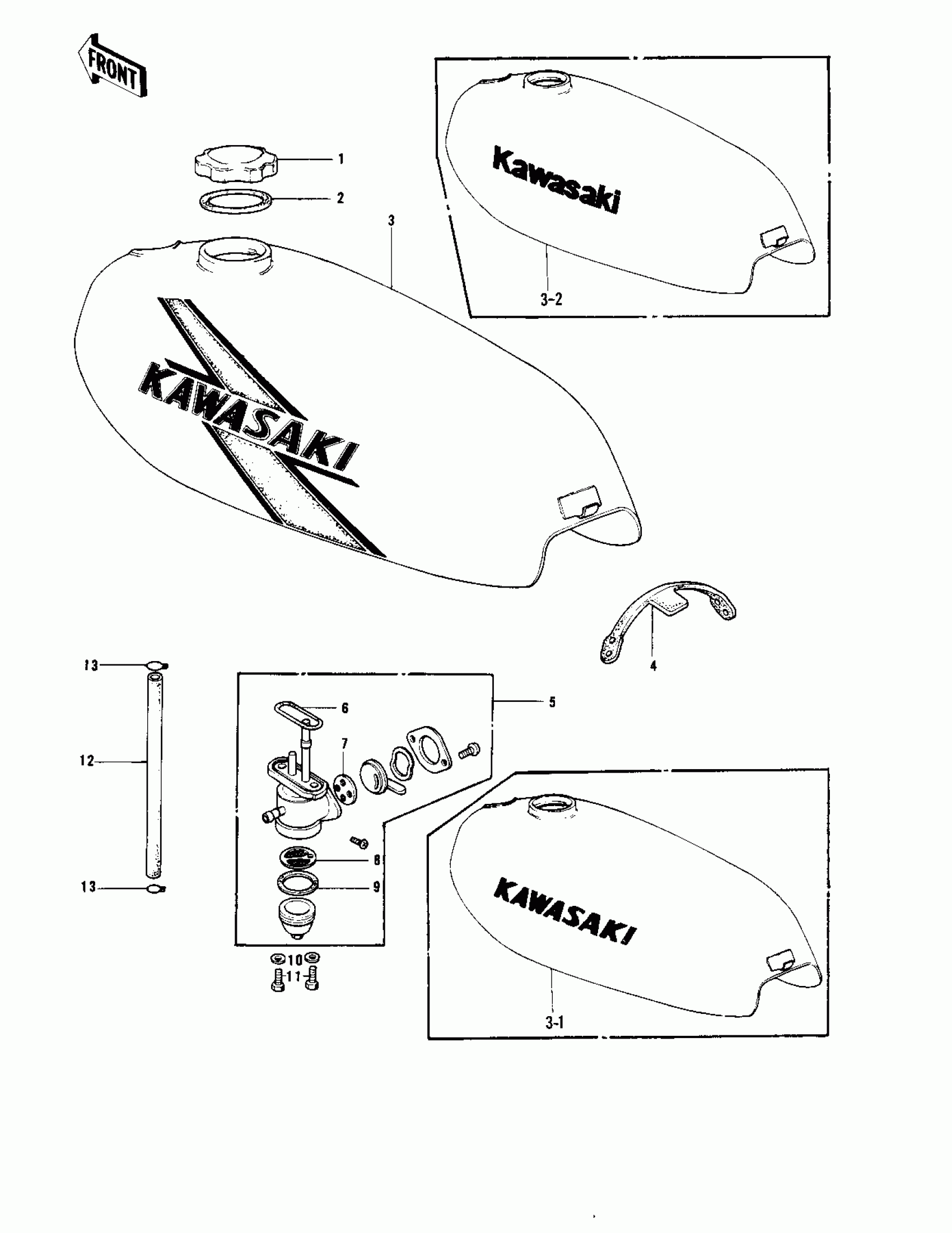

1979 Kawasaki KD175-A4 Fuel Tank Diagram

#

Description
Price
Status
Order Qty

1

CAP,FUEL TANK

51048-1013

Out of stock

2

$10.02

In stock

3

TANK-FUEL,SILVER

51001-101-4E

$473.51

In stock

3

TANK-FUEL,QUICK SILVR

51001-120-4E

Out of stock

3-1

TANK-FUEL,LIME GREEN

51001-101-7F

Out of stock

3-2

TANK-FUEL,TANGERINE

51001-101-B2

$473.51

In stock

4

BAND,FUEL TANK

92072-075

Out of stock

5

TAP ASSY,FUEL

51023-1001

Out of stock

5

TAP ASSY,FUEL

51023-1001

Out of stock

6

RING,TAP FLANGED

51039-003

$4.97

In stock

7

GASKET-FUEL COCK LEV

92065-094

Out of stock

8

STRAINER,FUEL

51038-008

Out of stock

9

GASKET FUEL COCK CUP

51037-011

Out of stock

10

WASHER-PLAIN

92022-183

Out of stock

11

BOLT-HEX HEAD,6X16

92001-114

Out of stock

12

PIPE,FUEL

92059-108

$10.68

In stock

13

CLAMP,TUBE

92037-010

$3.12

In stock
