1979 Kawasaki KD175-A4 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

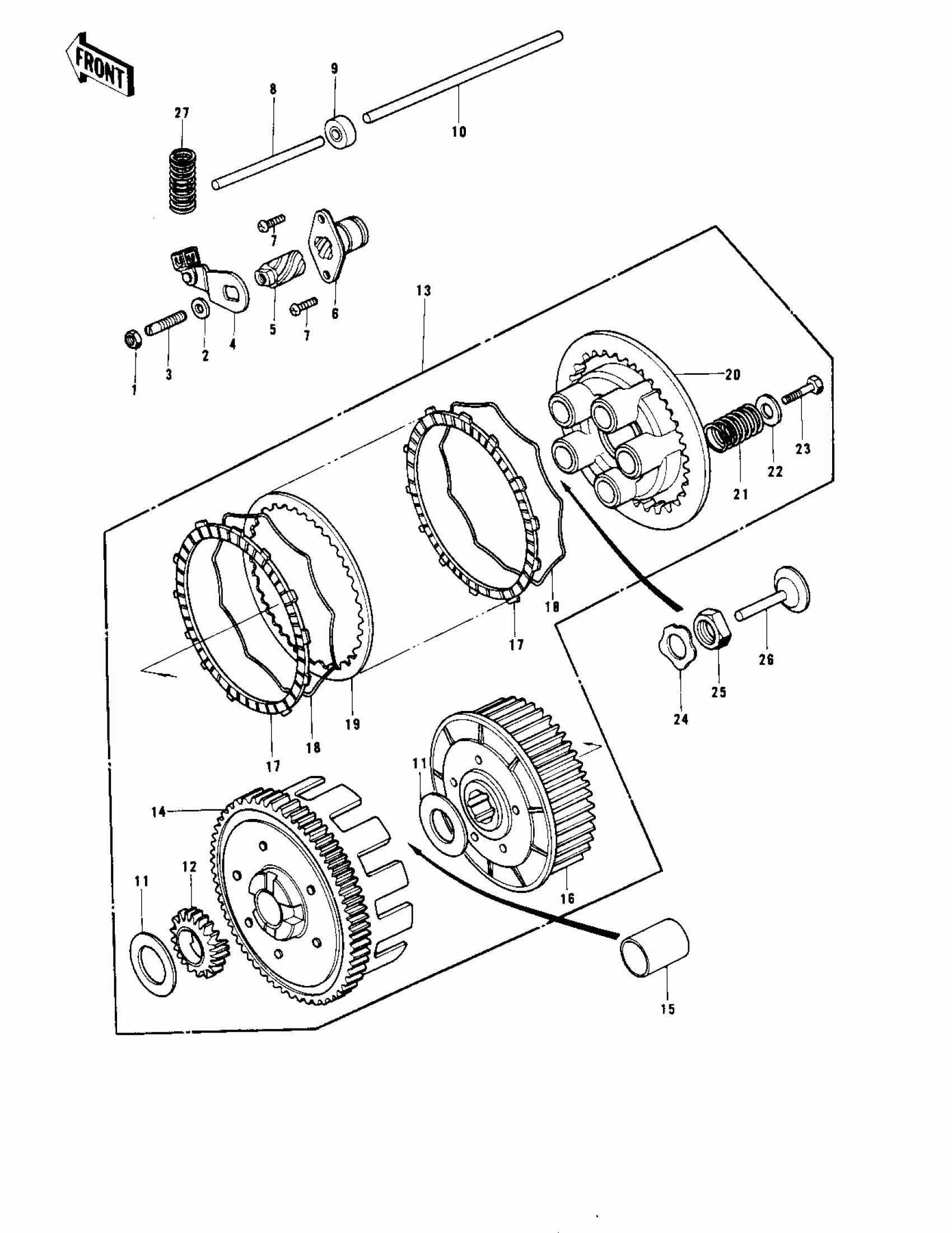

1979 Kawasaki KD175-A4 Clutch Diagram

#

Description
Price
Status
Order Qty

1

NUT 6MM

311B0600

Out of stock

2

WASHER PLAIN 6MM

411B0600

Out of stock

3

SCREW,SLOTTED,6X24

291H0624

Out of stock

4

INNER,CLUT RELESE

13102-023

Out of stock

5

SCREW

13104-017

Out of stock

6

OUTER,CLUT RELESE

13118-014

Out of stock

7

$1.32

In stock

8

ROD-CLUTCH PUSH,SHORT

13116-018

Out of stock

9

OIL SEAL TB7246

92052-010

Out of stock

10

ROD-CLUTCH PUSH,LONG

13116-017

Out of stock

11

WASHER,20.5X34X1.4

92022-168

$7.55

In stock

12

PINION-KICKSTARTER

13075-006

Out of stock

13

CLUTCH-ASSY

13081-084

Out of stock

13

CLUTCH-ASSY

13081-084

Out of stock

14

HOUSING-COMP-CLUTCH

13095-1024

Out of stock

14

HOUSING-COMP-CLUTCH

13095-1024

Out of stock

15

BUSH-CLUTCH

92028-014

$19.75

In stock

16

HUB,CLUTCH

13087-032

Out of stock

17

PLATE-FRICTION

13088-1015

$19.58

In stock

18

RING-CLUTCH STEEL

13229-002

Out of stock

19

PLATE CLUTCH STEEL

13089-003

$11.25

In stock

20

PLATE-CLUTCH SPRING

13187-004

Out of stock

21

SPRING,CLUTCH

92081-080

$15.27

In stock

22

WASHER-PLAIN,5MM

92022-167

Out of stock

23

BOLT,5X18

92003-078

Out of stock

24

WASHER-LOCK,14MM

92024-046

Out of stock

25

NUT-HEX-FINE,14MM

315B1400

Out of stock

26

PUSHER-CLTCH SPRG PLT

13116-016

Out of stock

27

$4.51

In stock
