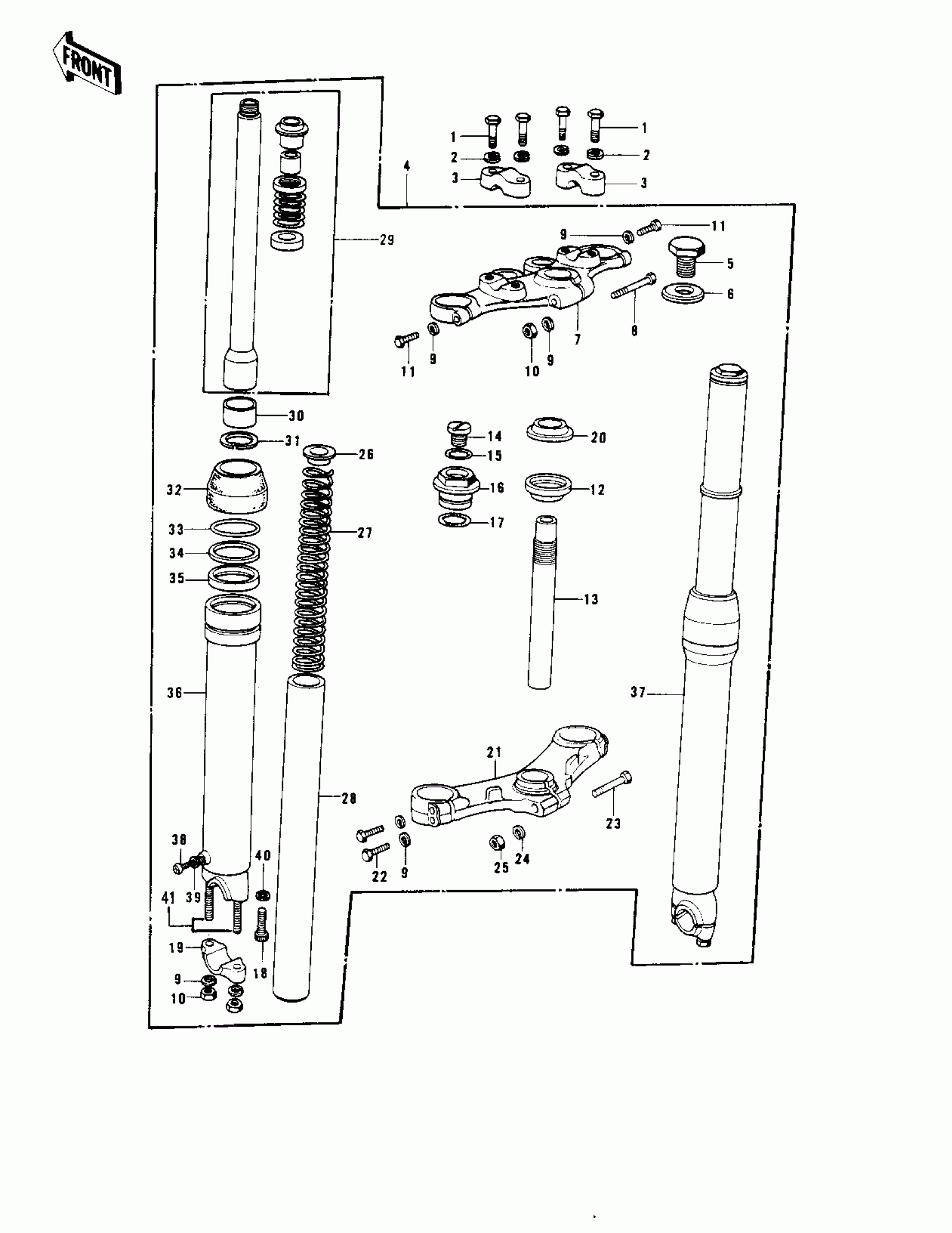

Kawasaki KD175-A4 FRONT FORK Diagram
#
1
BOLT 8X38
92001-1405
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
HOLDER,HANDLEBAR
46012-014
Unavailable
4
FORK-FRONT
44001-192
Unavailable
5
BOLT STRNG STEM HEAD
44041-007
Unavailable
6
WASHER STRNG STEM HD
44043-016
Unavailable
7
HEAD,STEERING STEM
44039-068
Unavailable
8
BOLT,FORK TOP
44041-065
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
NUT,8MM
311B0800
Unavailable
11
BOLT-STEERING STEM HD
44041-044
Unavailable
12
DUST SHIELD-STRNG STM
44010-020
Unavailable
13
SHAFT,STEERING STEM
44052-011
Unavailable
14
SCREW,TOP BOLT
44041-082
Unavailable
15
"O" RING
44046-024
Unavailable
16
BOLT,FORK TOP
44032-013
Unavailable
17
'O' RING FORK FIT BLT
44046-013
Unavailable
18
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
19
HOLDER,FORK AXLE
44063-013
Unavailable
20
RACE,STEERING STEM BEARING
92047-010
Unavailable
21
STEM,STEERING
44038-010
Unavailable
22
BOLT HEX HEAD 8X35
110N0835
Unavailable
23
BOLT-STEERING STEM HD
44041-042
Unavailable
24
WASHER SPRING 10MM
461F1000
Unavailable
25
NUT (10MM)
311B1000
Unavailable
26
GUIDE,FORK SPRING
44028-038
Unavailable
27
SPRING,FORK
44026-069
Unavailable
28
TUBE,FORK INNER
44013-056
Unavailable
29
CYLINDER-FORK
44022-036
Unavailable
30
PISTON,FORK
44018-010
Unavailable
31
CIRCLIP,26MM
481J2600
Unavailable
32
DUST SHIELD
44010-033
Unavailable
33
CIRCLIP,FORK OUT TUB
44044-022
Unavailable
34
WASHER
44043-059
Unavailable
35
OIL SEAL
44009-025
Unavailable
36
TUBE,LH,FORK OUTER
44005-062
Unavailable
37
TUBE,RH,FORK OUTER
44006-060
Unavailable
38
SCREW PAN HEAD 4X8
220B0408
Unavailable
39
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
40
GASKET
44045-057
Unavailable
41
BOLT-STUD,8X30
172G0830
Unavailable
