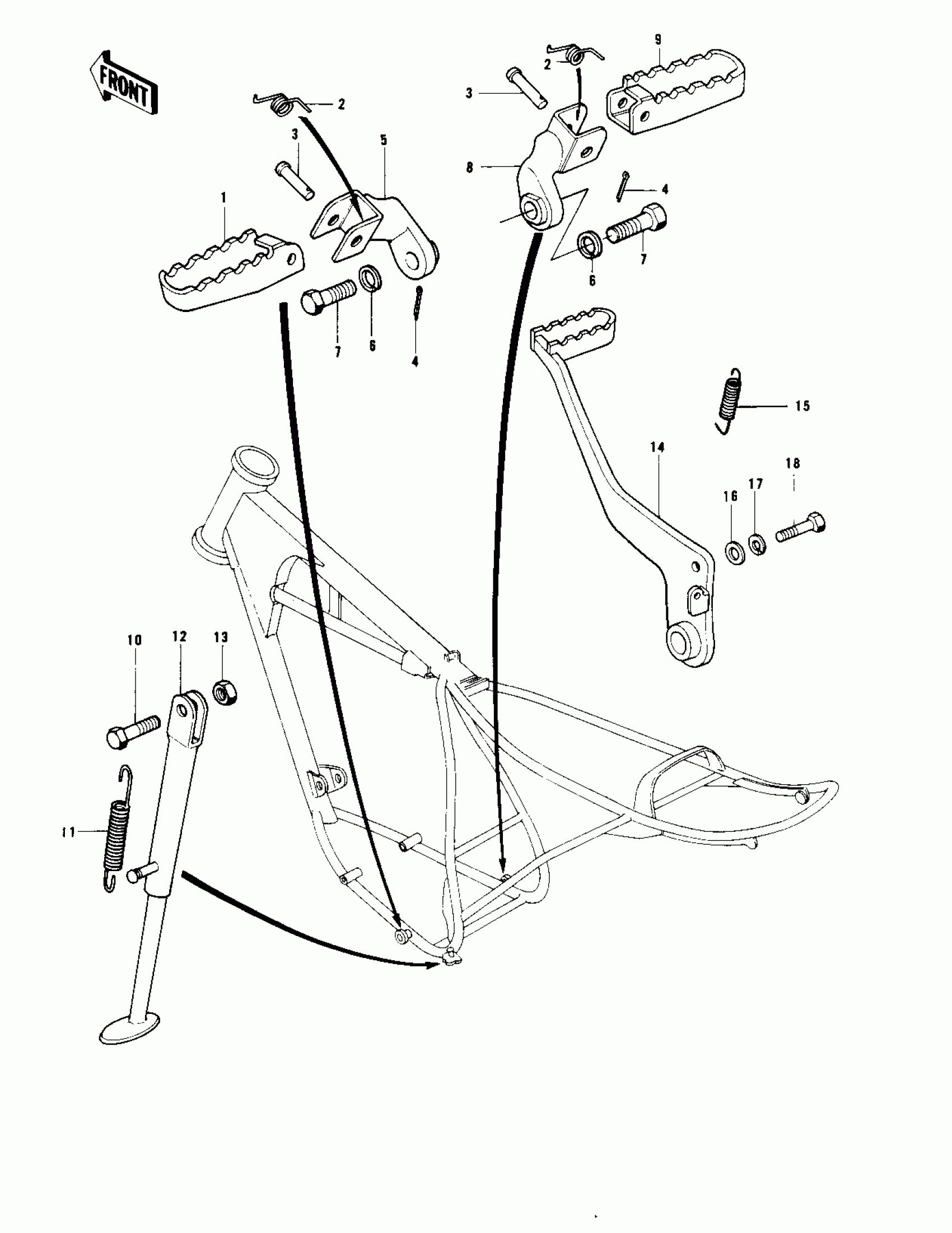

Kawasaki KD175-A4 FOOTRESTS/STAND/BRAKE PEDAL Diagram

#

Description

Price

1

BAR,L.H FOOTREST

34028-024

Unavailable

2

SPRING,FOOTRESTBAR

92083-027

Unavailable

3

PIN,8X31

92043-080

Unavailable

4

PIN COTTER 2.5X16

550D2516

Unavailable

5

BRACKET,L.H.FOOTREST

34007-013

Unavailable

6

WASHER SPRING 14MM

461F1400

Unavailable

7

BOLT-HEX HEAD,14X32

113B1432

Unavailable

8

BRACKET,R.H FOOTREST

34007-014

Unavailable

9

BAR,R.H FOOTREST

34028-023

Unavailable

10

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

11

SPRING,STAND

34025-008

Unavailable

12

STAND-SIDE

34024-1043

Unavailable

13

NUT-HEX-FINE,10MM

314B1000

Unavailable

14

PEDAL,BRAKE

43001-065

Unavailable

15

SPRING BRAKE PEDAL

43005-032

Unavailable

16

WASHER,6.5X20X1.6,WHITE

92022-193

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

SCREW PAN HEAD 6X10

220E0610

Unavailable
