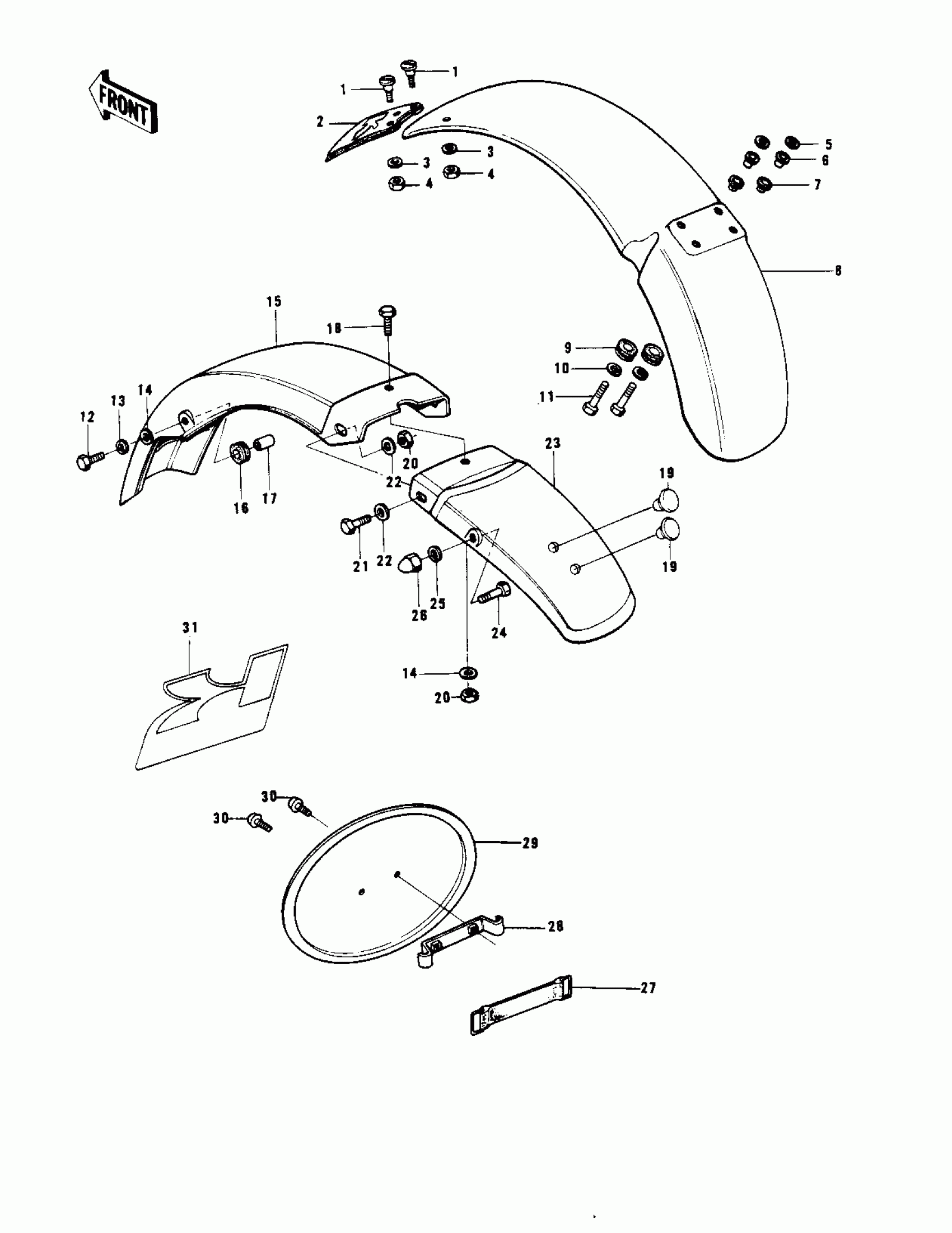

Kawasaki KD175-A4 FENDERS/NUMBER PLATE Diagram
#
1
BOLT,5X12
92001-134
Unavailable
2
FLAP,FRONT FENDER
35019-007
Unavailable
3
WASHER PLAIN 5MM
410B0500
Unavailable
4
NUT-HEX
311B0500
Unavailable
5
WASHER,7X24X1.6
92022-228
Unavailable
6
COLLAR
92027-194
Unavailable
7
DAMPER RUBBER
92075-103
Unavailable
8
FENDER-FR,F.BLACK
35004-086-21
Unavailable
8
FENDER-FR,WHITE
35004-1001-6V
Unavailable
8
FENDER-FR,TANGERINE
35004-1001-6M
Unavailable
9
DAMPER,FENDER
92075-121
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
BOLT-UPSET
112G0625
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
WASHER,6.5X20X1.6
92022-125
Unavailable
15
FENDER-RR
35022-100
Unavailable
16
DAMPER RUBBER
92075-105
Unavailable
17
COLLAR
92027-103
Unavailable
18
BOLT-UPSET 6X14
112B0614
Unavailable
19
PLUG REAR FENDER RUB
92074-006
Unavailable
20
NUT,LOCK 6MM
92017-014
Unavailable
21
BOLT-UPSET
112G0618
Unavailable
22
WASHER PLAIN 6MM
411B0600
Unavailable
23
FENDER-RR,F.BLACK
35022-120-21
Unavailable
23
FENDER-RR,WHITE
35022-120-A7
Unavailable
23
FENDER-RR,TANGERINE
35022-120-B2
Unavailable
24
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
25
WASHER SPRING 8MM
461F0800
Unavailable
26
NUT FUEL TANK FRONT
92020-007
Unavailable
27
BAND,L=142.1
92072-006
Unavailable
28
BRACKET,NUMBER PLATE
58030-008
Unavailable
29
PLATE,FRONT NUMBER
58029-026
Unavailable
30
SCREW,6X10,WHITE
92009-1286
Unavailable
31
EMBLEM,NUMBER PLATE
56018-244
Unavailable
