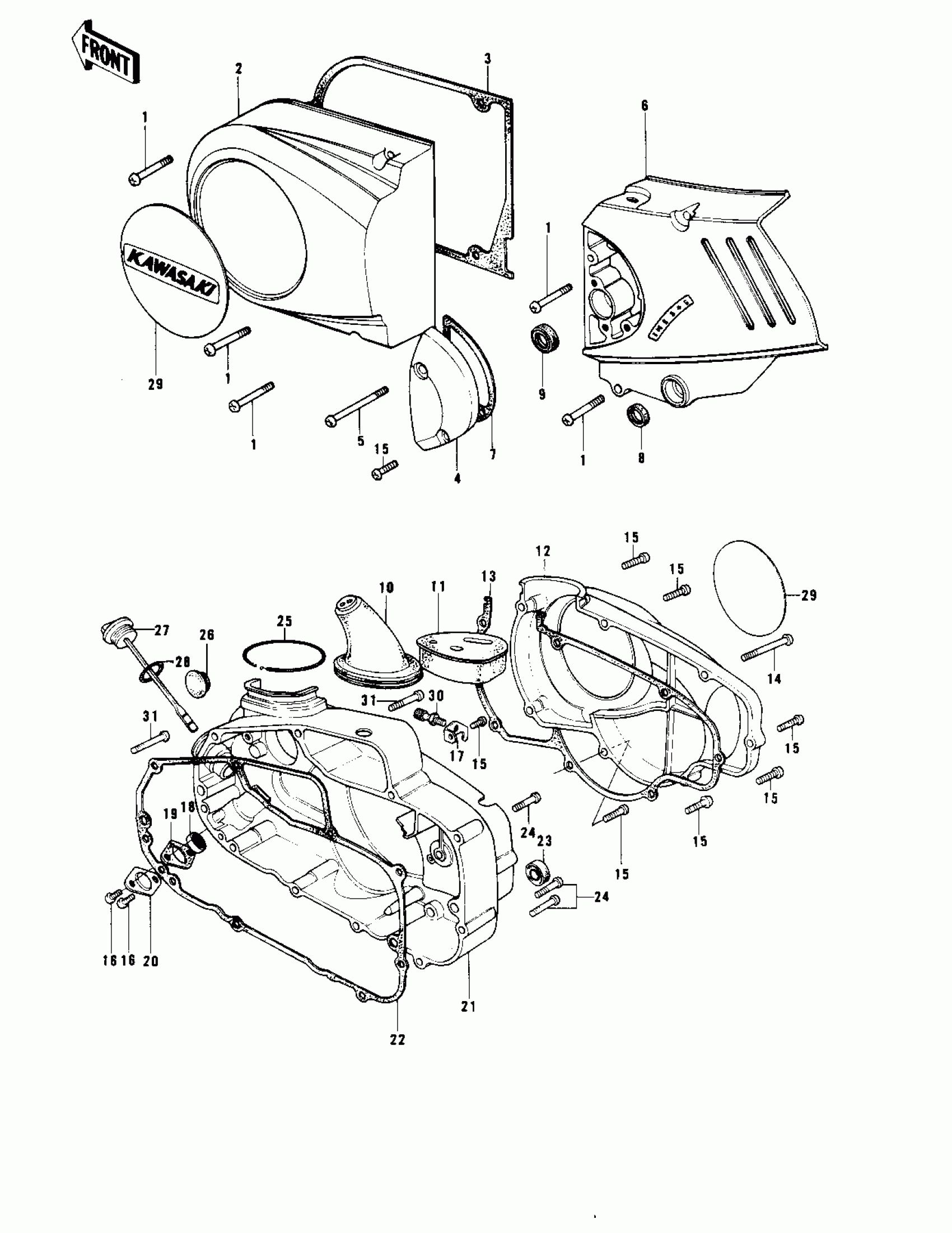

Kawasaki KD175-A4 ENGINE COVERS Diagram
#
Description
Price
1
SCREW PAN HEAD 6X45
220B0645
Unavailable
2
COVER,L.H ENGINE,BARE
14031-091-2H
Unavailable
3
GASKET,L.H ENGINE COV
14045-024
Unavailable
4
COVER,CLUTCH RELESE
14030-065-2H
Unavailable
5
SCREW PAN HEAD 6X80
220B0680
Unavailable
6
COVER,FRONT CHAIN,BAR
14026-031-2H
Unavailable
7
GASKET,CLUTCH REL COV
14049-005
Unavailable
8
SEAL-OIL
92049-1249
Unavailable
9
OIL SEAL,VC7205
92052-013
Unavailable
10
CAP,CARBURETOR
14038-045
Unavailable
11
CAP,CARBURETOR
14038-044
Unavailable
12
CAP,CLUTCH RELEASE,BL
14030-1004
Unavailable
13
GASKET,CARBURETOR COV
14048-006
Unavailable
14
SCREW PAN HEAD 6X85
220B0685
Unavailable
15
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
16
SCREW PAN HEAD 6X12
220B0612
Unavailable
17
HOLDER,OIL PUMP CABL
14044-011
Unavailable
18
PLUG,25X12
16116-006
Unavailable
19
GASKET,FUEL DRAIN
14049-006
Unavailable
20
CAP,FUEL DRAIN
14028-007
Unavailable
21
COVER,R.H ENGINE,BARE
14032-110-2H
Unavailable
22
GASKET,R.H ENGINE COV
14046-032
Unavailable
23
SEAL-OIL,TB16267
92051-003
Unavailable
24
SCREW PAN HEAD 6X35
220B0635
Unavailable
25
SPRING COIL
92081-047
Unavailable
26
CAP,RUBBER
14039-001
Unavailable
27
PLUG,OIL FILLER
16115-023
Unavailable
28
O RING,20MM
670B2020
Unavailable
29
EMBLEM,ENGINE COVER
56018-205
Unavailable
29
MARK,ENGINE COVER
56018-1099
Unavailable
30
ADJUSTER-CABLE
16002-012
Unavailable
31
SCREW PAN HEAD 6X50
220B0650
Unavailable
