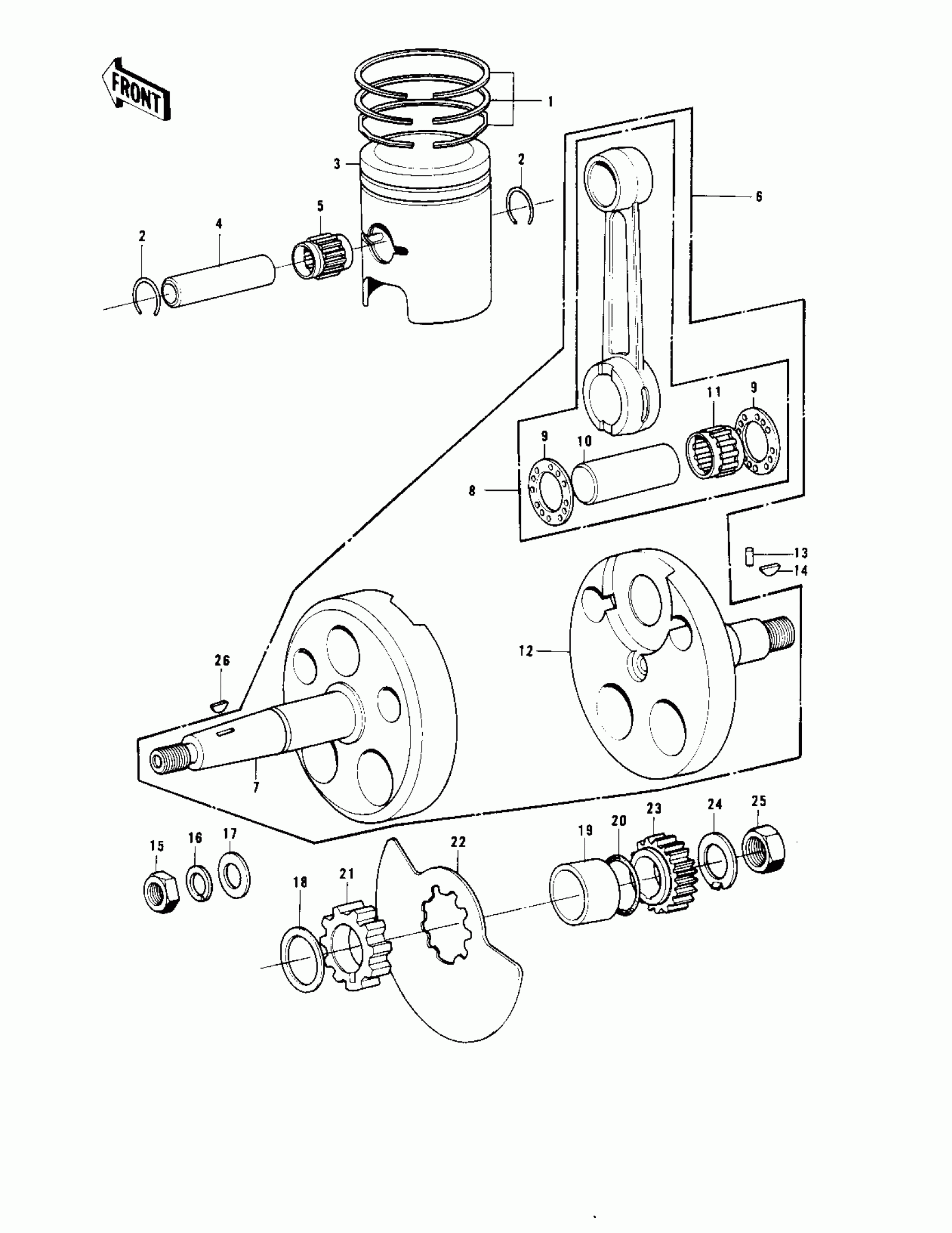

Kawasaki KD175-A4 CRANKSHAFT/PISTON/ROTARY VALVE Diagram
#
Description
Price
1
RING SET,STD
13008-058
Unavailable
1
RING SET,0.020'0.S
13025-058
Unavailable
1
RING SET,0.040'0.S
13024-058
Unavailable
2
RING-SNAP,PISTON PIN
92036-003
Unavailable
3
PISTON,STD
13001-074
Unavailable
3
PISTON,0.020'0.S
13029-072
Unavailable
3
PISTON,0.040'0.S
13027-065
Unavailable
4
PIN-PISTON
13002-018
Unavailable
5
BEARING,SMALL END
13033-034
Unavailable
6
CRANKSHAFT ASSY
13036-049
Unavailable
7
CRANKSHAFT,L.H
13037-038
Unavailable
8
CONNECTING ROD SET
13044-039
Unavailable
9
SPACER,22.5X37X1.0
92026-011
Unavailable
10
CRANK PIN
13035-022
Unavailable
11
BEARING,BIG END
13034-042
Unavailable
12
CRANKSHAFT,R.H
13038-034
Unavailable
13
ROLLER,4X10
610A0410
Unavailable
14
KEY,WOODRUFF
92038-003
Unavailable
15
NUT 14MM
92015-043
Unavailable
16
WASHER SPRING 14MM
461F1400
Unavailable
17
WASHER-PLAIN,14MM
92022-172
Unavailable
18
COLLAR-CRANKSHAFT
92027-118
Unavailable
19
COLLAR,25X32X10.5
92143-1370
Unavailable
20
"0" RING,22MM
92055-018
Unavailable
21
COLLAR,DISC VLV
92027-242
Unavailable
22
VALVE,ROTARY DISC
12002-028
Unavailable
23
PINION,PRIMARY
13121-027
Unavailable
24
WASHER,LOCK,18MM
92024-067
Unavailable
25
NUT,18MM
92015-019
Unavailable
26
KEY,WOODRUFF
92038-001
Unavailable
