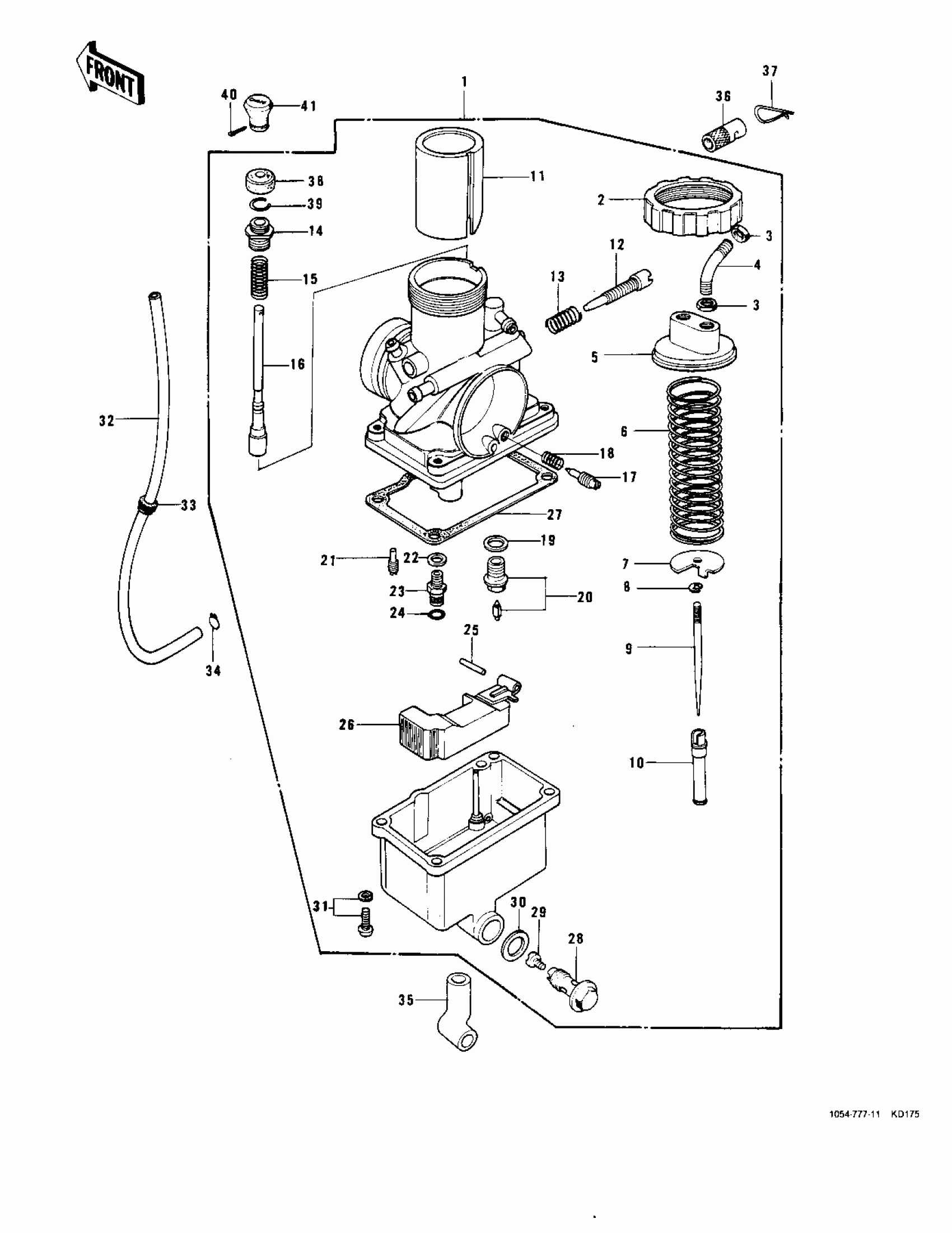

Kawasaki KD175-A4 CARBURETOR Diagram
#
1
CARBURETOR ASSY
16001-273
Unavailable
2
CAP MIXING CHAMBER
16004-011
Unavailable
3
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
4
GUIDE,CABLE
16077-015
Unavailable
5
TOP,MIXING CHAMBER
16005-025
Unavailable
6
SPRING,THROTTLE VALVE
16006-029
Unavailable
6
SPRING,THROTTLE
16006-031
Unavailable
7
SPRING SEAT,THRTL VLV
16007-025
Unavailable
8
CLAMP,E-TYPE
16008-010
Unavailable
9
JET NEEDLE 4EJ3
16009-040
Unavailable
10
NEEDLE JET,0-8
16017-094
Unavailable
11
VALVE,THROTTLE
16025-079
Unavailable
12
SCREW,THROTTLE STOP
16021-023
Unavailable
13
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
14
CAP-STARTER PLUNGER
16012-021
Unavailable
15
SPRING,STARTER PLUNGER
16013-010
Unavailable
16
PLUNGER,STARTER
16016-020
Unavailable
17
SCREW-PILOT AIR
16014-002
Unavailable
18
SPRING,PILOT AIR SCREW
16022-007
Unavailable
19
WASHER FLOAT VLV SEAT
16029-004
Unavailable
20
FLOAT VALVE ASSY,#2.6
16030-025
Unavailable
21
JET-PILOT,#30
92064-022
Unavailable
22
WASHER,MAIN JET
16034-001
Unavailable
23
HOLDER-NEEDLE JET
16065-008
Unavailable
24
RING-O
92055-044
Unavailable
25
FLOAT PIN
16032-006
Unavailable
26
FLOAT
16031-026
Unavailable
27
GASKET,FLOAT CHAMBER
16019-023
Unavailable
28
BOLT-BANJO
92001-097
Unavailable
29
MAIN JET,#A102.5
92063-1028
Unavailable
29
JET-MAIN,#A95R
92063-1031
Unavailable
29
MAIN JET,#A97.5R
92063-1035
Unavailable
29
MAIN JET,#A100
92063-1033
Unavailable
29
MAIN JET,#A105R
92063-1042
Unavailable
30
GASKET-BANJO BOLT
16034-005
Unavailable
31
SCREW-PAN-WS-CROS
223B0414
Unavailable
32
PIPE-OIL
92059-072
Unavailable
33
GROMMET,PIPE
92071-038
Unavailable
34
CLAMP,TUBE
92037-010
Unavailable
35
GROMMET,OVERFLOW
16136-011
Unavailable
36
ADJUSTER,CABLE
16002-016
Unavailable
37
RING-SNAP
92036-018
Unavailable
38
BOOT,STARTER PLUNGER
16036-012
Unavailable
39
CLAMP
92037-1077
Unavailable
40
PIN-COTTER,1.6X15
550D1615
Unavailable
41
KNOB,CARBURETOR
92077-022
Unavailable
