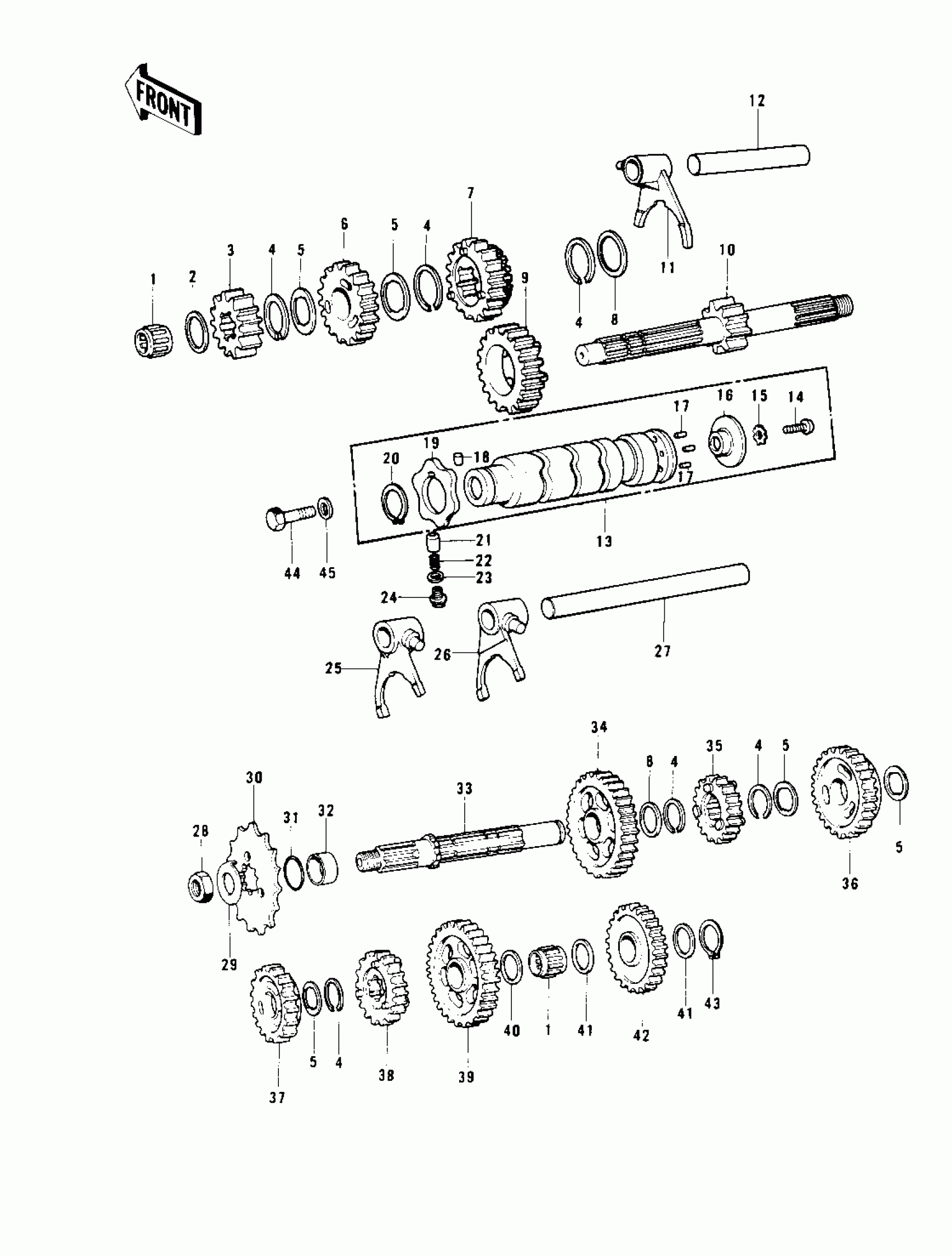

Kawasaki KD125-A5 TRANSMISSION/CHANGE DRUM Diagram
#
1
BEARING-NEEDLE,7E-HK1412
92046-037
Unavailable
2
WASHER,14.3X24X1
92022-272
Unavailable
3
2ND GEAR,DRIVE SHAFT
13130-036
Unavailable
4
RING-SNAP
92033-028
Unavailable
5
WASHER,LOCK
92024-055
Unavailable
6
TOP GEAR,DRIVE SHAFT
13129-1019
Unavailable
6
TOP GEAR,DRIVE,SHAFT
13129-1021
Unavailable
6
TOP GEAR,DRIVE,SHAFT
13129-1021
Unavailable
7
3RD/4TH GEAR,DRIVE SF
13129-1008
Unavailable
7
3RD&4TH GEAR,DRIVE SF
13129-1010
Unavailable
7
3RD&4TH GEAR,DRIVE SF
13129-1010
Unavailable
8
WASHER,18.3X22X0.5
92022-271
Unavailable
9
5TH GEAR,DRIVE SHAFT
13129-1016
Unavailable
9
5TH GEAR,DRIVE SHAFT
13129-1018
Unavailable
9
5TH GEAR,DRIVE SHAFT
13129-1018
Unavailable
10
SHAFT,DRIVE
13127-045
Unavailable
11
FORK,SELECTOR,5TH&TOP
13140-060
Unavailable
12
ROD-SHIFT,10X80
13209-014
Unavailable
13
DRUM ASSY,GEAR SHIFT
13239-018
Unavailable
14
SCREW-PAN-CROS,6X14
220B0614
Unavailable
15
WASHER LOCK 6MM
464H0600
Unavailable
16
PLTE,SHIFT DRUM PIN
13142-017
Unavailable
17
PIN,DOWEL,4X13.8
92042-030
Unavailable
18
ROLLER,4X6
610A0406
Unavailable
19
CAM-CHANGE DRUM
13145-1058
Unavailable
20
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
21
PIN
92043-076
Unavailable
22
SPRING
92081-112
Unavailable
23
GASKET
92065-090
Unavailable
24
BOLT,FLANGED,16X16.5
92001-131
Unavailable
25
FORK,SELECTOR,2ND&3RD
13140-059
Unavailable
26
FORK,SELECTOR,LOW&4TH
13140-058
Unavailable
27
ROD-SHIFT,10X102
49047-1060
Unavailable
28
NUT-HEX-FINE,14MM
315B1400
Unavailable
29
WASHER,
92024-052
Unavailable
30
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
30
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
30
ENGINE SPROCKET,13T
13144-053
Unavailable
30
ENGINE SPROCKET,12T
13144-058
Unavailable
31
RING-O,17.5X1.5
92055-022
Unavailable
32
COLLAR,20X25X12.5
92027-1077
Unavailable
33
SHAFT,OUTPUT
13128-040
Unavailable
34
2ND GEAR,OUTPUT SHAFT
13131-043
Unavailable
35
TOP GEAR,OUTPUT SHAFT
13137-029
Unavailable
35
TOP GEAR,OUTPUT SHAFT
13137-043
Unavailable
36
3RD GEAR,OUTPUT SHAFT
13129-1011
Unavailable
36
3RD GEAR,OUTPUT SHAFT
13129-1011
Unavailable
37
4TH GEAR OUTPUT SHAFT
13129-1013
Unavailable
37
4TH GEAR,OUTPUT SHAFT
13129-1015
Unavailable
37
4TH GEAR,OUTPUT SHAFT
13129-1015
Unavailable
38
5TH GEAR,OUTPUT SHAFT
13248-001
Unavailable
38
5TH GEAR,OUTPUT SHAFT
13248-003
Unavailable
39
LOW GEAR,OUTPUT SHAFT
13129-050
Unavailable
40
WASHER,PLAIN
92022-273
Unavailable
41
WASHER,PLAIN
92022-267
Unavailable
42
IDLE GEAR,KICKSTARTER
13073-011
Unavailable
43
CIRCLIP-TYPE-C,13MM
480J1300
Unavailable
44
BOLT,HEX HEAD,10X14
113G1014
Unavailable
45
GASKET,10.5X16X1
92065-058
Unavailable
