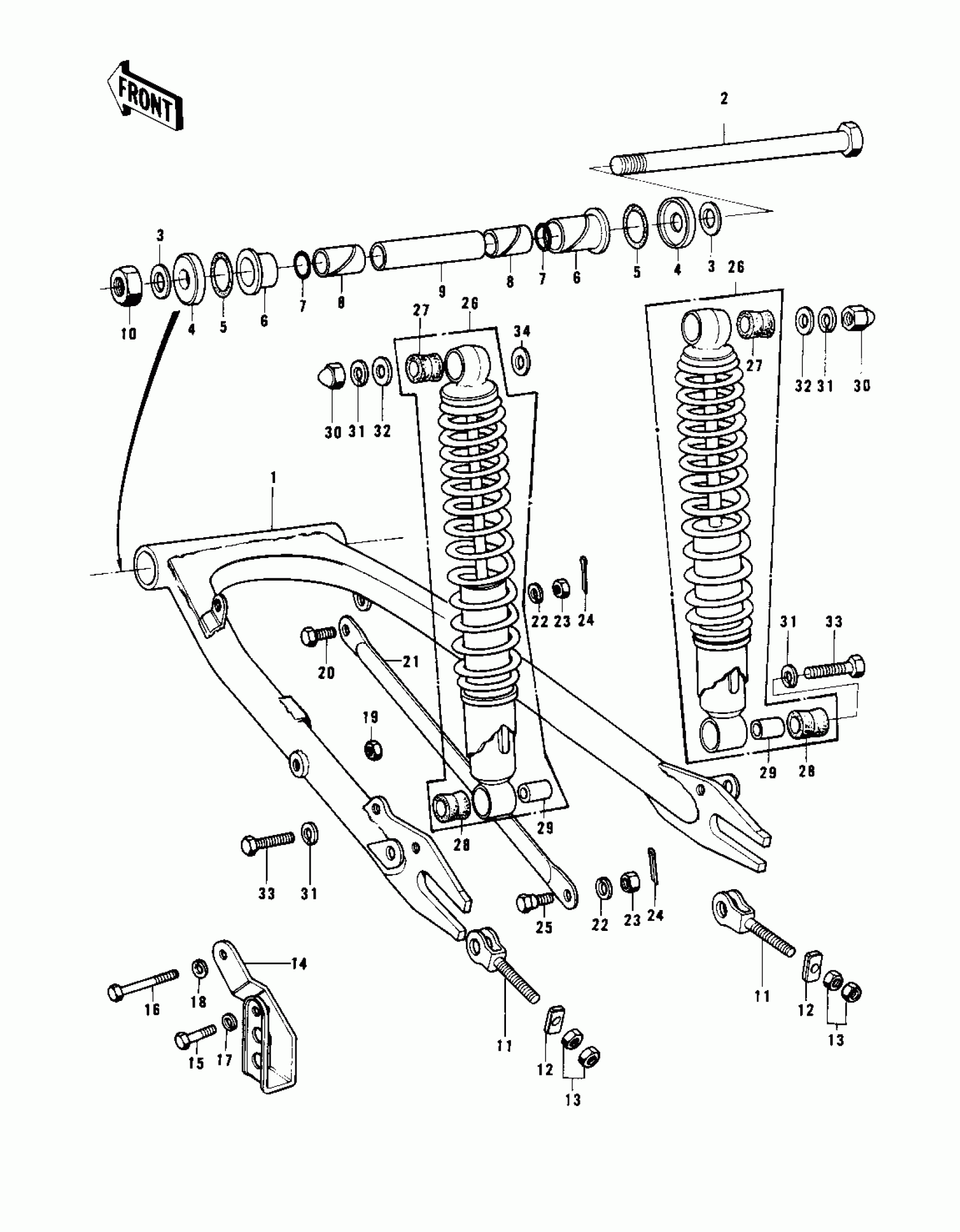

Kawasaki KD125-A5 SWING ARM/SHOCK ABSORBERS Diagram
#
1
ARM,SWING
33001-074
Unavailable
1
SWING ARM
33001-080
Unavailable
2
SHAFT-SWING ARM
33032-034
Unavailable
3
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
4
CAP-SWINGING ARM
33035-005
Unavailable
5
"0" RING,30MM
671B2530
Unavailable
6
BUSHING-SWING ARM
33033-009
Unavailable
7
O RING,16MM
670B2016
Unavailable
7
"0" RING,16MM
92055-001
Unavailable
8
SLEEVE-SWINGING ARM
33034-016
Unavailable
9
COLLAR,SWING ARM,LONG
33036-007
Unavailable
10
NUT-LOCK,12MM
92019-009
Unavailable
11
ADJUSTER,CHAIN
33040-057
Unavailable
11
ADJUSTER,CHAIN
33040-073
Unavailable
12
PLATE,CHAIN ADJUSTER
33041-002
Unavailable
12
PLATE,CHAIN ADJUSTER
33041-005
Unavailable
13
NUT,8MM
311B0800
Unavailable
14
GUARD,CHAIN
55020-016
Unavailable
15
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
16
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
17
WASHER SPRING 8MM
461F0800
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
NUT-HEX-FINE,10MM
314B1000
Unavailable
20
BOLT,HEX HEAD,AX24
92003-143
Unavailable
21
TORQUE LINK,REAR BRK
43007-039
Unavailable
22
WASHER SPRING 8MM
461F0800
Unavailable
23
NUT,8MM
320B0800
Unavailable
24
PIN-COTTER,2.0X20
550D2020
Unavailable
25
BOLT,RR TORQUE LINK
92003-144
Unavailable
26
SHOCK ABSBR RR
45014-113
Unavailable
26
SHOCK ABSBR RR
45014-1017
Unavailable
27
BUSH A-SHCK ABS RUBER
45017-010
Unavailable
28
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
29
COLLAR,SHOCKABSORBER
45016-003
Unavailable
30
NUT,CAP,10MM
92020-003
Unavailable
31
WASHER SPRING 10MM
461F1000
Unavailable
32
WASHER,10.5X26X2.3
92022-044
Unavailable
33
BOLT HEX HEAD 10X35
113N1035
Unavailable
34
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
