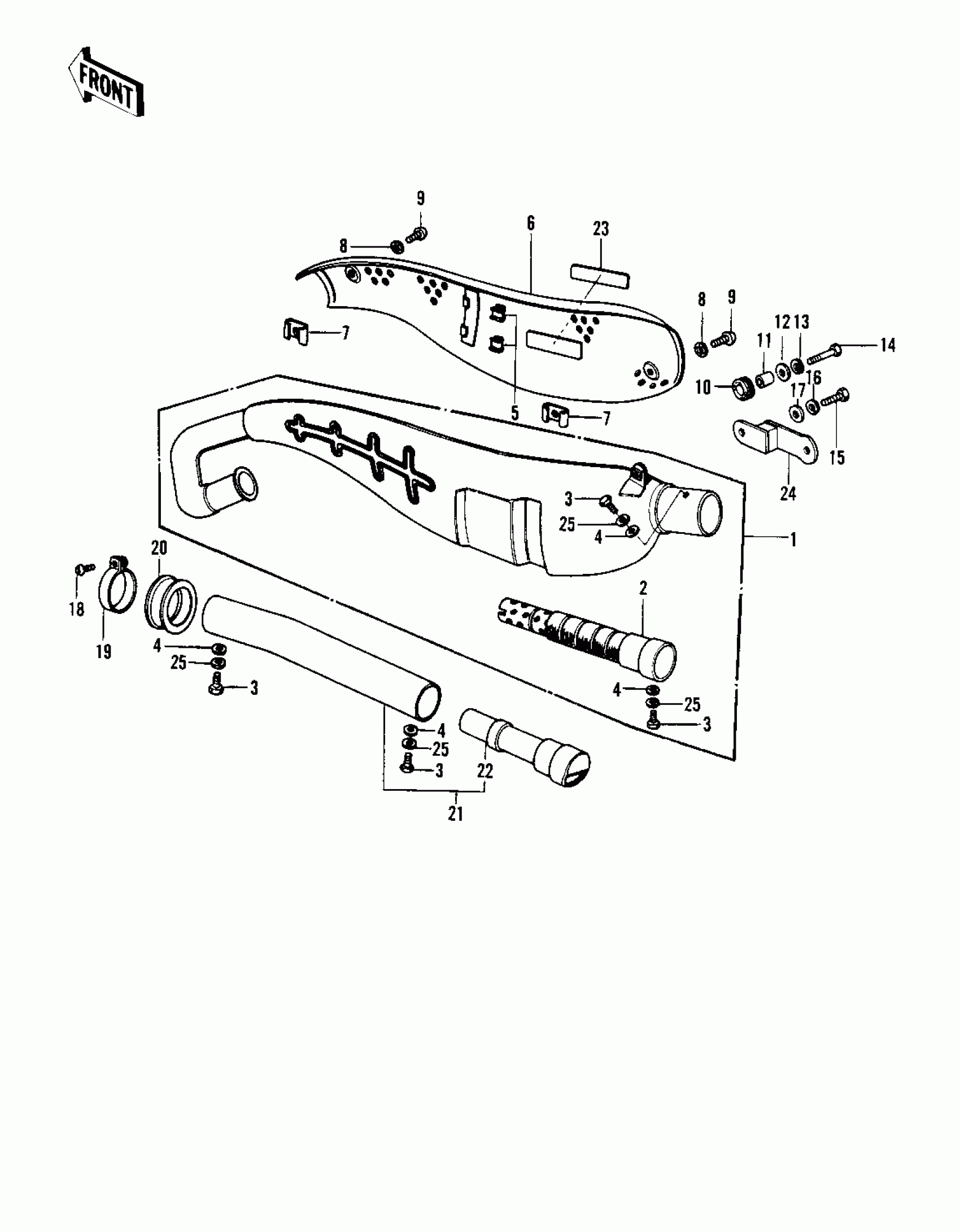

Kawasaki KD125-A5 MUFFLER Diagram
#
Description
Price
1
MUFFLER ASSY
18001-154
Unavailable
1
MUFFLER ASSY
18001-154
Unavailable
2
BAFFLE TUBE
18033-077
Unavailable
3
BOLT-UPSET,6X12
112G0612
Unavailable
4
WASHER-PLAIN
92022-183
Unavailable
4
WASHER OIL PUMP BANJO
92022-077
Unavailable
5
INSULATOR
18065-007
Unavailable
6
COVER,MUFFLER
18064-016
Unavailable
6
COVER,MUFFLER
18064-016
Unavailable
7
INSULATOR,HEAT
18065-010
Unavailable
8
WASHER LOCK 6MM
463H0600
Unavailable
9
SCREW PAN HEAD 6X12
220B0612
Unavailable
10
DAMPER RUBBER-MUFFLER
18063-005
Unavailable
11
COLLAR
92027-102
Unavailable
12
WASHER,8X26X2.3
92022-1564
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
BOLT-SMALL-UPSET,8X30
115G0830
Unavailable
15
BOLT-UPSET,6X16
112G0616
Unavailable
15
BOLT,HEX HEAD,6X14
92001-121
Unavailable
16
WASHER SPRING 6MM
461F0600
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
17
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
18
SCREW,PAN HEAD,5X30
92011-032
Unavailable
19
CLAMP,SPARK ARRESTOR
92037-122
Unavailable
20
CONNECTOR,BAFFLETUBE
92093-1042
Unavailable
21
ARRESTER,SPARK
18077-001
Unavailable
22
BAFFLE TUBE,ARESTOR
18033-086
Unavailable
23
EMBLEM,SIDE COVER
56018-219
Unavailable
23
MARK,MUFFLER COVER
56018-1037
Unavailable
24
BRACKET,MUFFLER
18061-046
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
