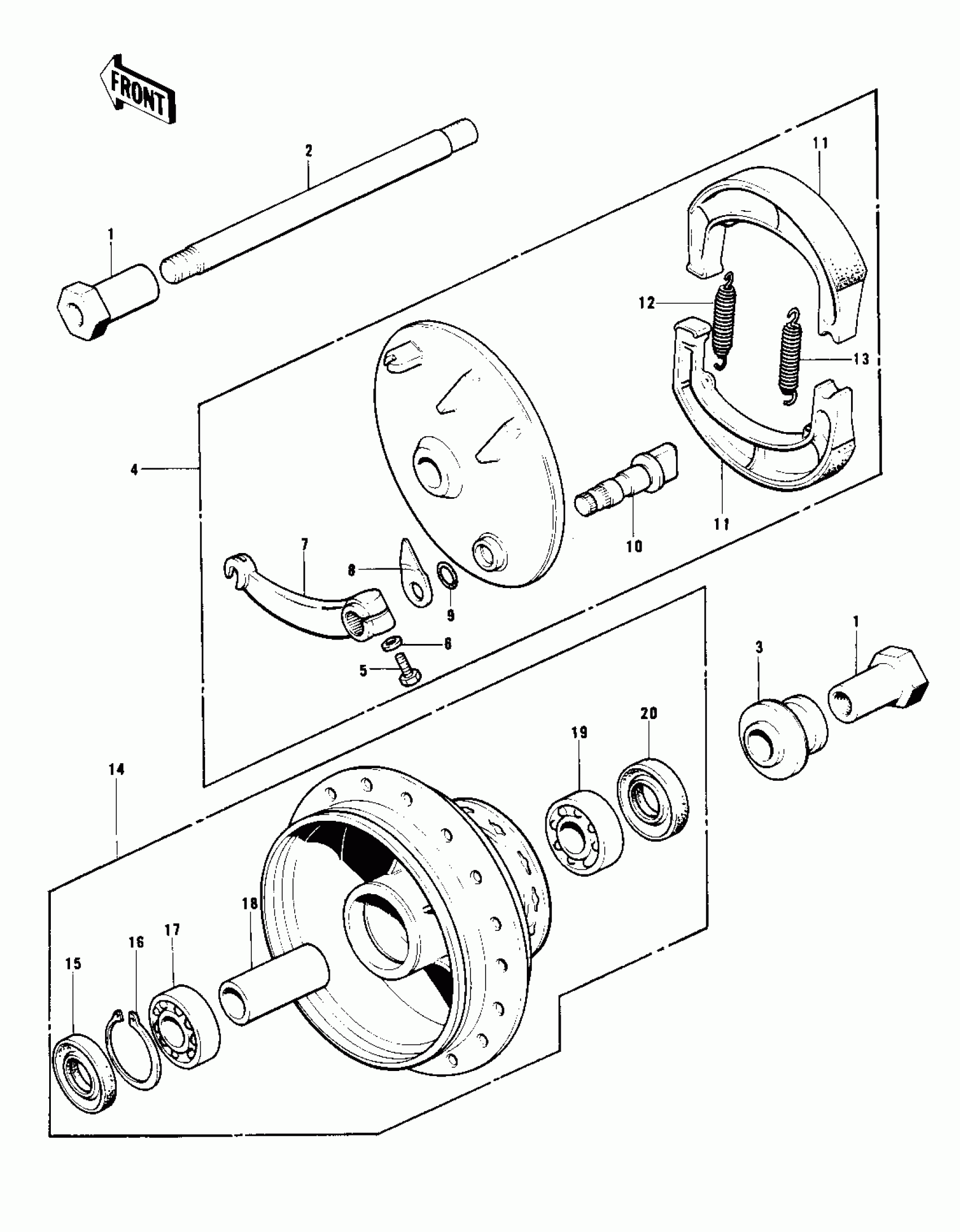

Kawasaki KD125-A5 FRONT HUB/BRAKE Diagram

#

Description

Price

1

COLLAR,FRONT AXLE

41069-024

Unavailable

2

AXLE,FRONT

41068-043

Unavailable

3

COLLAR,FRONT AXLE

41069-025

Unavailable

4

PANEL ASY,FR BK,BUFF

41035-049-80

Unavailable

4

PANEL-ASY,FR BRK BUFF

41035-076-80

Unavailable

5

BOLT 6X22

112B0622

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

7

LEVER,FRNT BRAKE CAM

41053-020

Unavailable

8

INDICATOR,BRAKE SHOE

41085-002

Unavailable

9

RING-O,BRAKE CAM

92055-004

Unavailable

10

CAM SHAFT,FRONT BRAKE

41050-012

Unavailable

11

SHOE,BRAKE

41048-015

Unavailable

12

SPRING,BRAKE SHOE

92081-1766

Unavailable

13

SPRING,BRAKE SHOE

92081-1550

Unavailable

13

SPRING,BRAKE SHOE

92081-1550

Unavailable

14

DRUM-ASSY,FR BRK,BUFF

41034-037-80

Unavailable

15

OIL SEAL,FR BK DRUM

92050-059

Unavailable

16

CIRCLIP-TYPE-C,37MM

481J3700

Unavailable

17

BEARING BALL #6301

601B6301

Unavailable

18

SPACER,FR HUB BEARING

41039-025

Unavailable

19

BEARING-BALL,#6201C3

601B6201

Unavailable

20

OIL SEAL

654A193208

Unavailable
