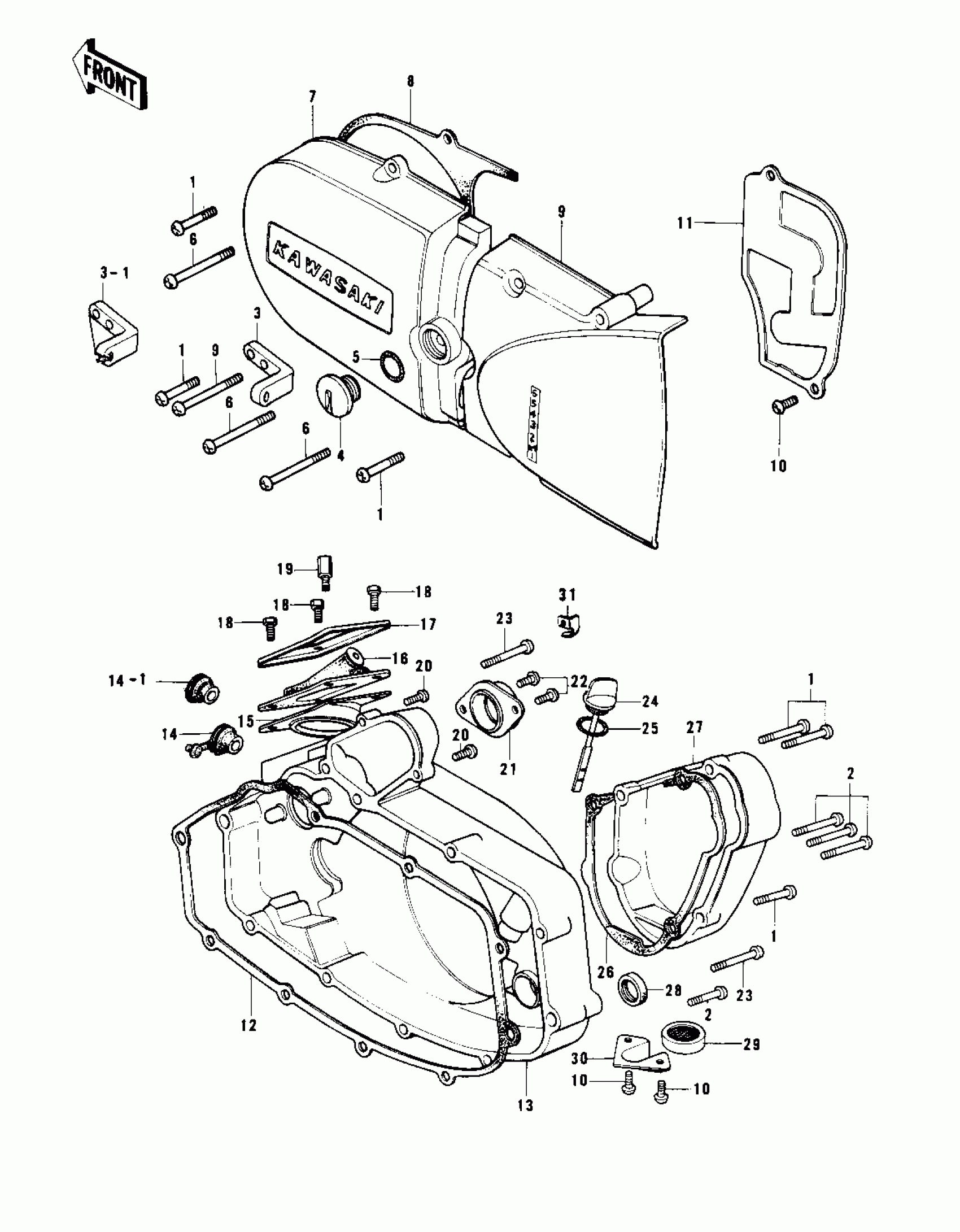

Kawasaki KD125-A5 ENGINE COVERS Diagram
#
1
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
1
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
2
SCREW PAN HEAD 6X30
220B0630
Unavailable
3
HOLDER,WIRE GUIDE
14044-012
Unavailable
3-1
HOLDER,WIRE GUIDE
14044-012
Unavailable
4
PLUG,L.H ENG COVER
92067-017
Unavailable
5
O RING,16MM
670B2016
Unavailable
6
SCREW PAN HEAD 6X35
220B0635
Unavailable
7
COVER,L.H.ENGINE
14031-1019-2H
Unavailable
7
COVER,L.H.ENGINE
14031-1019-2H
Unavailable
8
GASKET,L.H ENG COVER
14045-017
Unavailable
9
COVER,CHN CASE,BARREL
14026-020-2H
Unavailable
9
COVER,CHAIN CASE
14026-1007-2H
Unavailable
9
COVER,CHAIN CASE
14026-1007-2H
Unavailable
10
SCREW PAN HEAD 6X12
220B0612
Unavailable
11
COVER,OIL PUMP
14030-060
Unavailable
12
GASKET,R.H ENG COVER
14046-029
Unavailable
13
COVER,R.H ENGINE,BUFF
14032-123-2H
Unavailable
13
COVER,R.H ENG,BARREL
14032-120-2H
Unavailable
13
COVER,R.H ENG,BARREL
14032-120-2H
Unavailable
13
COVER,R.H,ENGINE
14032-1010-2H
Unavailable
14
GROMMET,R.H ENG COV
92071-076
Unavailable
14-1
CAP,RUBBER
14039-001
Unavailable
15
CAP,CARBURETOR
14038-039
Unavailable
16
CAP,CARBURETOR
14038-042
Unavailable
17
HOLDER,CARBRETOR CAP
14065-007
Unavailable
18
BOLT-UPSET
112G0618
Unavailable
19
BOLT,CARBURETOR CAP
92001-130
Unavailable
20
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
20
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
21
HOLDER,CARBURETOR
16065-033
Unavailable
22
SCREW PAN HEAD 6X12
220B0612
Unavailable
23
SCREW PAN HEAD 6X45
220B0645
Unavailable
24
PLUG,OIL FILLER
16115-020
Unavailable
25
O RING,20MM
670B2020
Unavailable
26
GASKET,CARB COVER
14048-005
Unavailable
26
GASKET,CARBURETOR COV
11009-1277
Unavailable
27
COVER,CARB.BARREL
14030-1006-2H
Unavailable
27
COVER,CARBURETOR,BARL
14030-071-2H
Unavailable
27
COVER,CARBURETOR,BARL
14030-071-2H
Unavailable
28
SEAL-OIL,SB16244
92049-002
Unavailable
29
PLUG,25X12
16116-006
Unavailable
30
COVER,FUEL DRAIN
14076-006
Unavailable
31
GUIDE,CABLE
54030-012
Unavailable
