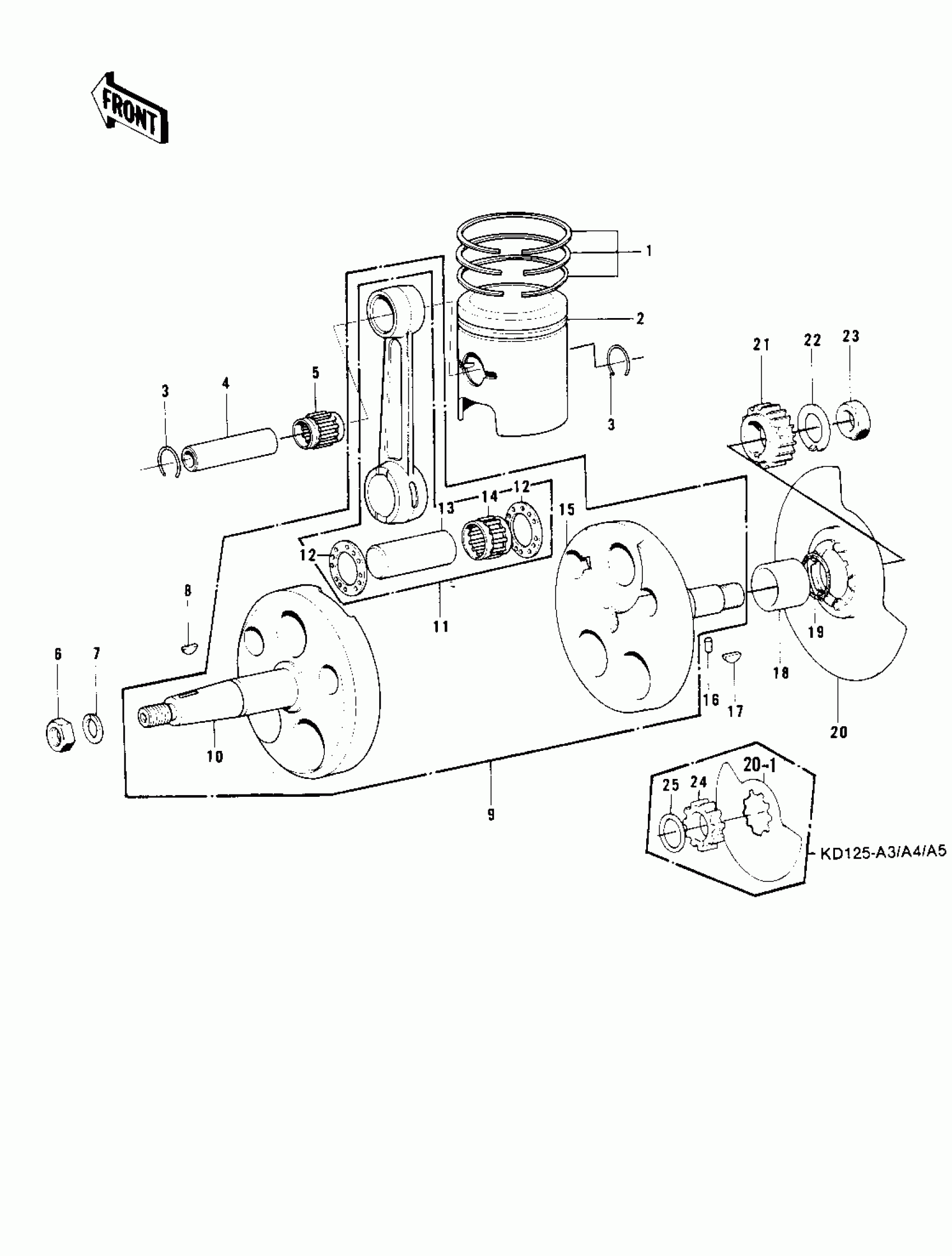

Kawasaki KD125-A5 CRANKSHAFT/PISTON/ROTARY VALVE Diagram
#
Description
Price
1
RING SET,STD
13008-050
Unavailable
1
RING SET,0.020" O.S
13025-054
Unavailable
1
RING SET,0.040" 0.S
13024-055
Unavailable
2
PISTON,STD
13001-072
Unavailable
2
PISTON,0.020" O.S
13029-068
Unavailable
2
PISTON,0.040" O.S
13027-062
Unavailable
3
RING-SNAP,PISTON PIN
92036-003
Unavailable
4
PIN-PISTON
13002-1002
Unavailable
4
PIN-PISTON
13002-1002
Unavailable
5
BRG,N,UR14/20AP-1
13033-035
Unavailable
6
NUT-HEX-FINE,10MM
314B1000
Unavailable
7
WASHER SPRING 10MM
461F1000
Unavailable
8
KEY-WOODRUFF
510A3200
Unavailable
9
CRANK AND CONROD ASSY
13031-1003
Unavailable
10
CRANKSHAFT,L.H
13037-059
Unavailable
11
CONNECTING ROD SET
13044-019
Unavailable
12
SHIM,20X34.5X1.0
92025-005
Unavailable
13
CRANK PIN
13035-033
Unavailable
14
BRG,NEEDLE,KT202715EG
13034-1001
Unavailable
15
CRANKSHAFT,R.H.
13037-1084
Unavailable
16
ROLLER,4X10
610A0410
Unavailable
17
KEY,WOODRUFF
92038-003
Unavailable
18
COLLAR,R.H CRANKSHAFT
92027-220
Unavailable
18
COLLAR,20X25X12.5
92027-1077
Unavailable
19
O RING,16MM
670B2016
Unavailable
20
VALVE,ROTARY DISC
12001-025
Unavailable
20-1
VALVE,ROTARY DISC
12002-029
Unavailable
21
GEAR,PRIMARY 22T
13097-1040
Unavailable
22
WASHER,CLAW,12.5X25X0.8
92024-003
Unavailable
23
NUT,12MM
92015-006
Unavailable
24
COLLAR,ROTARY VALVE
92027-1245
Unavailable
24
COLLAR,ROTRY DSC VALV
92027-1170
Unavailable
25
WASHER,BALANCER
92026-131
Unavailable
