1979 Kawasaki KD125-A5 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

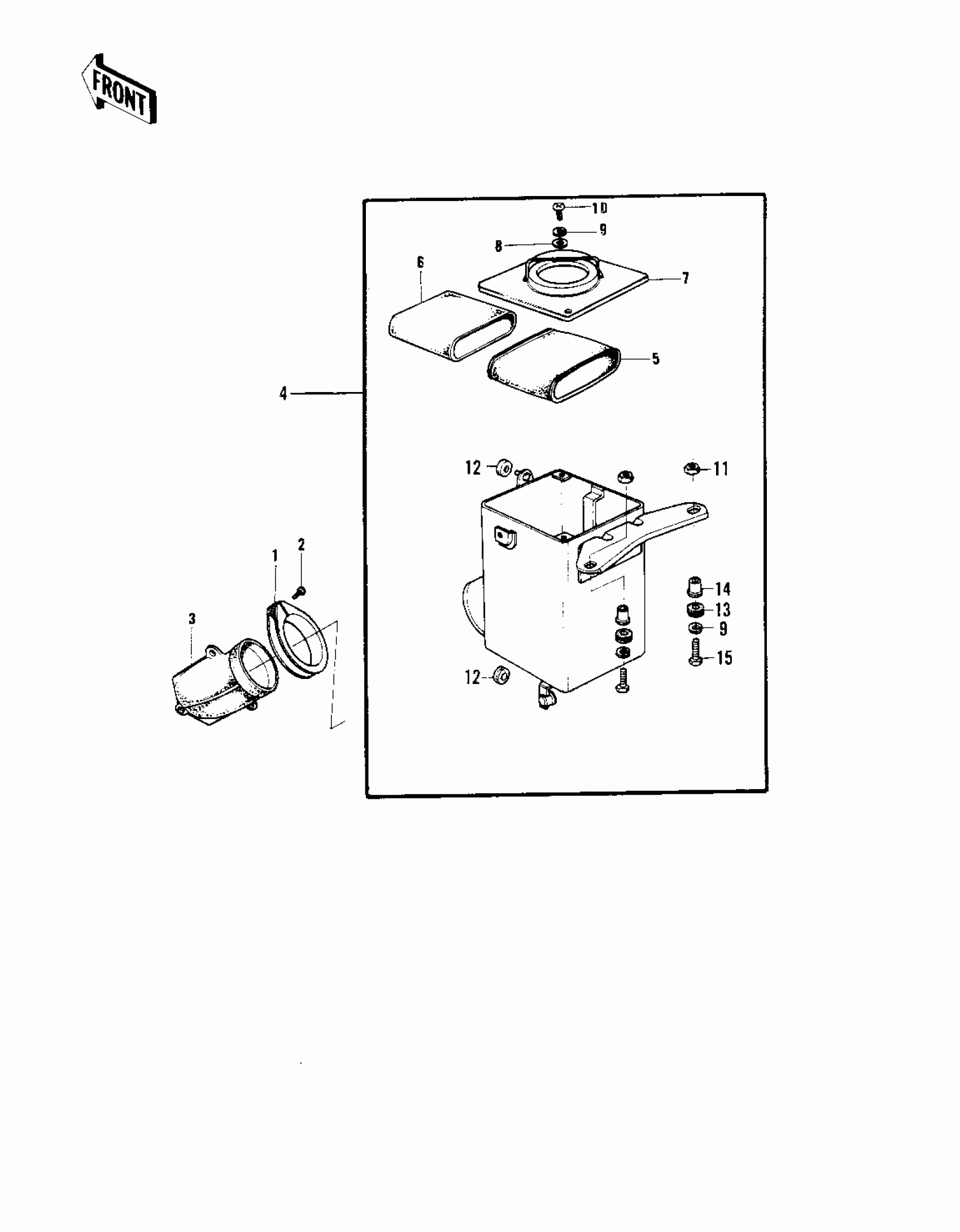

1979 Kawasaki KD125-A5 Air Cleaner Diagram

#

Description
Price
Status
Order Qty

1

CLAMP,AIR CLEANER

92037-129

$15.76

In stock

2

$4.75

In stock

3

CONNECTOR,AIR CLEANER

14073-1004

Out of stock

3

CONNECTOR,AIR CLEANER

14073-1004

Out of stock

4

AIR CLEANER ASSY,BLK

11010-083-21

Out of stock

5

HOLDER,CLENER ELEMENT

11014-011

Out of stock

6

ELEMENT,AIR CLNR

11013-1033

Out of stock

7

CAP,AIR CLEANER,BLACK

11012-039-21

Out of stock

8

$1.19

In stock

9

WASHER SPRING 6MM

461F0600

Out of stock

10

SCREW PAN HEAD 6X12

220B0612

Out of stock

11

NUT 6MM

311B0600

Out of stock

12

$3.92

In stock

13

DAMPER RUBBER

92075-051

$2.34

In stock

14

COLLAR

92027-153

$4.93

In stock

15

BOLT-UPSET,6X16

112G0616

Out of stock
