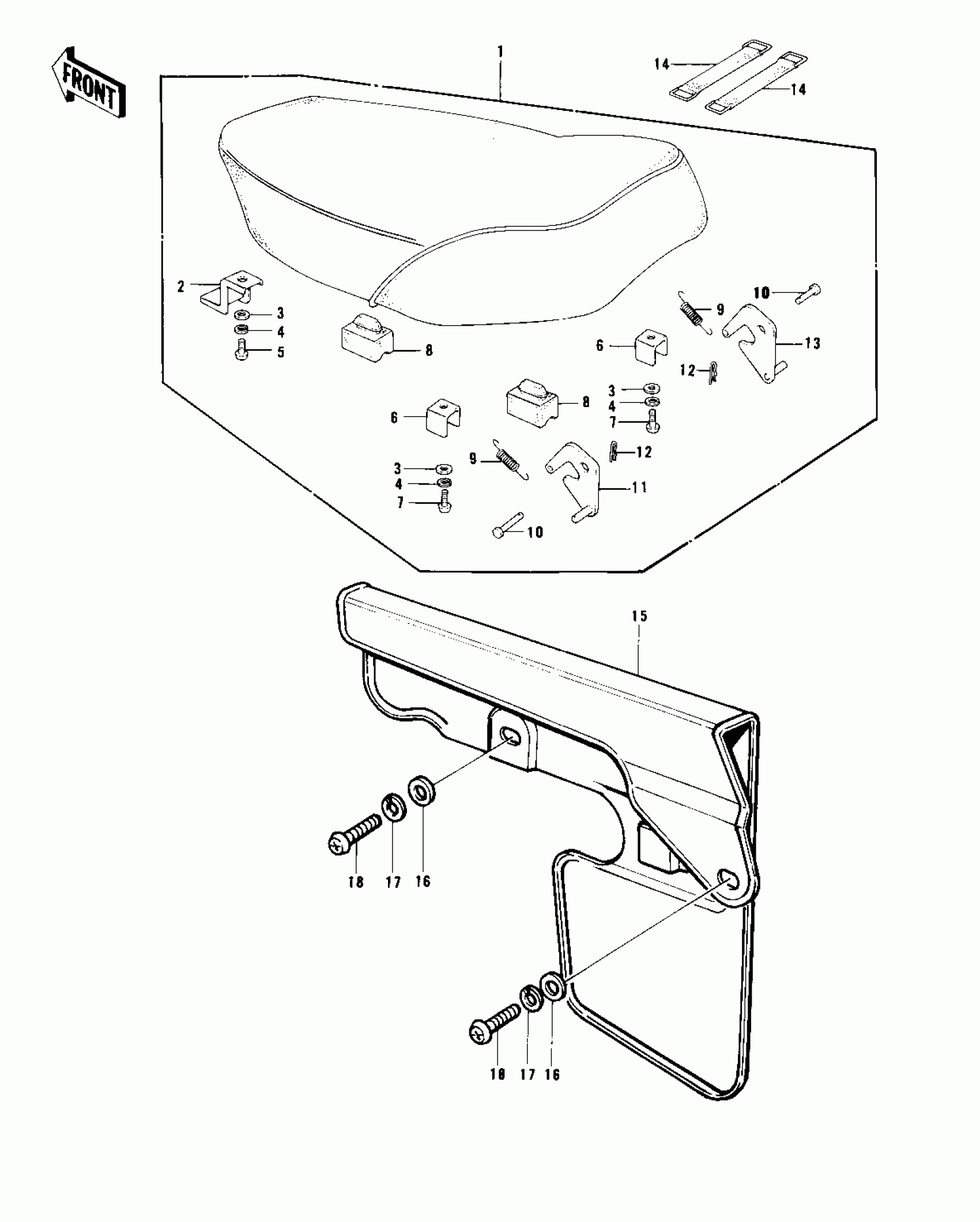

Kawasaki KD100-M4 SEAT/CHAIN COVER Diagram

#

Description

Price

1

SEAT-ASSY

53001-1018

Unavailable

1

SEAT-ASSY

53001-1027

Unavailable

2

BRACKET,SEAT

53032-004

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

Unavailable

6

SPRING,SEAT HOOK

53012-012

Unavailable

7

SCREW PAN HEAD 6X12

220B0612

Unavailable

8

DAMPER

92075-099

Unavailable

9

SPRING,HOOK

53012-013

Unavailable

10

PIN DUAL SEAT PIVOT

53011-001

Unavailable

11

HOOK,L.H SEAT

53008-031

Unavailable

12

COTTER PIN

92041-003

Unavailable

13

HOOK,R.H SEAT

53008-032

Unavailable

14

BAND,L=50

92072-066

Unavailable

15

CASE-CHAIN

36014-1024

Unavailable

16

WASHER PLAIN 6MM

411B0600

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

SCREW PAN HEAD 6X12

220B0612

Unavailable
