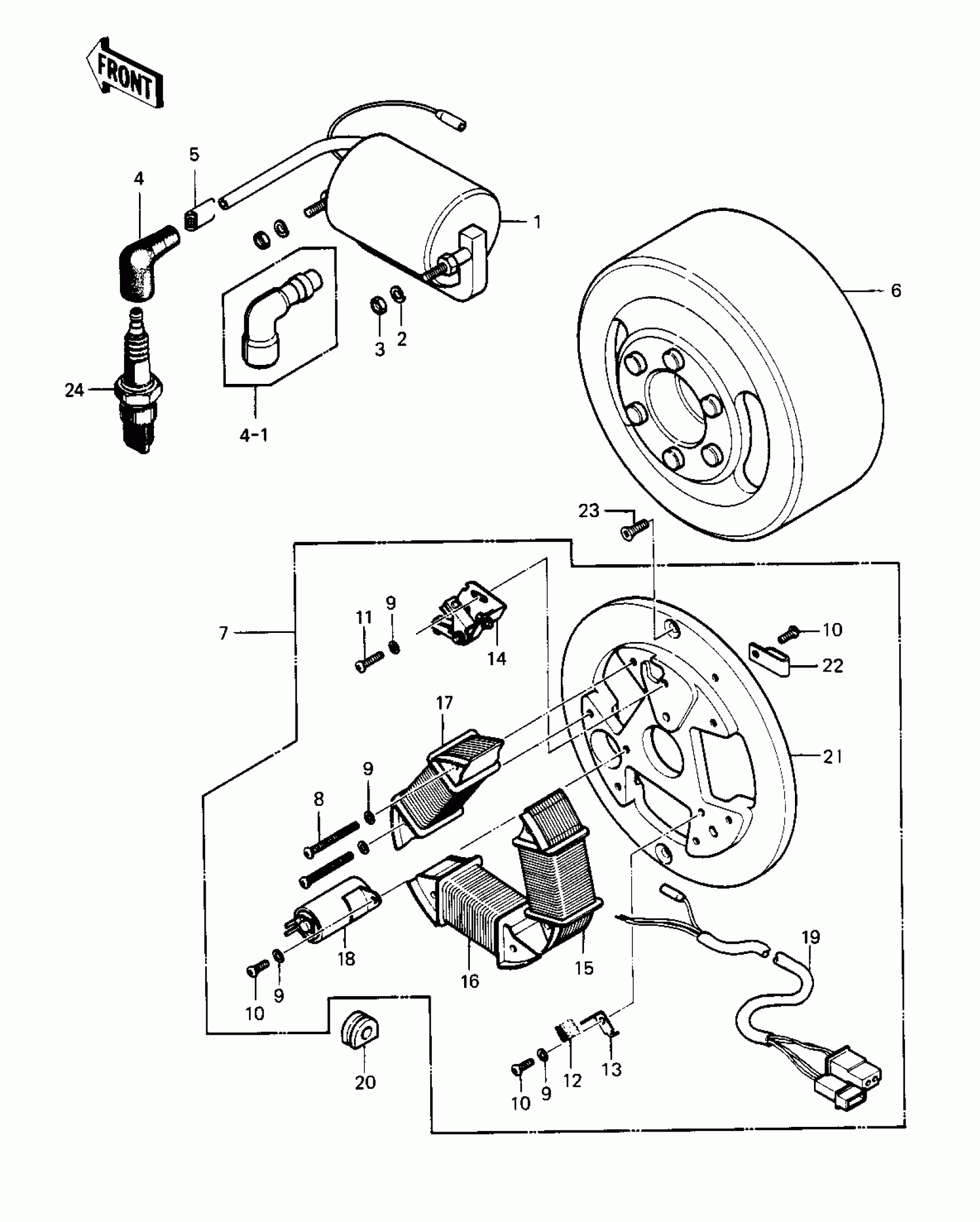

Kawasaki KD100-M4 IGNITION Diagram

#

Description

Price

1

COIL,IGNITION

21121-1047

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

NUT 6MM

311B0600

Unavailable

3

NUT,LOCK,6MM

92019-008

Unavailable

4

CAP-SPARK PLUG

21130-009

Unavailable

4-1

CAP-ASSY-PLUG

21160-005

Unavailable

5

TERMINAL,SPARK PLUG CAP

92101-001

Unavailable

6

FLYWHEEL

21050-017

Unavailable

7

STATOR ASSY

21003-027

Unavailable

8

SCREW-PAN-CROS

220E0430

Unavailable

9

WASHER SPRING 4MM

461F0400

Unavailable

10

SCREW PAN HEAD 4X6

220B0406

Unavailable

11

SCREW-PAN-CRSOSS,4X1

220B0412

Unavailable

12

BRUSH,OIL

21019-005

Unavailable

13

HOLDER,OIL FELT

21038-002

Unavailable

14

BREAKER,CONTACT

21008-006

Unavailable

15

COIL A,LIGHTING

21047-022

Unavailable

16

COIL A LIGHTING

21047-019

Unavailable

17

COIL-EXCITING

21049-1004

Unavailable

17

COIL-EXCITING

21049-1004

Unavailable

18

CONDENSER

21013-006

Unavailable

19

WIRING HARNESS,MAGNT

21029-031

Unavailable

20

GROMMET

21017-002

Unavailable

21

PLATE-COIL,MAGNETO

21048-1002

Unavailable

22

CLAMP,WIRING HARNESS

21037-002

Unavailable

23

SCREW-CSK-CROS,6X14

221B0614

Unavailable

24

SPARK PLUG B7HS

B7HS

Unavailable
