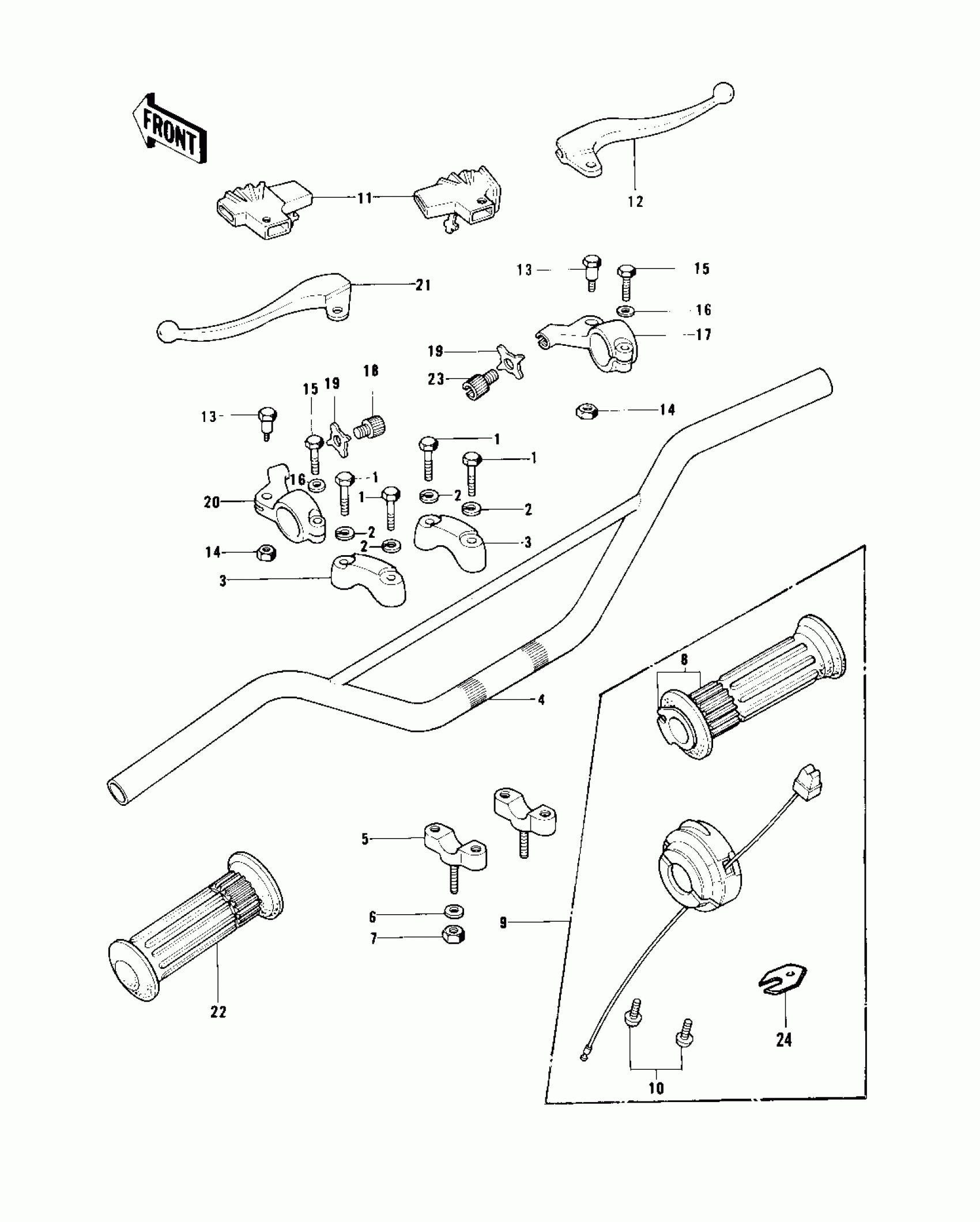

Kawasaki KD100-M4 HANDLEBAR Diagram
#
Description
Price
1
BOLT 8X38
92001-1405
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
HOLDER-HANDLE,UPP
46012-004
Unavailable
4
HANDLEBAR
46004-024
Unavailable
5
HOLDER,HANDLEBAR,BUFF
46012-002-80
Unavailable
6
WASHER SPRING 10MM
461F1000
Unavailable
7
NUT-HEX-FINE,10MM
314B1000
Unavailable
8
GRIP ASSY,THROTTLE
46019-039
Unavailable
9
CASE ASSY,R.H
46018-047
Unavailable
10
SCREW-PAN-CROS,5X25
220B0525
Unavailable
11
BOOT,LEVER HOLDER
49006-1017
Unavailable
12
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
13
BOLT,5X22
92007-046
Unavailable
14
NUT,LOCK,5MM
92019-014
Unavailable
15
BOLT,6X22
110N0622
Unavailable
15
BOLT HEX HEAD 6X25
110N0625
Unavailable
16
WASHER PLAIN 6MM
411B0600
Unavailable
17
HOLDER-FR BRAKE LEVER
46060-006
Unavailable
18
SCREW,CABLE ADJUST,8MM
46055-009
Unavailable
18
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
19
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
20
HOLDER,CLUTCH LEVER
46094-010
Unavailable
20
HOLDER,CLUTCH LEVER,F.BLACK
46094-015-21
Unavailable
21
LEVER-GRIP,CLUTCH
46092-015
Unavailable
22
RUBBER,L.H GRIP
46075-029
Unavailable
23
SCREW,CABLE ADJUST,8MM
46055-009
Unavailable
23
SCREW,CABLE ADJUST
46055-010
Unavailable
24
HOLDER,CONTROL
46037-024
Unavailable
