1979 Kawasaki KD100-M4 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

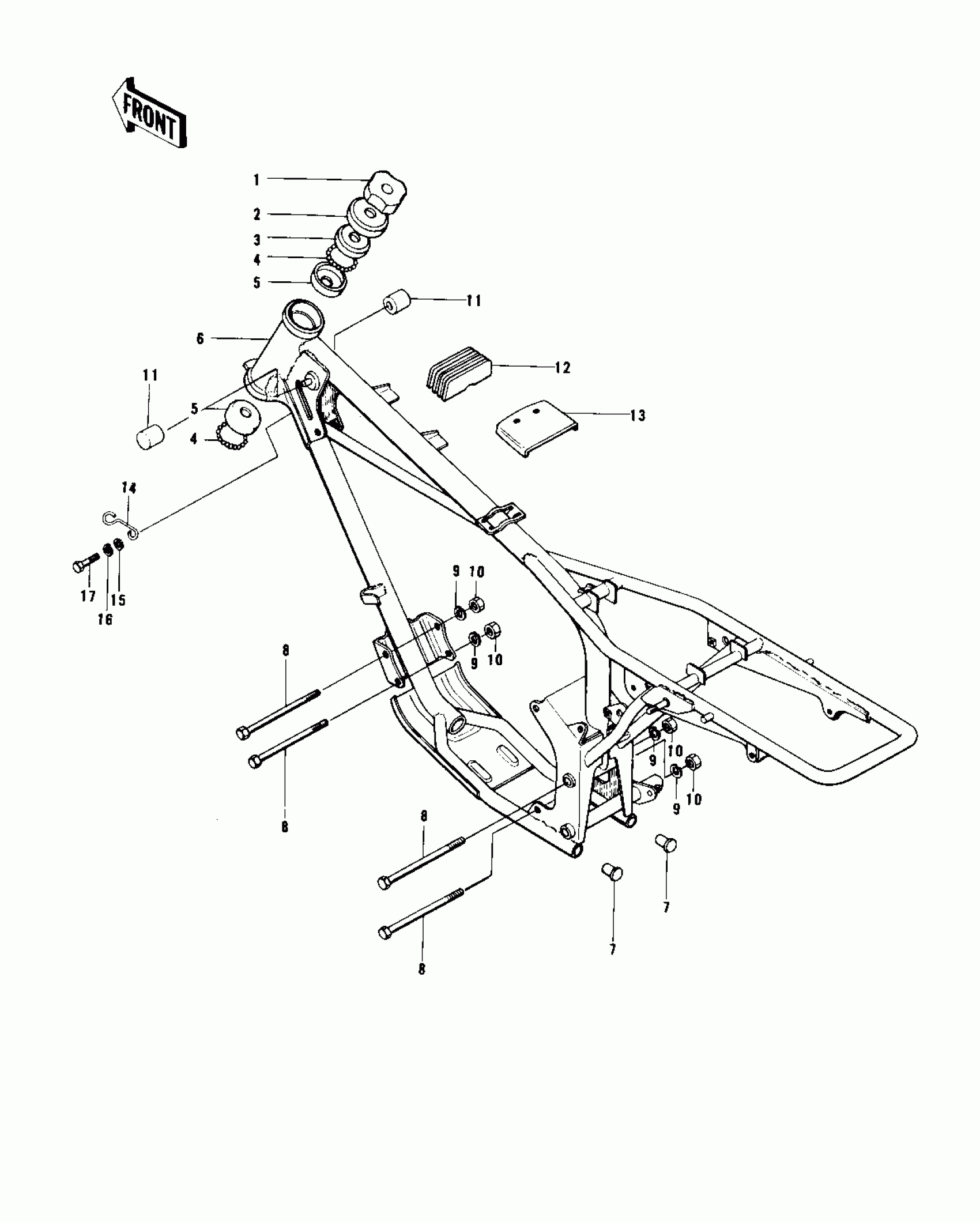

1979 Kawasaki KD100-M4 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

NUT STEERING STEM LCK

92090-006

Out of stock

2

LEVER STARTER

46096-004

Out of stock

3

RACE,UPPER BEARING

92047-005

Out of stock

4

BALL-STEEL,3/16

600A0600

Out of stock

5

RACE,BEARING

92048-004

Out of stock

6

FRAME

32002-110

Out of stock

7

CAP PIPE END

32112-001

Out of stock

8

BOLT,FLANGED,10X115

92001-1603

Out of stock

9

WASHER SPRING 10MM

461F1000

Out of stock

10

NUT-HEX-FINE,10MM

314B1000

Out of stock

11

DAMPER,FUEL TANK

92075-044

Out of stock

12

DAMPER RUBBER,FL TANK

92075-195

Out of stock

13

DAMPER RUBBER,FL TANK

92075-230

Out of stock

14

CLAMP,CABLE

92037-117

Out of stock

15

WASHER PLAIN 6MM

411B0600

Out of stock

16

WASHER SPRING 6MM

461F0600

Out of stock

17

BOLT-UPSET,6X12

112G0612

Out of stock
