1979 Kawasaki KD100-M4 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

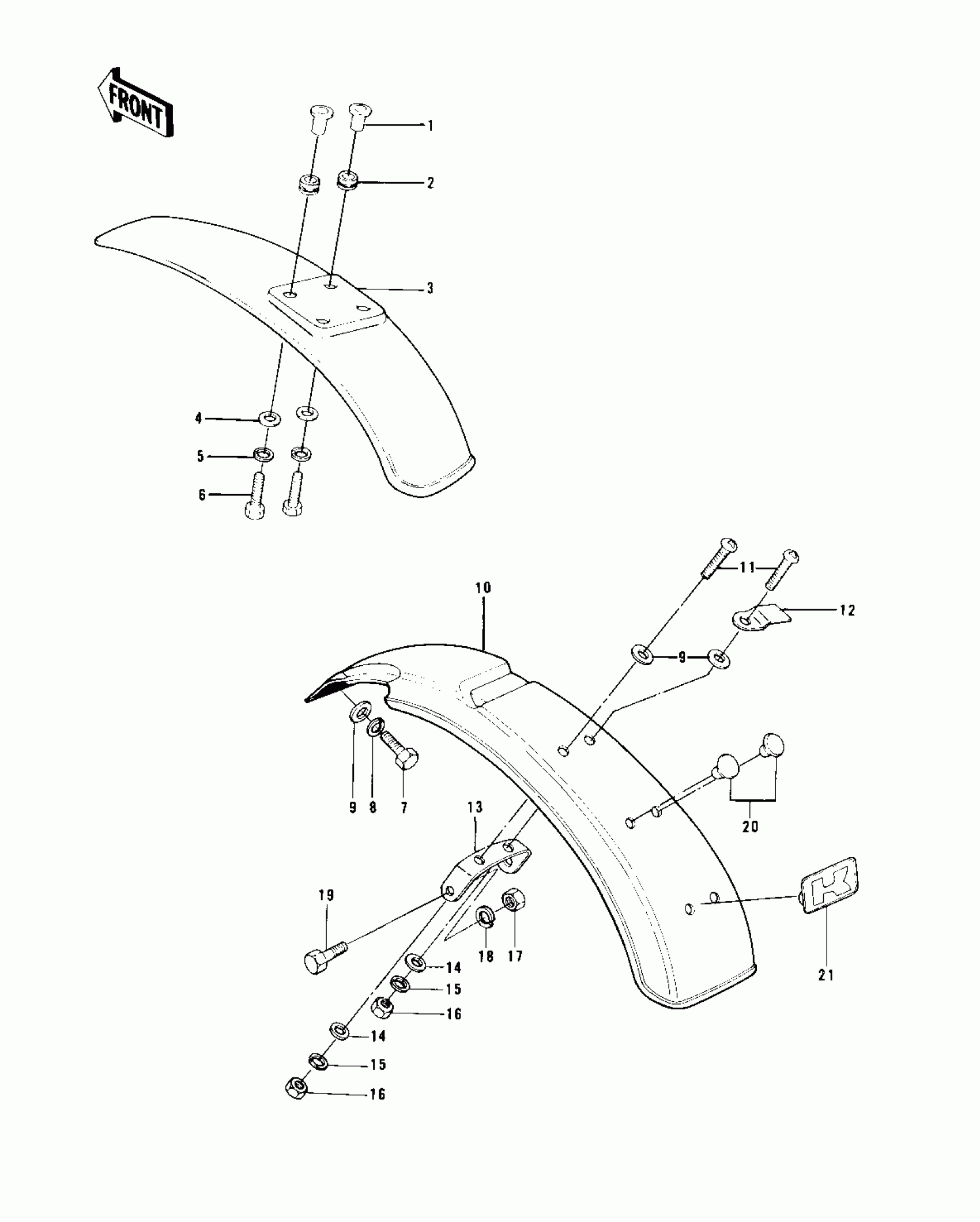

1979 Kawasaki KD100-M4 Fenders Diagram

#

Description
Price
Status
Order Qty

1

COLLAR

92027-153

Out of stock

2

DAMPER RUBBER

92075-103

Out of stock

3

FENDER-FR,BLACK

35004-080-10

Out of stock

3

FENDER-FR,BLACK

35004-109-6Z

Out of stock

3

FENDER-FR,WHITE

35004-109-6V

Out of stock

3

FENDER-FR,TANGERINE

35004-109-6M

Out of stock

3

FENDER-FR,F.RED

35004-109-6L

Out of stock

4

WASHER,6.5X20X1.6

92022-125

Out of stock

5

WASHER SPRING 6MM

461F0600

Out of stock

6

BOLT-UPSET

112G0618

Out of stock

7

BOLT-UPSET 6X14

112B0614

Out of stock

8

WASHER SPRING 6MM

461F0600

Out of stock

9

WASHER,6.5X20X1.6

92022-125

Out of stock

10

FENDER,REAR,BLACK

35022-094-10

Out of stock

10

FENDER-RR,BLACK

35022-162-6Z

Out of stock

10

FENDER-RR,WHITE

35022-162-6V

Out of stock

10

FENDER-RR,TANGERINE

35022-162-6M

Out of stock

10

FENDER-RR,F.RED

35022-162-6L

Out of stock

11

SCREW-PAN-CROS,6X16

220B0616

Out of stock

12

CLAMP CABLE

92037-020

Out of stock

13

BRACKET,REAR FENDER

35025-025

Out of stock

14

WASHER PLAIN 6MM

411B0600

Out of stock

15

WASHER SPRING 6MM

461F0600

Out of stock

16

NUT 6MM

311B0600

Out of stock

17

NUT-HEX-FINE

315B1200

Out of stock

18

WASHER-SPRING,12MM

461F1200

Out of stock

19

BOLT,HEX HEAD,12X26

113B1226A

Out of stock

20

PLUG,RR FENDR RUBBER

92074-034

Out of stock

21

PLUG,RR FENDR RUBBER

92074-033

Out of stock
