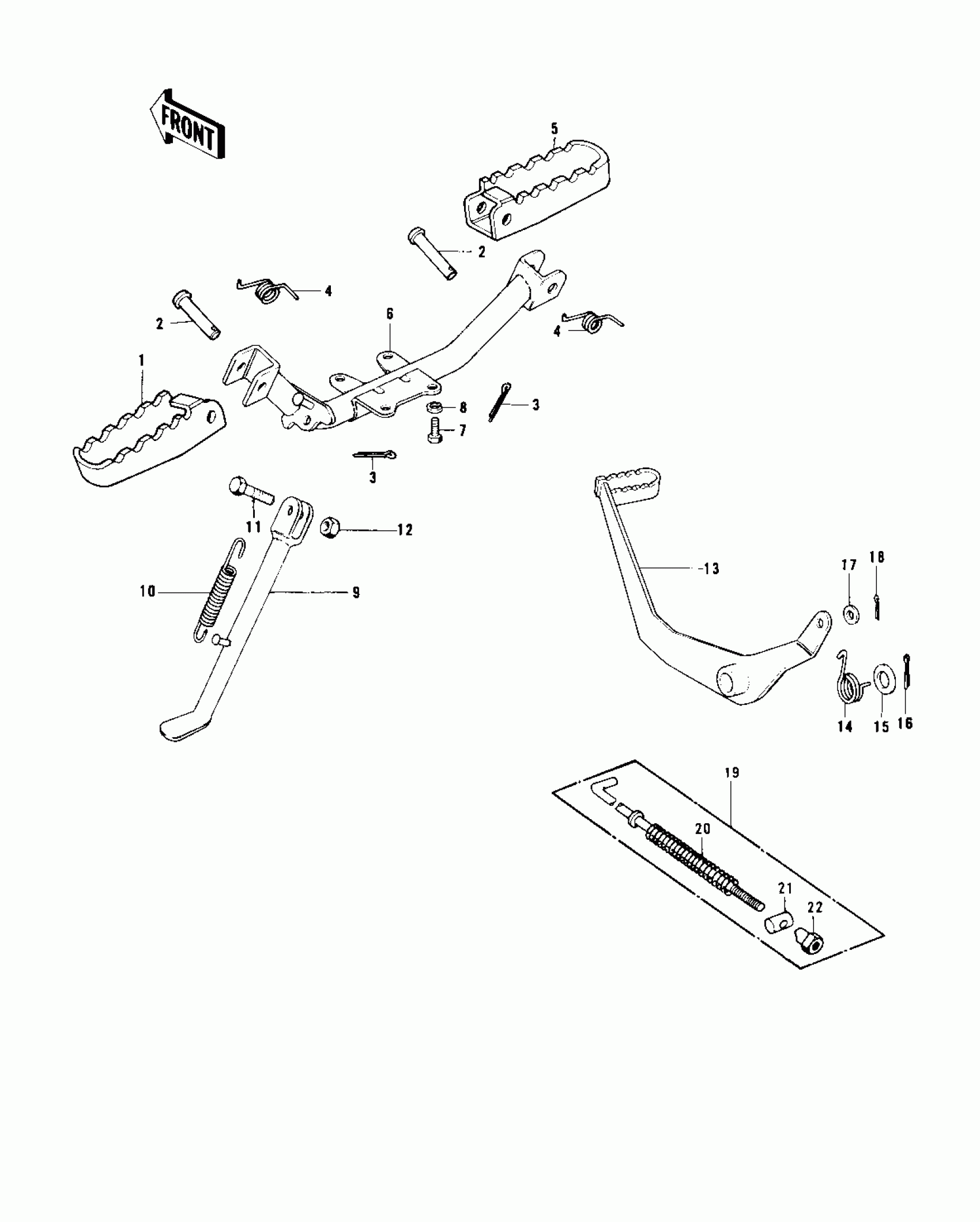

Kawasaki KD100-M4 FOOTRESTS/STAND/BRAKE PEDAL Diagram

#

Description

Price

1

BAR,L.H FOOTREST

34028-024

Unavailable

2

PIN,8X31

92043-080

Unavailable

3

PIN COTTER 2.5X16

550D2516

Unavailable

4

SPRING,FOOTRESTBAR

92083-027

Unavailable

5

BAR,R.H FOOTREST

34028-023

Unavailable

6

BAR,FOOTREST

34002-047

Unavailable

7

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

STAND-SIDE

34024-1013

Unavailable

9

STAND-SIDE

34024-1013

Unavailable

11

BOLT,HEX HEAD,10X25

113G1025

Unavailable

11

BOLT,10X28

113G1028

Unavailable

12

NUT-HEX-FINE,10MM

314B1000

Unavailable

13

PEDAL,BRAKE

43001-062

Unavailable

14

SPRING-BRAKE PEDAL

43005-020

Unavailable

15

WASHER BRAKE PEDAL

92022-085

Unavailable

16

UNAVAILABLE IN PRICE BOOK

530D3030

Unavailable

17

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

18

PIN COTTER 2.0X15

550D2015

Unavailable

19

ROD ASSY,REAR BRAKE

43010-5004

Unavailable

20

SPRING,BRAKE ROD

43012-001

Unavailable

21

PIN,BRAKE ROD

92043-039

Unavailable

22

NUT,BRAKE ROD

92015-042

Unavailable
