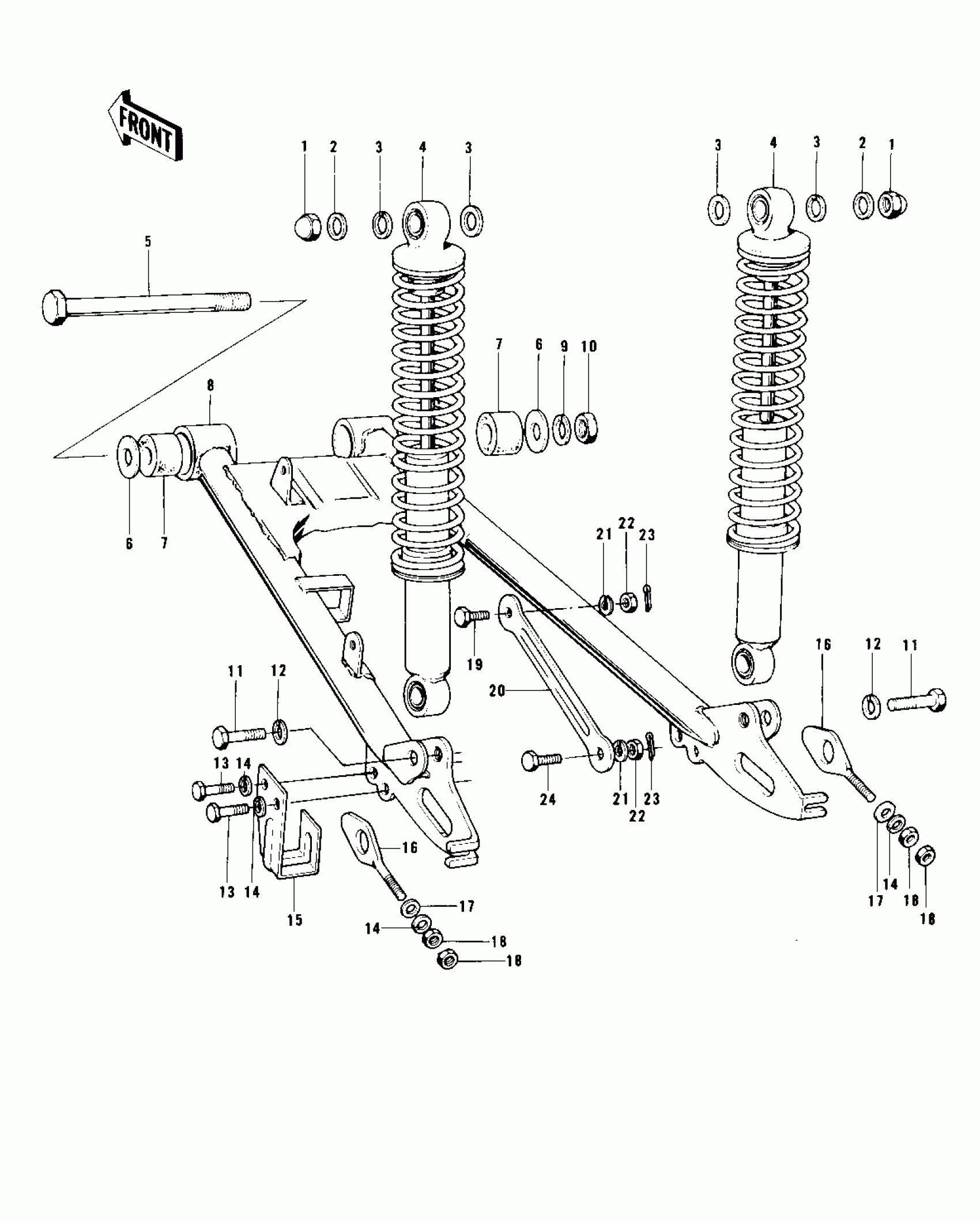

Kawasaki KD100-M4 D-4-SWING ARM/SHOCK ABSORBERS Diagram

#

Description

Price

1

NUT,CAP,12MM

92020-014

Unavailable

2

WASHER-SPRING,12MM

461F1200

Unavailable

3

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

4

SHOCK ABSBR RR

45014-100

Unavailable

4

SHOCK ABSBR RR

45014-1019

Unavailable

5

SHAFT,SWING ARM PIVOT

33032-043

Unavailable

6

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

7

BUSHING-RUBBER

92092-005

Unavailable

8

ARM,SWINGING

33001-055

Unavailable

9

WASHER-SPRING,12MM

461F1200

Unavailable

10

NUT-HEX-FINE

314B1200

Unavailable

11

BOLT HEX HEAD 10X28

113N1028

Unavailable

12

WASHER SPRING 10MM

461F1000

Unavailable

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

GUARD,CHAIN

55020-012

Unavailable

16

ADJUSTER CHAIN

33040-008

Unavailable

17

WASHER PLAIN

92022-024

Unavailable

17

WASHER,6.5X16X2

92022-1565

Unavailable

18

NUT 6MM

311B0600

Unavailable

19

BOLT,10X25

92003-017

Unavailable

20

TORQUE LINK,RR BRAKE

43007-037

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

22

NUT-HEX-FINE,10MM

314B1000

Unavailable

23

PIN COTTER 2.0X15

550D2015

Unavailable

24

BOLT,10X32

92003-003

Unavailable
