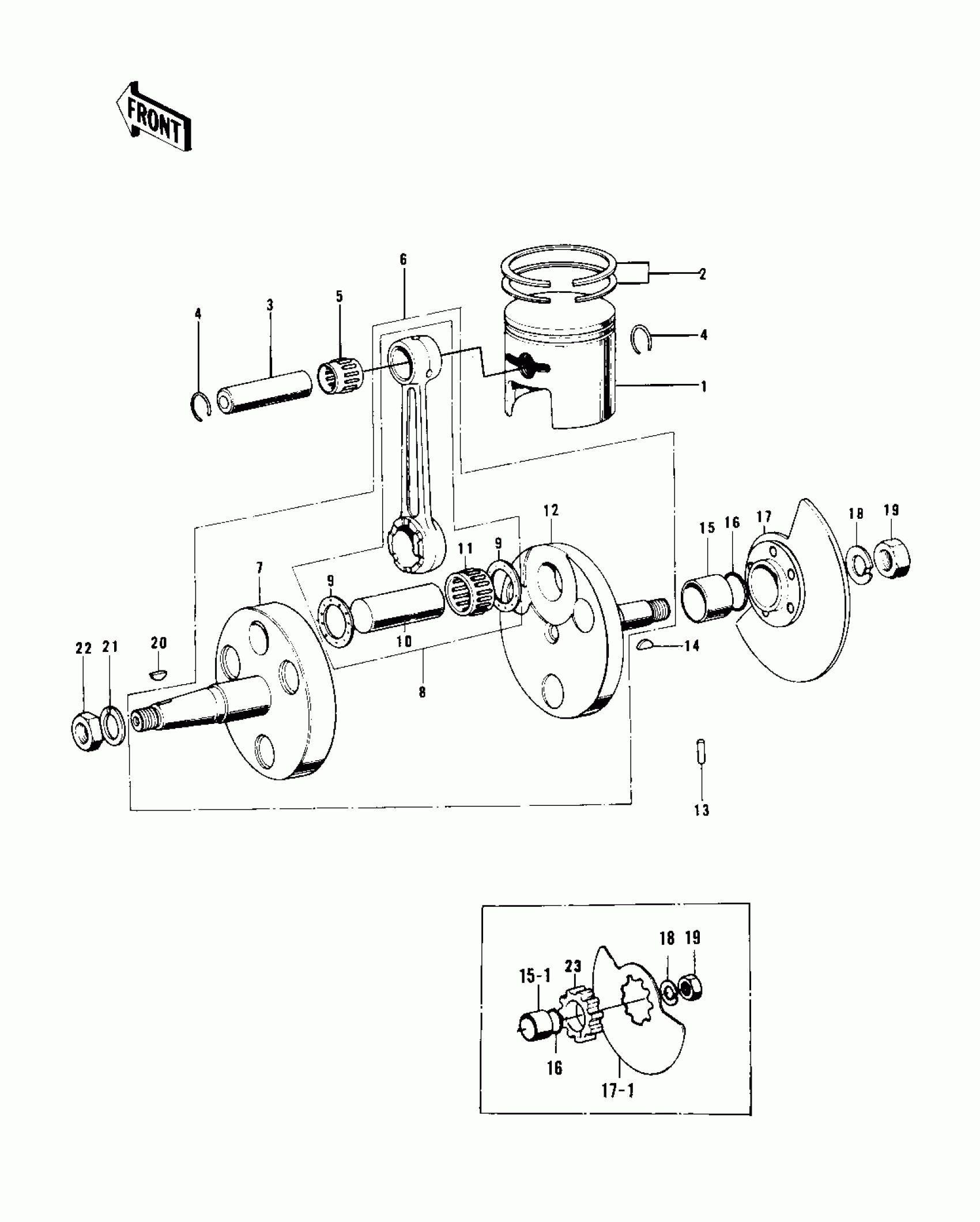

Kawasaki KD100-M4 CRANKSHAFT/PISTON/ROTARY VALVE Diagram
#
Description
Price
1
PISTON-ENGINE,STD
13001-057
Unavailable
1
PISTON.0.020 O.S
13029-059
Unavailable
1
PISTON,0.040 O-S
13027-057
Unavailable
2
RING SET,STD
13008-043
Unavailable
2
RING NET,0.020 O.S
13025-047
Unavailable
2
RING NET,0.040 O.S
13024-050
Unavailable
3
PIN-PISTON
13002-003
Unavailable
4
RING-SNAP,PISTON PIN
92036-003
Unavailable
5
BEARING-NEEDLE,KTV141817
13033-030
Unavailable
6
CRANKSHAFT-COMP
13036-043
Unavailable
7
CRANKSHAFT,LH
13037-1136
Unavailable
8
SET-CONNECTING ROD
13044-5015
Unavailable
9
SHIM,T=1.0
92025-047
Unavailable
10
PIN-CRANK
13035-025
Unavailable
11
BEARING-NEEDLE,KT192814
13034-034
Unavailable
12
CRANKSHAFT,RH
13037-1135
Unavailable
13
ROLLER,4X10
610A0410
Unavailable
14
KEY,WOODRUFF
92038-003
Unavailable
15
COLLAR CRANKSHAFT
92027-022
Unavailable
15-1
COLLAR,20X25X9.5
92027-285
Unavailable
16
O RING,16MM
670B2016
Unavailable
17
VALVE ROTARY DISC
12001-004
Unavailable
17-1
VALVE-ROTARY
12002-030
Unavailable
18
WASHER,CLAW,12.5X25X0.8
92024-003
Unavailable
19
NUT,12MM
92015-006
Unavailable
20
KEY-WOODRUFF
510A3200
Unavailable
21
WASHER SPRING 10MM
461F1000
Unavailable
22
NUT-HEX-FINE,10MM
314B1000
Unavailable
23
COLLAR,ROTARY VALVE
92027-1245
Unavailable
