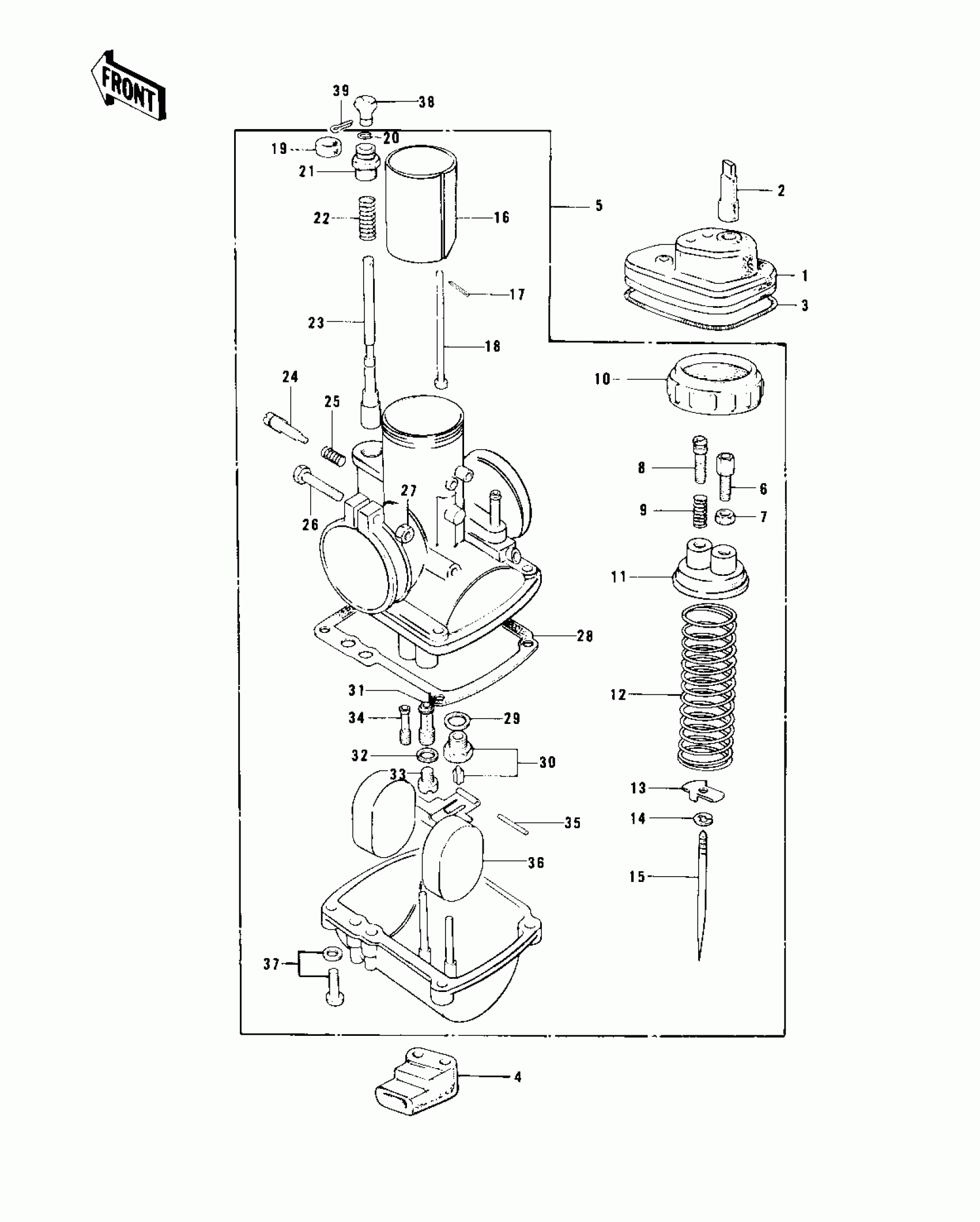

Kawasaki KD100-M4 CARBURETOR Diagram
#
1
BOOT,CARBURETOR
14038-035
Unavailable
2
PLUG,12X40
16147-001
Unavailable
3
SPRING COIL
92081-047
Unavailable
4
GROMMET,OVERFLOW PIPE
16136-007
Unavailable
5
CARBURETOR ASSY
16001-264
Unavailable
6
ADJUSTER-CABLE
16002-017
Unavailable
7
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
8
SCREW-THROTTLE STOP
16021-002
Unavailable
9
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
10
CAP-CHAMBER,MIXING
16004-010
Unavailable
11
TOP-CHAMBER,MIXING
16005-005
Unavailable
12
SPRING,THROTTLE VALVE
16006-013
Unavailable
13
SEAT-SPRING,THROTTLE VALVE
16007-020
Unavailable
14
CLAMP,E-TYPE
16008-010
Unavailable
15
NEEDLE-JET,4EJ7
16009-059
Unavailable
16
VALVE-THROTTLE,CA2.0
16025-057
Unavailable
17
PIN COTTER 1.2X10
550D1210
Unavailable
18
ROD,THROTTLE VLV STP
16024-012
Unavailable
19
BOOT,STARTER PLUNGER
16036-012
Unavailable
20
CLAMP
92037-1077
Unavailable
21
CAP-STARTER PLUNGER
16012-021
Unavailable
22
SPRING,STARTER PLUNGER
16013-010
Unavailable
23
PLUNGER,STARTER
16016-012
Unavailable
24
SCREW-PILOT AIR
16014-002
Unavailable
25
SPRING,PILOT AIR SCREW
16022-007
Unavailable
26
SCREW,CLAMP
16010-004
Unavailable
27
NUT 6MM
311B0600
Unavailable
28
GASKET,FLOAT CHAMBER
16019-021
Unavailable
29
GASKET,FLOAT VALVE SEAT
16029-002
Unavailable
30
VALVE-FLOAT,#2.0
16030-001
Unavailable
31
NEEDLE JET
16017-088
Unavailable
32
WASHER,MAIN JET
16034-001
Unavailable
33
JET-MAIN,#A77.5R
92063-1032
Unavailable
33
JET-MAIN,#75R
92063-109
Unavailable
33
JET-MAIN,#A80R
92063-1030
Unavailable
33
JET-MAIN,#82.5R
92063-124
Unavailable
33
JET-MAIN,#85R
92063-093
Unavailable
34
JET-PILOT,#17.5
92064-020
Unavailable
35
PIN,FLOAT
16032-003
Unavailable
36
FLOAT
16031-015
Unavailable
37
SCREW-FLOAT CHAMBER
16033-012
Unavailable
38
KNOB,CARBURETOR
92077-022
Unavailable
39
PIN-COTTER,1.6X15
550D1615
Unavailable
