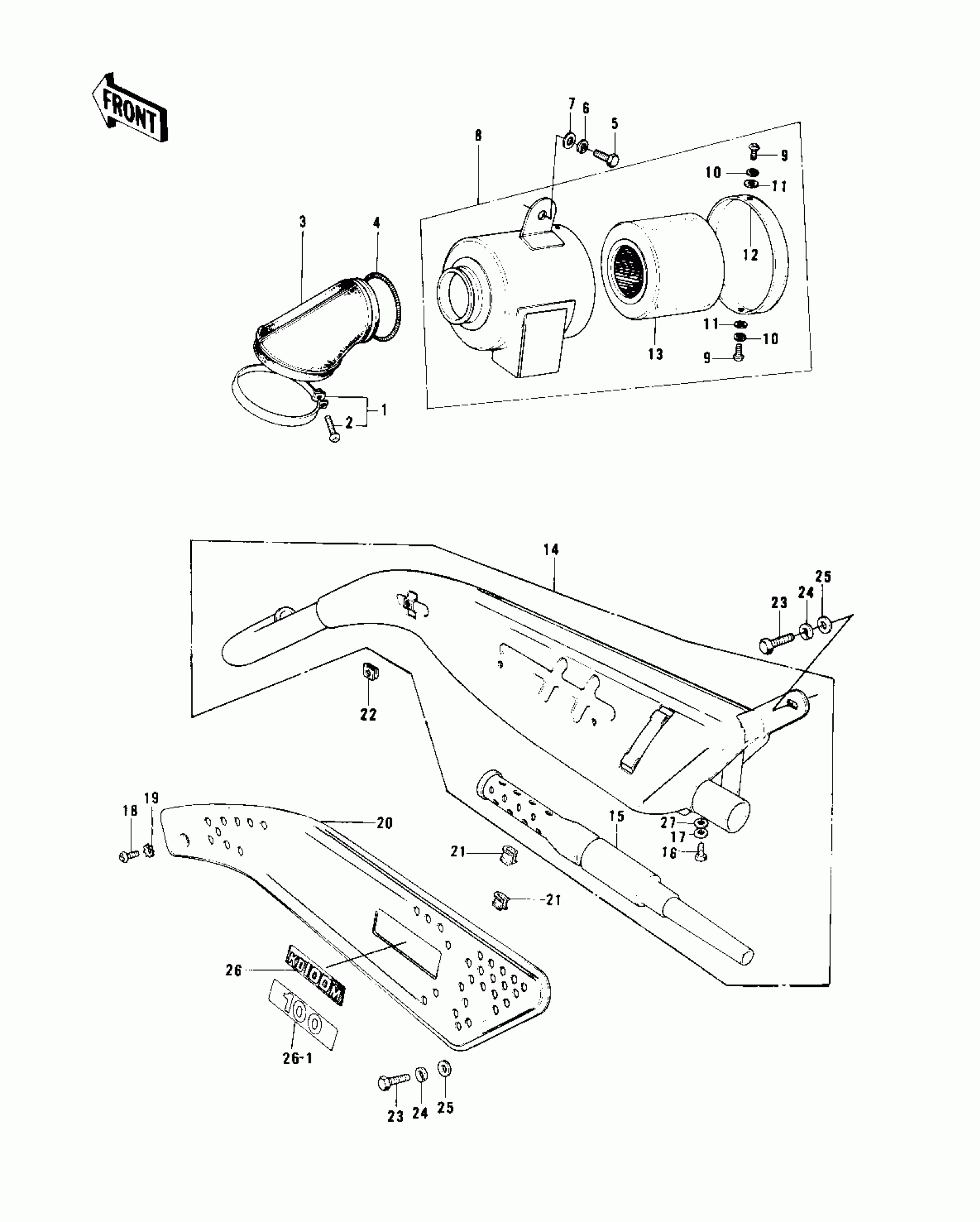

Kawasaki KD100-M4 AIR CLEANER/MUFFLER Diagram
#
Description
Price
1
CLAMP
92037-068
Unavailable
2
SCREW PAN HEAD 6X35
220B0635
Unavailable
3
CONNECTOR,AIR CLEANER
11026-009
Unavailable
4
SPRING COIL
92081-047
Unavailable
5
SCREW PAN HEAD 6X12
220B0612
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
WASHER PLAIN 6MM
411B0600
Unavailable
8
AIR CLEANER ASY,BLACK
11010-068-10
Unavailable
9
SCREW PAN HEAD 5X8
220B0508
Unavailable
10
WASHER SPRING 5MM
461F0500
Unavailable
11
WASHER-PLAIN,5MM
411B0500
Unavailable
12
CAP,AIR CLEANER
11012-041
Unavailable
13
ELEMENT,AIR,CLNR
11013-044
Unavailable
14
MUFFLER ASSY,F.BLACK
18001-167-21
Unavailable
15
BAFFLE TUBE
18033-096
Unavailable
16
BOLT,6X10
112G0610
Unavailable
17
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
18
SCREW PAN HEAD 6X12
220E0612
Unavailable
19
WASHER LOCK 6MM
463H0600
Unavailable
20
COVER,MUFFLER
18064-018
Unavailable
21
INSULATOR
18065-007
Unavailable
22
INSULATOR-HEAT
18065-009
Unavailable
23
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
24
WASHER SPRING 8MM
461F0800
Unavailable
25
WASHER PLAIN 8MM
411B0800
Unavailable
26
EMBLEM,SIDE COVER
56018-218
Unavailable
26-1
EMBLEM,MUFFLER COVER
56018-1043
Unavailable
27
WASHER-PLAIN
92022-183
Unavailable
