Description

Price

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

480A

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1280

$129.02

13128

SHAFT-TRANSMISSION OUTPUT

13128-0672

$120.58

13144

SPROCKET-OUTPUT,14T

13144-0556

$34.75

13260

GEAR,INPUT 3RD,20T

13260-1839

$53.12

13260A

GEAR,OUTPUT 3RD,27T

13260-1842

$53.12

13260B

GEAR,OUTPUT LOW,36T

13260-1862

$77.55

13260C

GEAR,INPUT 2ND,16T

13260-1986

$30.75

13262

GEAR,INPUT 4TH,23T

13262-0666

$67.59

13262A

GEAR,OUTPUT 4TH,25T

13262-0667

$67.59

13262B

GEAR,OUTPUT 2ND,31T

13262-0913

$50.09

32085

STOPPER

32085-0194

$7.31

92022

WASHER,22.3X27X0.5

92022-198

$5.52

92025

SHIM

92025-1280

$3.29

92026

SPACER

92026-1091

$4.31

92033

RING-SNAP,17MM

92033-1060

$4.26

92055

RING-O,16.8MM

92055-1235

$5.52

92139

BUSHING

92139-1102

$12.80

92145

SPRING

92145-0782

$22.46

92152

COLLAR,SPROCKET

92152-0998

$14.04

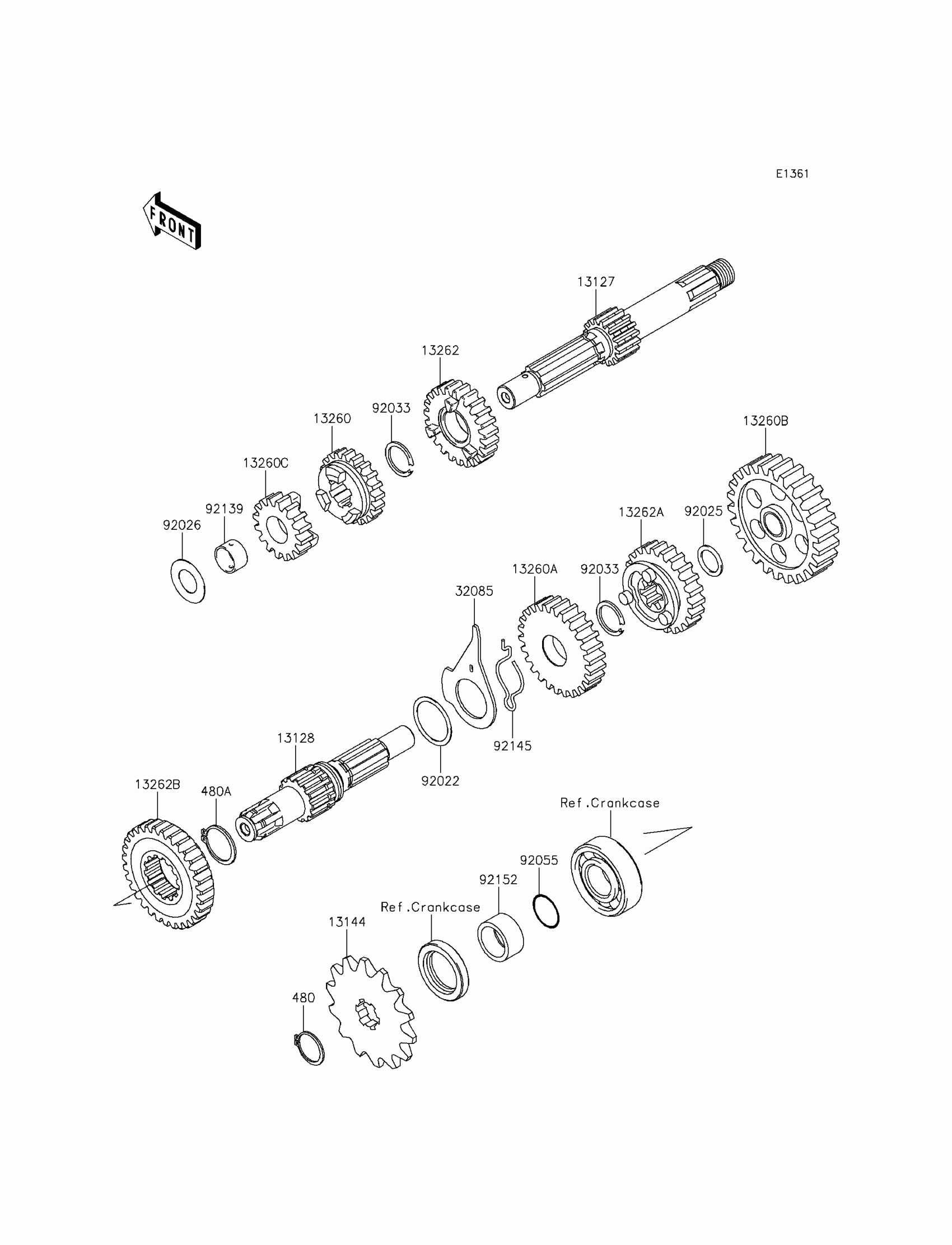

Kawasaki KAZE HIT Transmission Diagram
