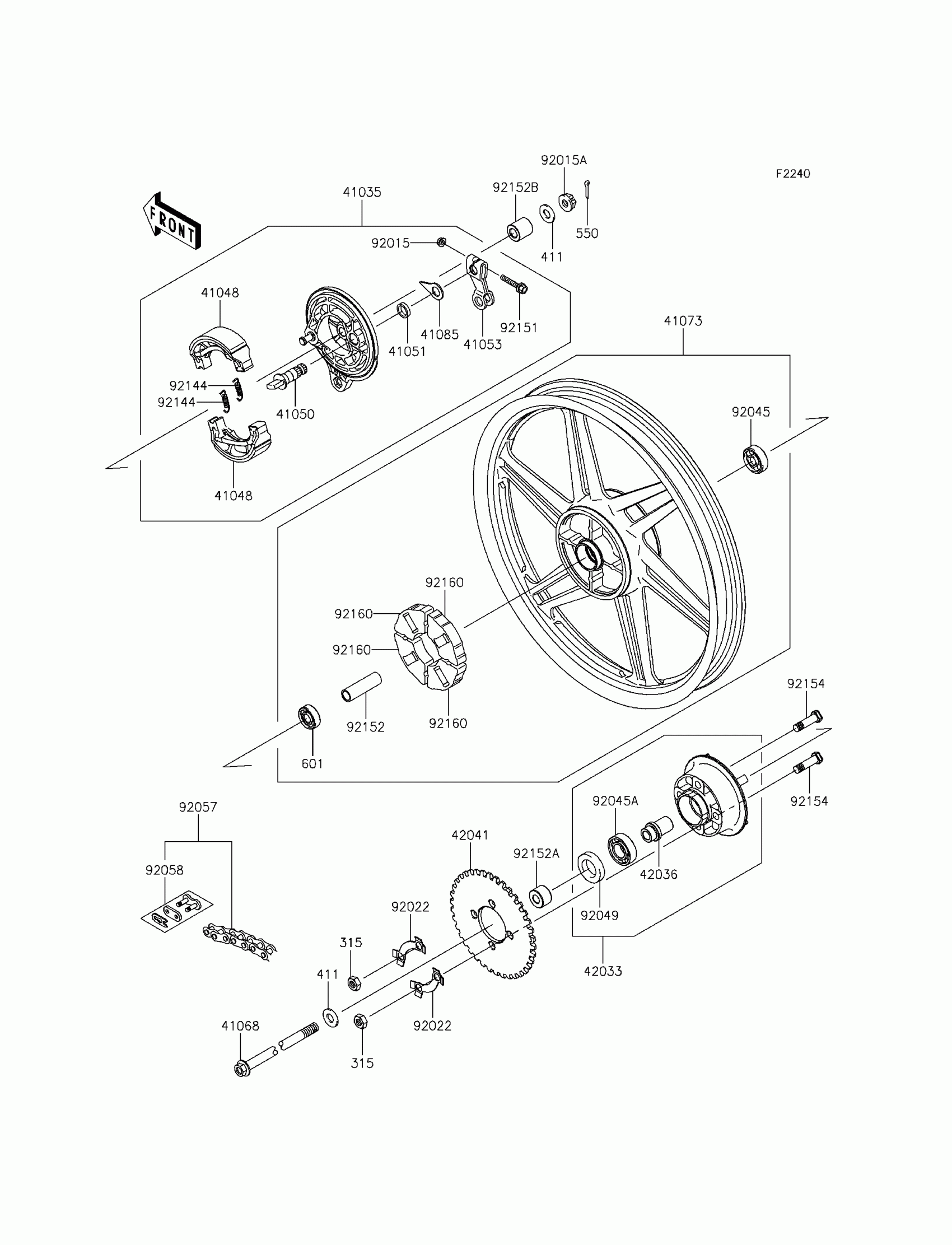

Kawasaki KAZE HIT Rear Hub Diagram
#
Description
Price
315
NUT-HEX-FINE,10MM
315AA1000
$0.59
411
WASHER-PLAIN,12MM
411AA1200
$0.96
550
PIN-COTTER,3.0X25
550AA3025
$0.62
601
BEARING-BALL,#6201UG
601B6201UG
$19.40
41035
PANEL-ASSY-BRAKE,RR,BLACK
41035-0085-10
$268.85
41048
SHOE-BRAKE
41048-0008
$10.02
41050
CAM-BRAKE
41050-1098
$8.74
41051
SEAL,BRAKE CAM
41051-001
$4.26
41053
LEVER-BRAKE CAM
41053-1089
$5.92
41068
AXLE
41068-0082
$9.87
41073
WHEEL-ASSY,RR,G.BLACK
41073-0570-21V
$356.86
41085
INDICATOR
41085-1079
$0.84
42033
COUPLING-ASSY,RR HUB
42033-0024
$53.01
42036
SLEEVE,RR HUB COUPLING,L=29
42036-0041
$8.89
42041
SPROCKET-HUB,38T
42041-0112
$71.18
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,CASTLE,12MM
92015-1870
$6.36
92022
WASHER,LOCK
92022-1705
$7.68
92045
BEARING-BALL,#6301DUC3E
92045-0714
$15.08
92045A
BEARING-BALL,#6004UG
92045-0717
$21.95
92049
SEAL-OIL,S 26 42 8
92049-1428
$22.81
92057
CHAIN,DRIVE,RK420SBX104L
92057-0162
$44.44
92058
JOINT-CHAIN,DRIVE
92058-0020
$6.76
92144
SPRING,BRAKE SHOE
92144-1907
$4.61
92151
BOLT,FLANGED,6X34
92151-1209
$3.71
92152
COLLAR,RR BRAKE DRUM,L=58
92152-0354
$12.67
92152A
COLLAR,RR AXLE,LH,L=17
92152-0452
$17.24
92152B
COLLAR,12.2X24X25
92152-0806
$6.63
92154
BOLT,10X36
92154-0770
$3.53
92160
DAMPER,SHOCK,RR HUB
92160-1627
$11.91
