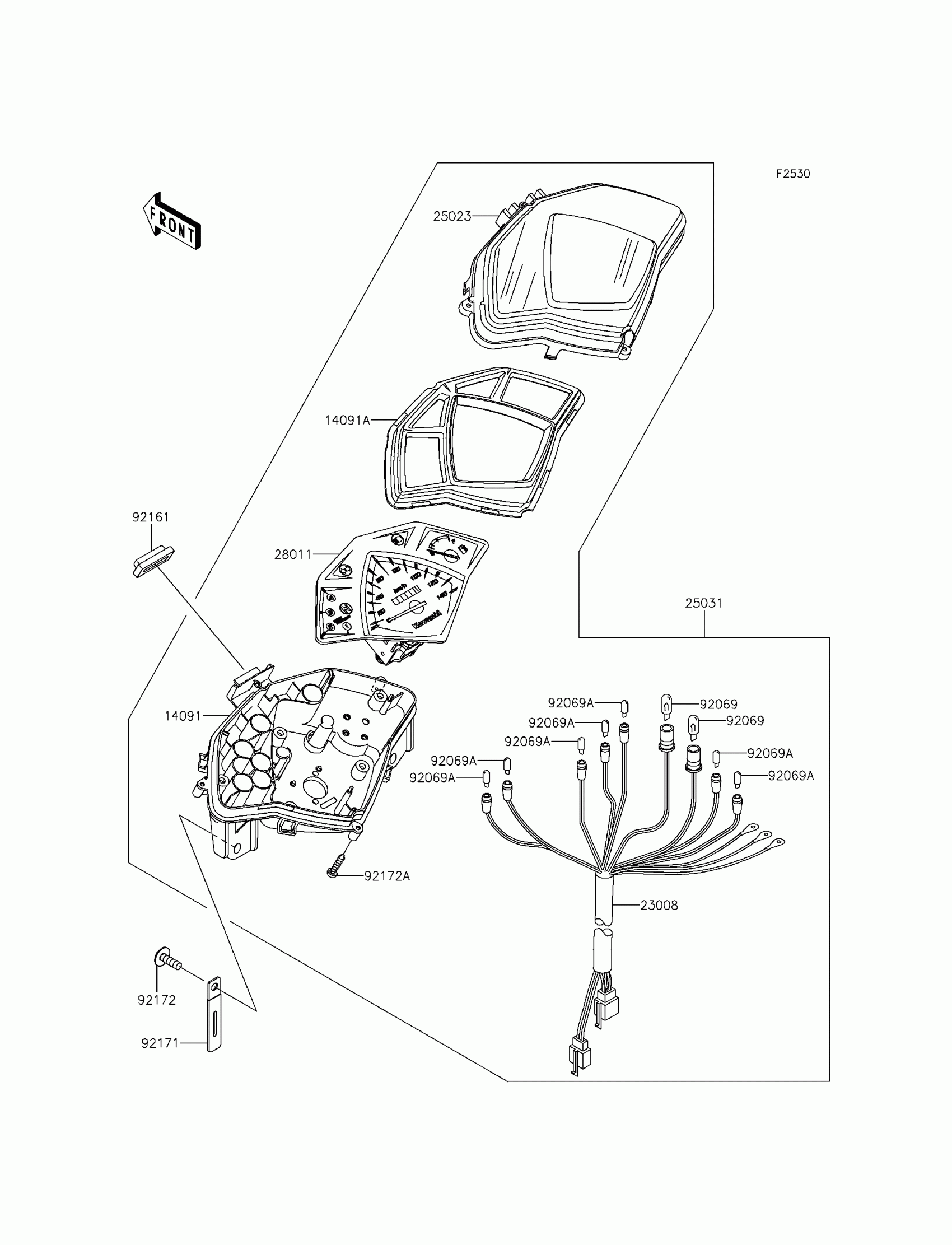

Kawasaki KAZE HIT Meter(s) Diagram

Description

Price

14091

COVER,METER,LWR

14091-1799

$8.28

14091A

COVER,METER,REFLECTOR

14091-1800

$8.14

23008

SOCKET-ASSY,METER

23008-0111

$28.52

25023

COVER-METER CASE,UPP

25023-0055

$8.90

25031

METER-ASSY,KPH

25031-0290

$208.12

28011

METER,SPEED&FUEL

28011-0155

$81.32

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92069A

BULB,12V 1.7W,T6.5

92069-1070

$6.52

92161

DAMPER

92161-1306

$0.88

92171

CLAMP,WIRING HARNESS,L=60

92171-1425

$1.86

92172

SCREW,6X18

92172-0192

$11.28

92172A

SCREW,3X12

92172-0475

$0.85
