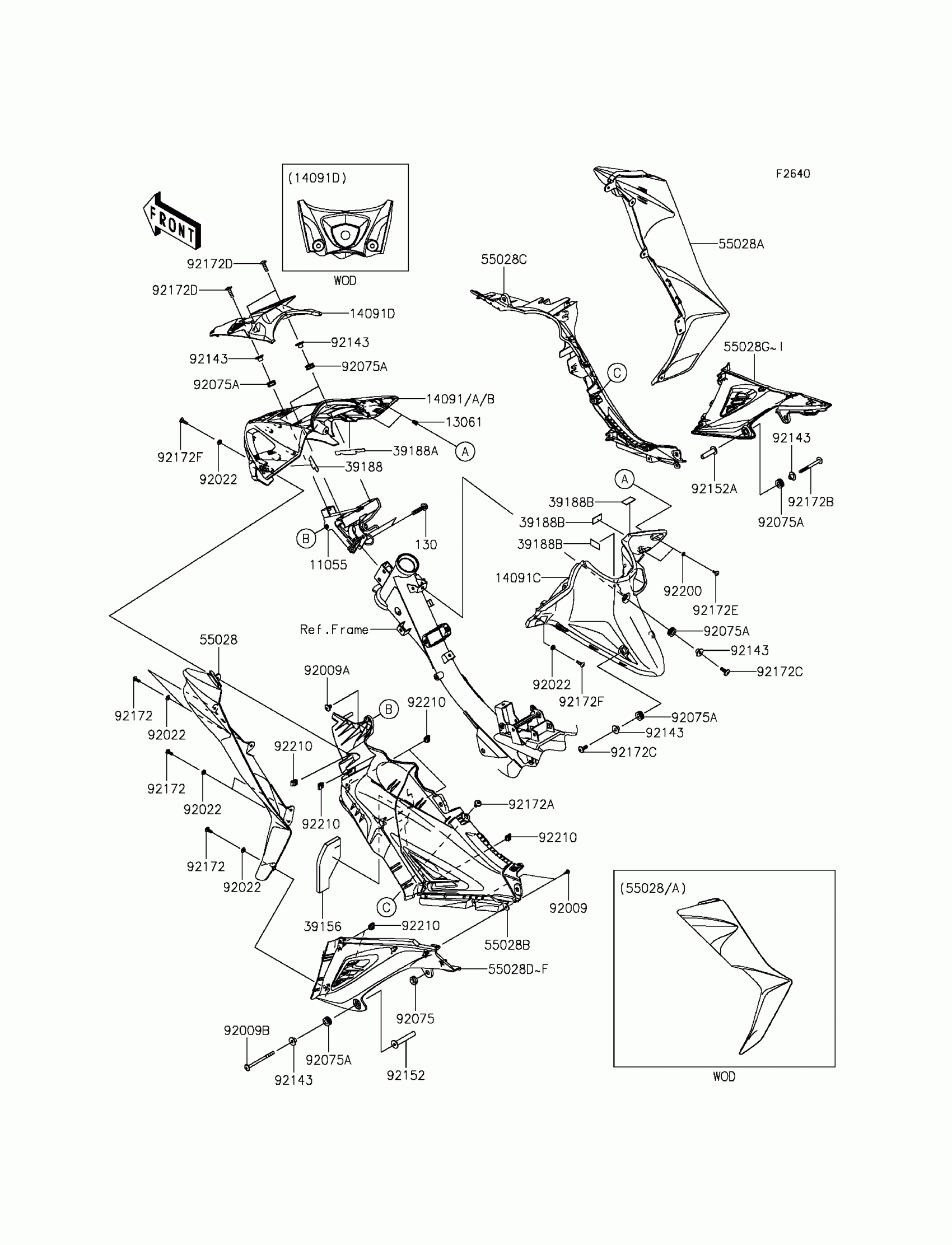

Kawasaki KAZE HIT Leg Shield Diagram
#
130
BOLT-FLANGED,8X35
130BB0835
$4.45
11055
BRACKET,FRONT COVER
11055-1515
$27.60
13061
BOSS
13061-0384
$3.95
14091
COVER,FRONT,FR,P.RED
14091-1783-21F
$33.27
14091A
COVER,FRONT,FR,M.SILVER
14091-1783-34G
$33.27
14091B
COVER,FRONT,FR,L.GREEN
14091-1783-777
$33.27
14091C
COVER,FRONT,RR,M.F.S.BLACK
14091-1784-21P
$26.91
14091D
COVER,FRONT,TOP,F.BLACK
14091-1785-6Z
$6.89
39156
PAD
39156-0600
$2.06
39188
TAPE,LH
39188-0020
$0.84
39188A
TAPE,RH
39188-0021
$0.84
39188B
TAPE
39188-0022
$0.84
55028
COWLING,LEG SHIELD,OUT,LH,W/B
55028-0273-34H
$22.48
55028A
COWLING,LEG SHIELD,OUT,RH,W/B
55028-0274-34H
$22.48
55028B
COWLING,LEG SHIELD,INN,LH,BLK
55028-0275-6Z
$15.14
55028C
COWLING,LEG SHIELD,INN,RH,BLK
55028-0276-6Z
$14.44
55028D
COWLING,LEG SHIELD,LWR,LH,RED
55028-0277-21F
$14.32
55028E
COWLING,LEG SHIELD,LWR,LH,SIL
55028-0277-34G
$18.01
55028F
COWLING,LEG SHIELD,LWR,LH,GRN
55028-0277-777
$18.01
55028G
COWLING,LEG SHIELD,LWR,RH,RED
55028-0278-21F
$14.32
55028H
COWLING,LEG SHIELD,LWR,RH,SIL
55028-0278-34G
$18.01
55028I
COWLING,LEG SHIELD,LWR,RH,GRN
55028-0278-777
$18.01
92009
SCREW,TAPPING,4X12,BLACK
92009-1142
$4.13
92009A
SCREW,6X10
92009-1729
$0.22
92009B
SCREW,6X87
92009-1983
$0.88
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92075
DAMPER
92075-1629
$5.00
92075A
DAMPER
92075-1634
$4.69
92143
COLLAR,L=9.6
92143-1016
$6.22
92152
COLLAR,L=64.8
92152-0862
$4.95
92152A
COLLAR,L=40
92152-0863
$4.01
92172
SCREW
92172-0016
$2.26
92172A
SCREW,6X14
92172-0055
$0.39
92172B
SCREW,6X65
92172-0179
$2.15
92172C
SCREW,6X18
92172-0192
$11.28
92172D
SCREW,6X22
92172-0373
$1.71
92172E
SCREW,4X12
92172-0442
$0.57
92172F
SCREW,5X18
92172-0443
$0.57
92200
WASHER,4X9.5X1
92200-0546
$0.55
92210
NUT,PLATE,5MM
92210-0262
$1.34
