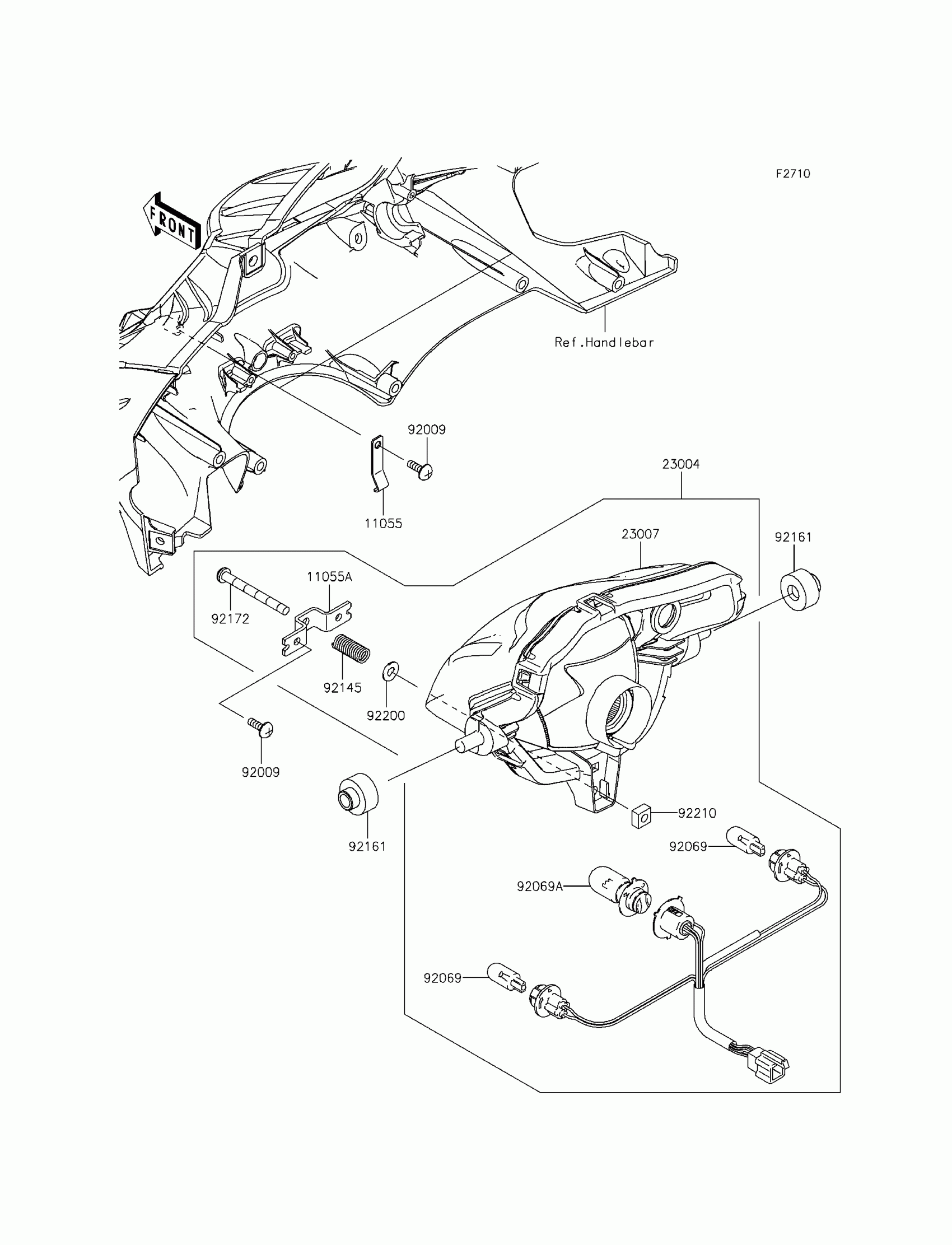

Kawasaki KAZE HIT Headlight(s) Diagram

Description

Price

11055

BRACKET

11055-1564

$0.88

11055A

BRACKET

11055-1889

$6.27

23004

LAMP-HEAD

23004-0306

$130.36

23007

LENS-COMP,HEAD LAMP

23007-0140

$53.70

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

$4.13

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 32/32W

92069-1123

$9.26

92145

SPRING

92145-0745

$1.18

92161

DAMPER

92161-0139

$0.88

92172

SCREW

92172-0447

$0.85

92200

WASHER

92200-0530

$3.35

92210

NUT,5MM

92210-0413

$3.55
