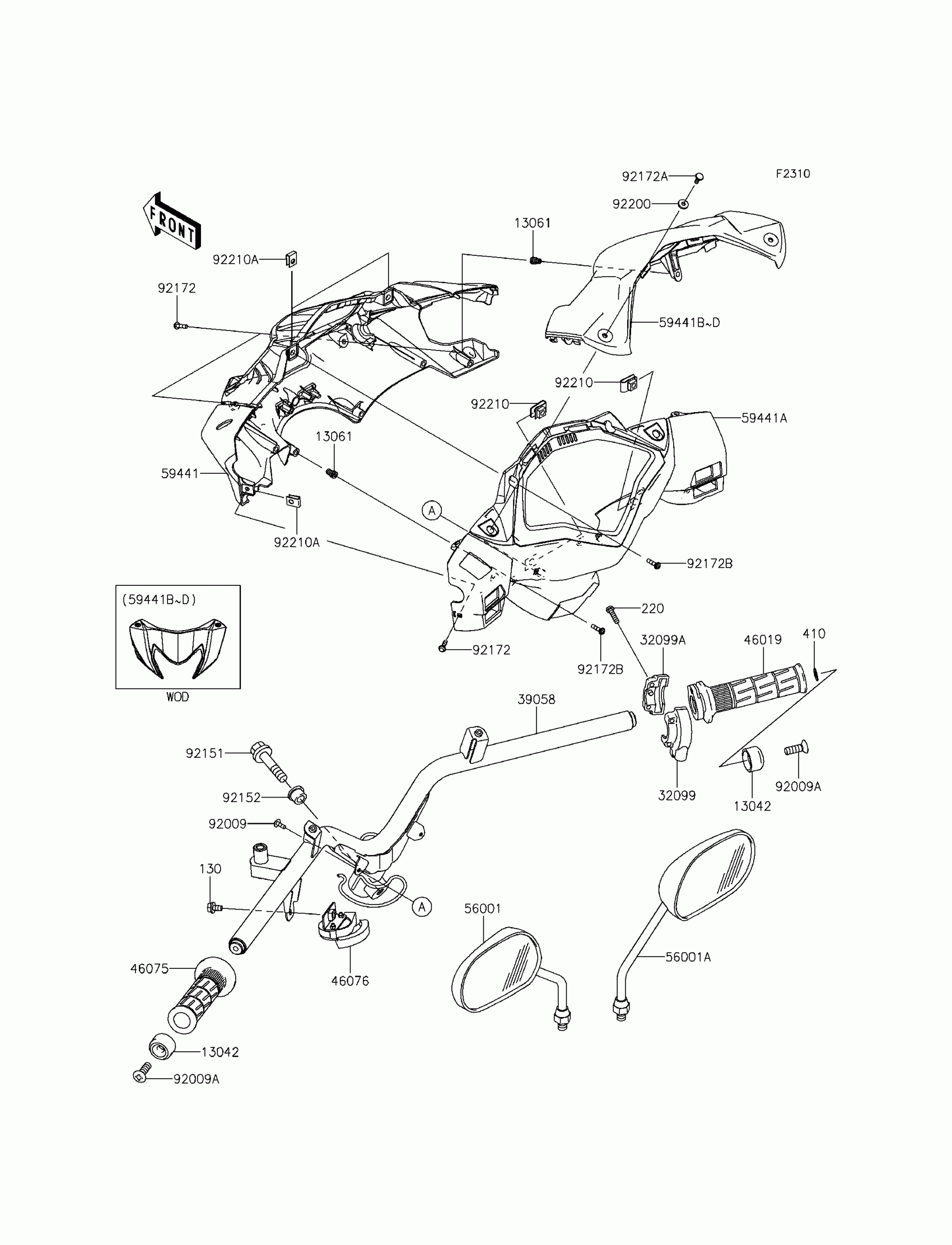

Kawasaki KAZE HIT Handlebar Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130BB0610
$2.49
220
SCREW-PAN-CROSS,5X20
220F0520
$1.96
410
WASHER-PLAIN-SMALL,8MM
410AA0800
Unavailable
13042
WEIGHT,HANDLE
13042-0023
$14.62
13061
BOSS
13061-0384
$3.95
32099
CASE,THROTTLE,RR
32099-0008
$29.15
32099A
CASE,THROTTLE,FR
32099-0012
$27.33
39058
HANDLE-COMP
39058-0062
$87.10
46019
GRIP-ASSY,THROTTLE
46019-0061
$10.99
46075
GRIP,LH
46075-0007
$7.40
46076
LEVER-ASSY-GRIP,CHOKE
46076-0071
$5.99
56001
MIRROR-ASSY,LH
56001-0176
$28.91
56001A
MIRROR-ASSY,RH
56001-0177
$30.30
59441
COVER-HANDLE,FR,F.BLACK
59441-0036-6Z
$22.63
59441A
COVER-HANDLE,RR,F.BLACK
59441-0037-6Z
$7.99
59441B
COVER-HANDLE,TOP,P.RED
59441-0038-21F
$13.69
59441C
COVER-HANDLE,TOP,M.SILVER
59441-0038-34G
$13.69
59441D
COVER-HANDLE,TOP,L.GREEN
59441-0038-777
$13.69
92009
SCREW,TAPPING,4X12,BLACK
92009-1142
$4.13
92009A
SCREW,8X25
92009-1717
$4.29
92151
BOLT,FLANGED,10X45
92151-1413
$3.94
92152
COLLAR
92152-1106
$1.15
92172
SCREW,4X12
92172-0442
$0.57
92172A
SCREW,4X12
92172-0451
$1.71
92172B
SCREW,4X16
92172-1066
$0.40
92200
WASHER,4X9.5X1
92200-0546
$0.55
92210
NUT,6MM
92210-0218
$2.55
92210A
NUT
92210-0339
$0.85
