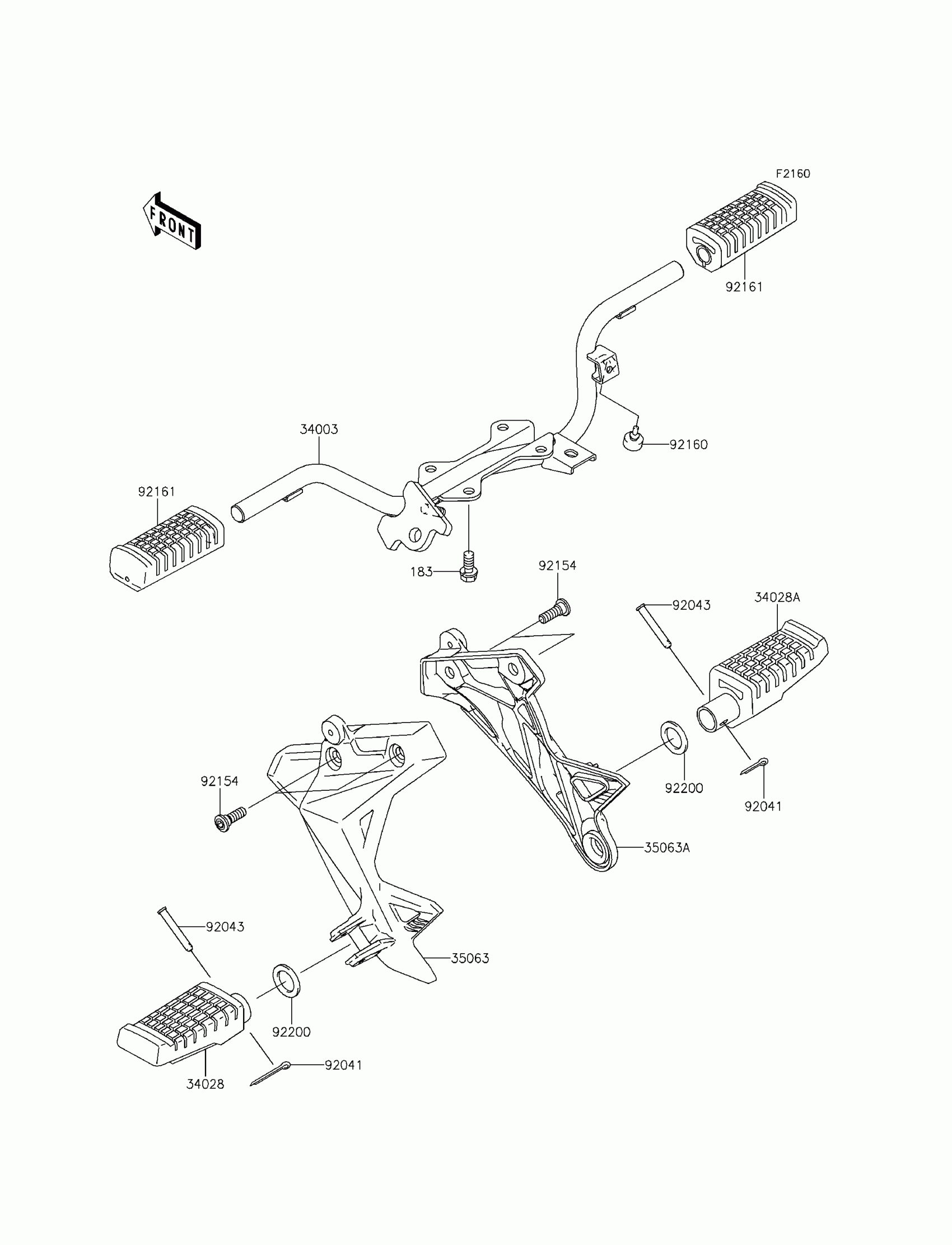

Kawasaki KAZE HIT Footrests Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL,8X20

183BA0820

$4.19

34003

HOLDER-STEP,FR

34003-0123

$75.26

34028

STEP,RR,LH

34028-0155

$13.46

34028A

STEP,RR,RH

34028-0156

$13.46

35063

STAY,RR,LH,P.SILVER

35063-0638-458

$38.72

35063A

STAY,RR,RH,P.SILVER

35063-0639-458

$38.72

92041

COTTER,2.0X15

92041-0008

$1.78

92043

PIN,6X37

92043-0045

$2.68

92154

BOLT,SOCKET,8X25

92154-0194

$1.71

92160

DAMPER,BRAKE STOPPER

92160-1821

$1.11

92161

DAMPER,STEP RUBBER

92161-1251

$3.53

92200

WASHER,20X30X2.3

92200-0732

$3.16
