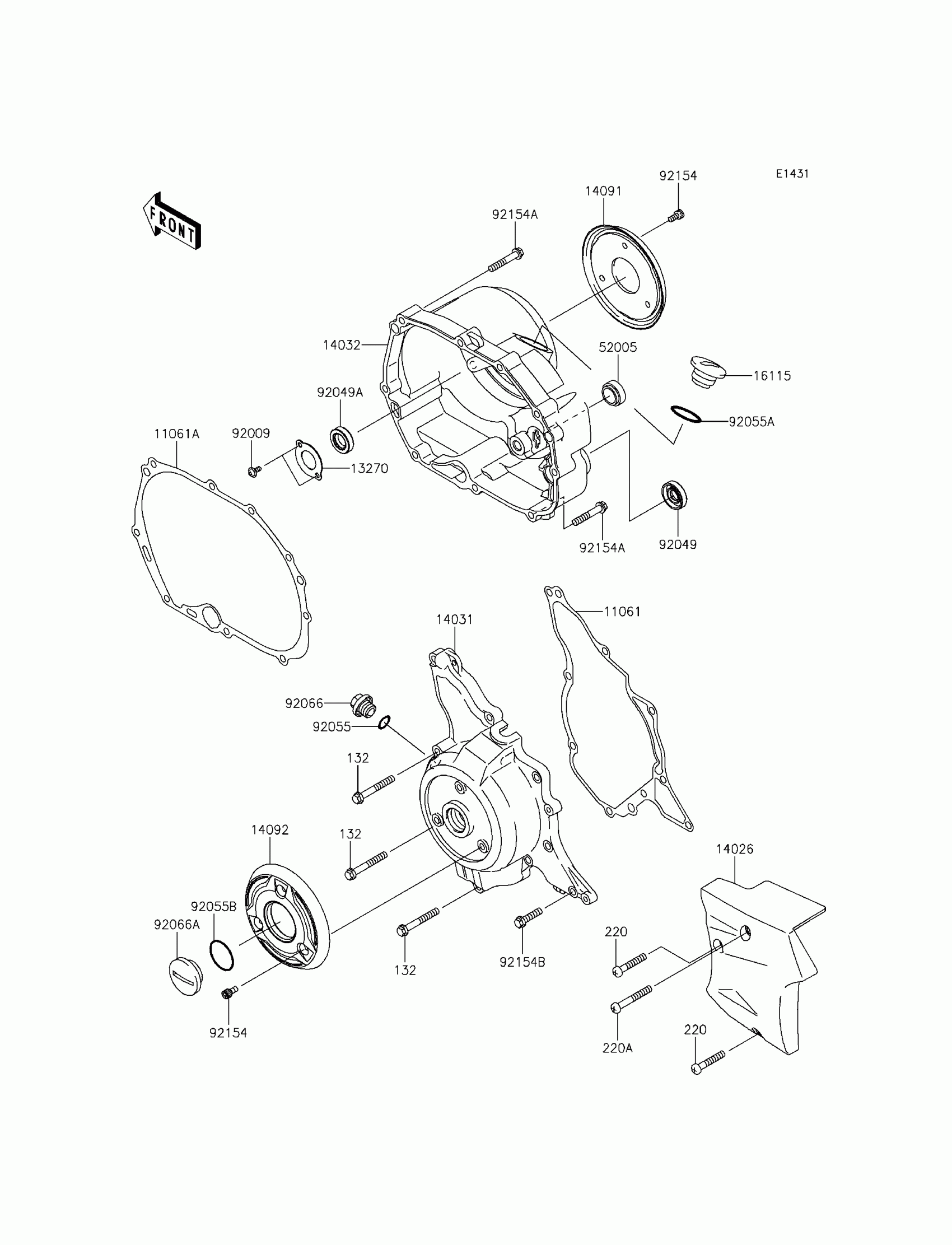

Kawasaki KAZE HIT Engine Cover(s) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X45
132BA0645
$4.45
220
SCREW-PAN-CROS,6X35
220AD0635
$4.32
220A
SCREW-PAN-CROS,6X45
220AD0645
$4.32
11061
GASKET,GENERATOR COVER
11061-0257
$18.56
11061A
GASKET,CLUTCH COVER
11061-0426
$23.23
13270
PLATE
13270-1800
$0.85
14026
COVER-CHAIN,M.M.GOLD
14026-0073-D3
$8.89
14031
COVER-GENERATOR,M.M.GOLD
14031-0119-D3
$58.83
14032
COVER-CLUTCH,M.M.GOLD
14032-0112-D3
$100.95
14091
COVER,HEAT INSULATOR
14091-1444
$6.23
14092
COVER
14092-0029
$18.56
16115
CAP-OIL FILLER
16115-1067
$13.30
52005
GAUGE,OIL LEVEL
52005-0019
$14.76
92009
SCREW
92009-1745
$3.29
92049
SEAL-OIL,S 12 28 7 HS
92049-0051
$5.65
92049A
SEAL-OIL
92049-1430
$13.79
92055
RING-O,14.8X2.4
92055-0194
$5.29
92055A
RING-O,31.5X2.6
92055-049
$4.31
92055B
RING-O,25.7X2.4
92055-0716
$3.05
92066
PLUG,14X10
92066-0724
$1.62
92066A
PLUG,GENERATOR COVER CAP
92066-1565
$7.27
92154
BOLT,SOCKET,5X10
92154-0789
$2.32
92154A
BOLT
92154-1134
$3.71
92154B
BOLT,FLANGED,6X25
92154-1156
$1.97
