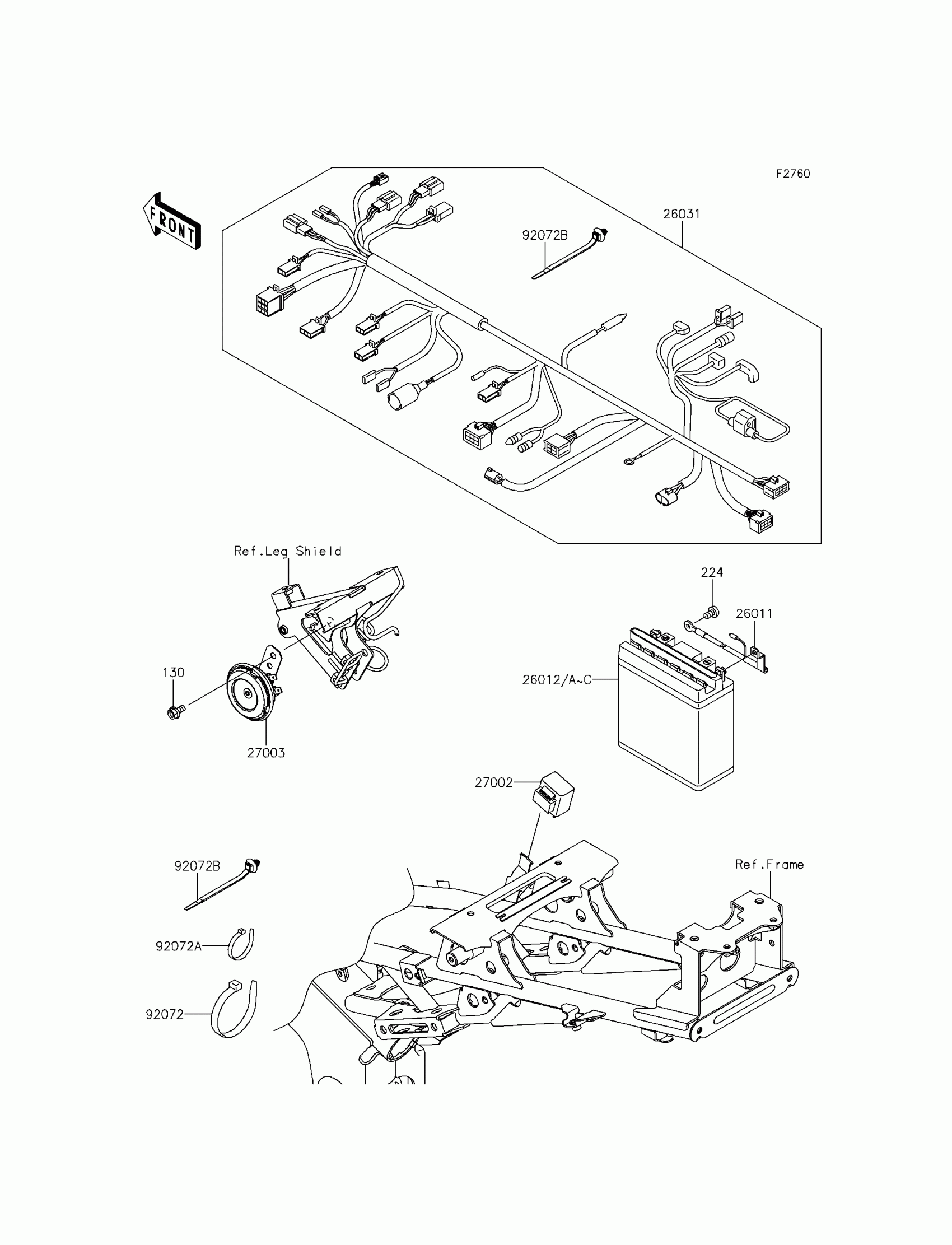

Kawasaki KAZE HIT Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$2.34

224

SCREW-PAN-WP-CROS,6X10

224AA0610

$0.59

26011

WIRE-LEAD,BATTERY(-)

26011-0730

$5.98

26012

BATTERY,YB5L-B,12V 5AH

26012-0057

Unavailable

26012A

BATTERY,YB5L-B,12V 5AH

26012-0058

$36.68

26012B

BATTERY,YB5L-B,12V 5AH

26012-1295

Unavailable

26012C

BATTERY,GM5Z-3B,12V 5AH

26012-1316

$42.50

26031

HARNESS,MAIN

26031-1182

$115.72

27002

RELAY-ASSY

27002-1091

$73.45

27003

HORN

27003-0031

$59.33

92072

BAND,L=250

92072-1237

$2.14

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74
