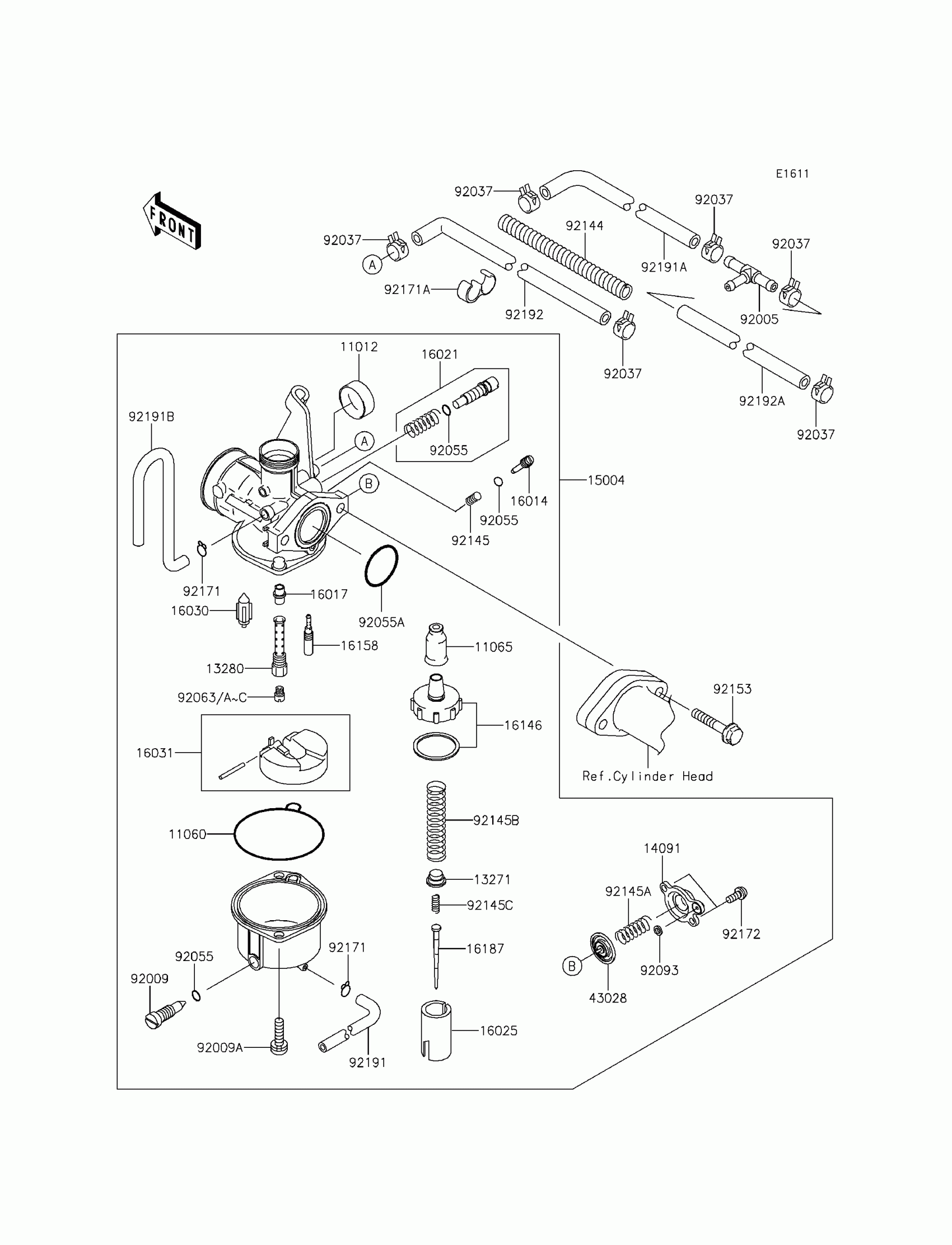

Kawasaki KAZE HIT Carburetor Diagram
#
11012
CAP,CHOKE
11012-1940
Unavailable
11060
GASKET,FLOAT CHAMBER
11060-1700
Unavailable
11065
CAP,TOP COVER
11065-1235
$3.70
13271
PLATE
13271-1668
$7.89
13280
HOLDER,NEEDLE JET
13280-1282
$14.99
14091
COVER
14091-0285
$28.84
15004
CARBURETOR-ASSY,PB18
15004-0743
$124.22
16014
SCREW-PILOT AIR
16014-0013
$19.06
16017
JET-NEEDLE
16017-1399
$42.85
16021
SCREW-THROTTLE STOP
16021-1203
$15.87
16025
VALVE-THROTTLE
16025-1225
$74.62
16030
VALVE-FLOAT,FLOAT
16030-0002
Unavailable
16031
FLOAT
16031-1107
$29.06
16146
COVER-ASSY,CARBURETOR TOP
16146-1229
$6.16
16158
JET-SLOW,#38
16158-1063
$14.90
16187
NEEDLE-JET,NEQC
16187-0024
$39.28
43028
DIAPHRAGM
43028-0003
$30.76
92005
FITTING
92005-0112
$3.68
92009
SCREW,DRAIN
92009-1057
$7.84
92009A
SCREW
92009-1750
$4.39
92037
CLAMP
92037-1601
$12.92
92055
RING-O
92055-1053
$4.69
92055A
RING-O
92055-1541
$2.78
92063
JET-MAIN,#85
92063-1326
Unavailable
92063A
JET-MAIN,#78
92063-1393
Unavailable
92063B
JET-MAIN,#80
92063-1396
$12.56
92063C
JET-MAIN,#82
92063-1397
Unavailable
92093
SEAL-"U"RING
92093-1046
$6.51
92144
SPRING
92144-1994
$4.14
92145
SPRING
92145-0004
$6.02
92145A
SPRING
92145-0217
$7.69
92145B
SPRING,THROTTLE VALVE
92145-1407
$7.88
92145C
SPRING,THROTTLE VALVE PLATE
92145-1408
$1.10
92153
BOLT,FLANGED-SMALL,6X28
92153-1309
$2.97
92171
CLAMP
92171-0494
$4.92
92171A
CLAMP
92171-1184
$2.46
92172
SCREW
92172-0165
$3.90
92191
TUBE,3.5X6.5X298
92191-1142
$11.66
92191A
TUBE,FUEL
92191-1204
$4.76
92191B
TUBE,3.5X6.5X350
92191-1768
$6.46
92192
TUBE,5X9X290
92192-0804
$5.01
92192A
TUBE,5X9X110
92192-0805
$3.32
