Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

11010

FILTER-ASSY-AIR

11010-0725

$82.49

11013

ELEMENT-AIR FILTER

11013-1293

$5.08

14037

SCREEN,AIR FILTER

14037-1297

$3.22

14073

DUCT

14073-1810

$5.66

16126

VALVE,2ND-AIR

16126-0052

$73.39

35063

STAY,AIR FILTER

35063-1210

$3.37

92009

SCREW,5X25

92009-1986

$0.39

92037

CLAMP

92037-1593

$6.21

92037A

CLAMP

92037-1601

$12.92

92037B

CLAMP,14.5MM

92037-1900

$4.87

92093

SEAL,AIR FILTER

92093-1568

$4.97

92171

CLAMP

92171-1521

$2.15

92172

SCREW,6X14

92172-0055

$0.39

92173

CLAMP

92173-0784

$3.02

92173A

CLAMP,14MM

92173-0790

$1.19

92173B

CLAMP,20MM

92173-0795

$1.63

92173C

CLAMP,15MM

92173-0814

$6.63

92191

TUBE,BREATHER

92191-1684

$3.72

92191A

TUBE,DRAIN

92191-1685

$2.32

92192

TUBE,FITTING-ACV

92192-0806

$3.32

92192A

TUBE,A/C-ACV

92192-0807

$10.21

92192B

TUBE,ACV-HEAD

92192-1102

$13.37

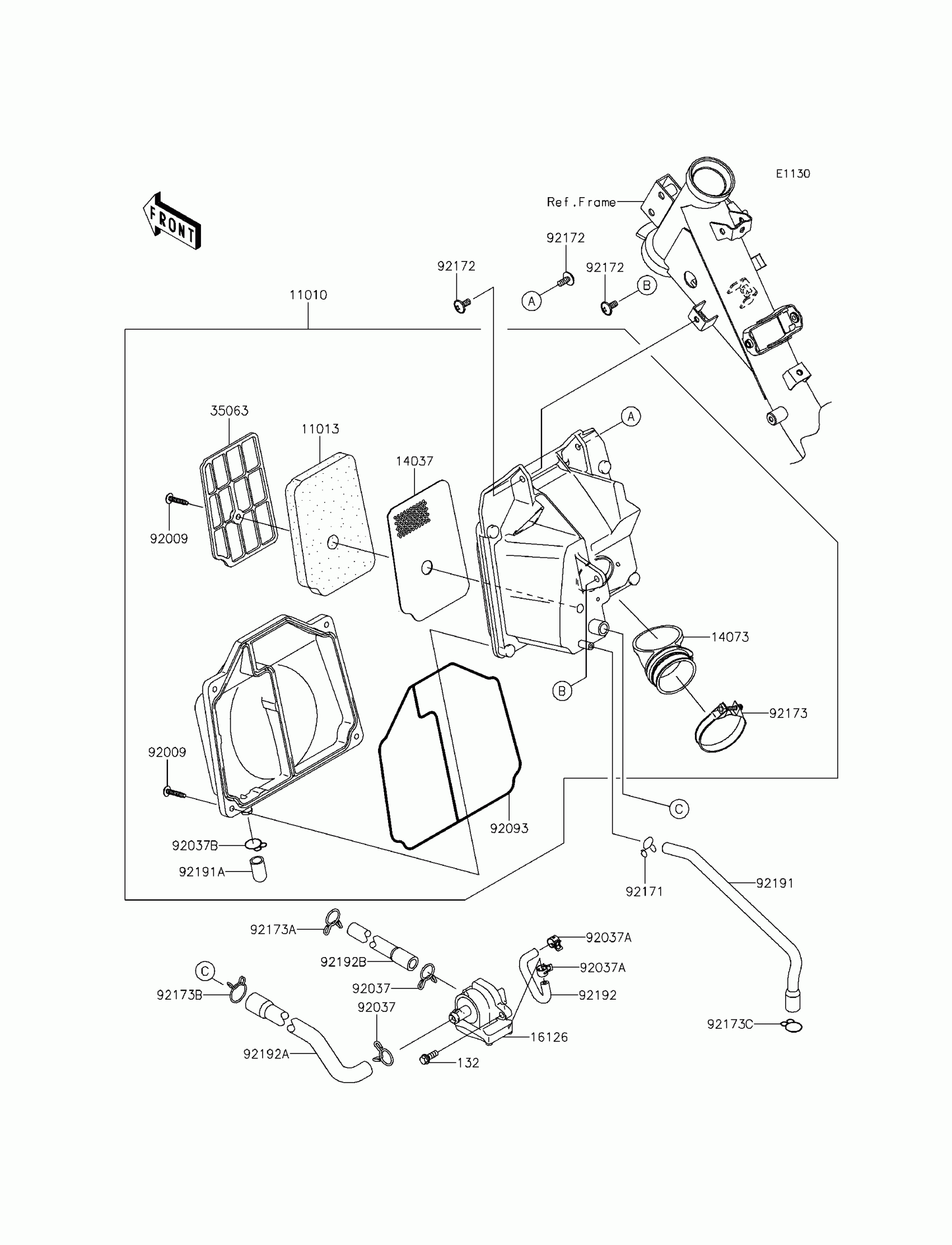

Kawasaki KAZE HIT Air Cleaner Diagram

BOLT-FLANGED-SMALL,6X16

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

SCREEN,AIR FILTER

DUCT

VALVE,2ND-AIR

STAY,AIR FILTER

SCREW,5X25

CLAMP

CLAMP

CLAMP,14.5MM

SEAL,AIR FILTER

CLAMP

SCREW,6X14

CLAMP

CLAMP,14MM

CLAMP,20MM

CLAMP,15MM

TUBE,BREATHER

TUBE,DRAIN

TUBE,FITTING-ACV

TUBE,A/C-ACV

TUBE,ACV-HEAD
