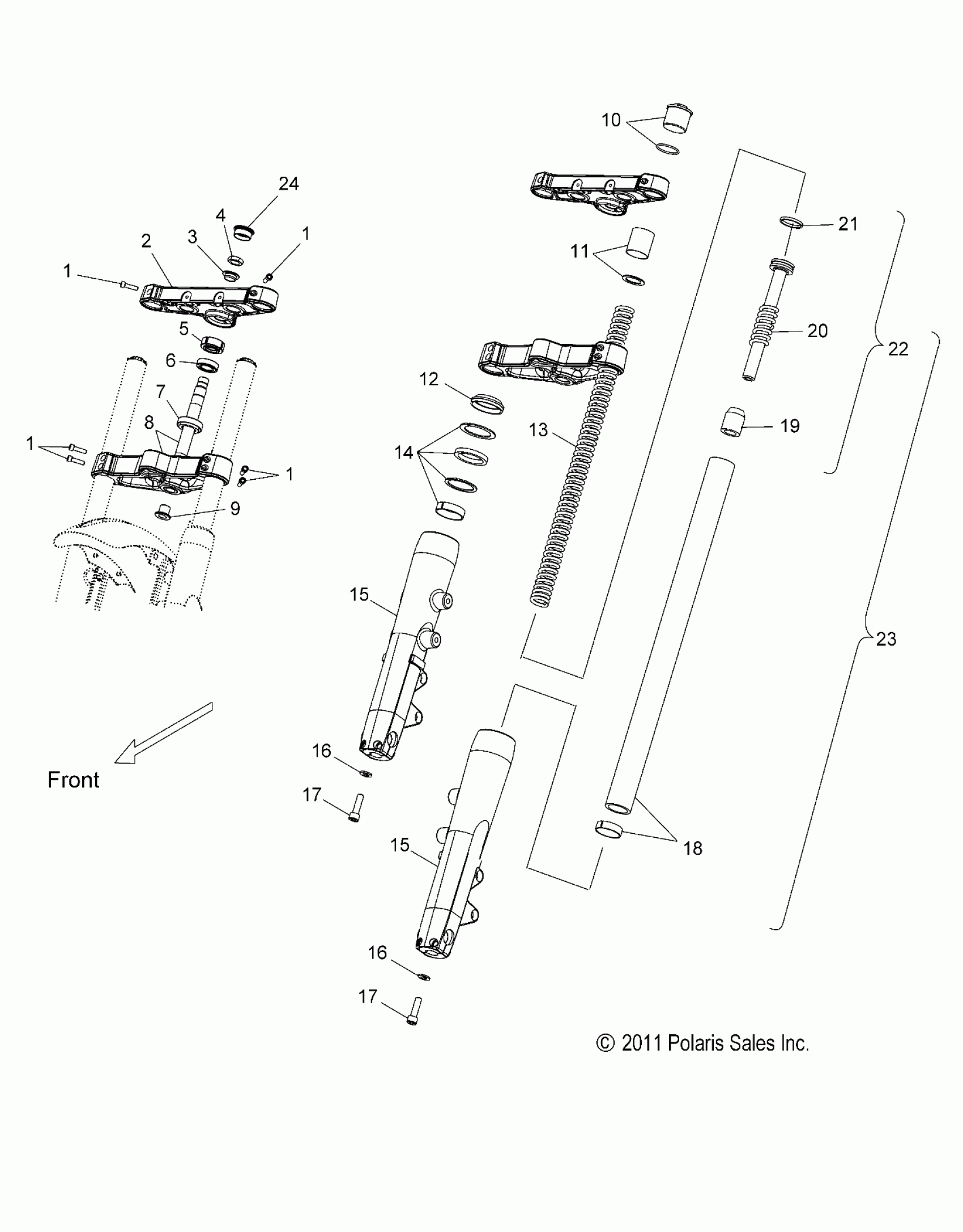

Polaris JUDGE ALL OPTIONS - V14MB36 SUSPENSION, FRONT FORKS - V14MB36 ALL OPTIONS (49VICFORKS13S) Diagram

#

Description
Price

1

SCREW

7517361

$23.81

1

SCREW

7517361

$23.81

1

SCREW

7517361

$23.81

1

SCREW

7517361

$23.81

2

CLAMP, TRIPLE, UPPER, FLAT BLACK

5137650-463

$384.99

3

SPACER, STEERING STEM

5137035

$31.75

4

Nut, Top, Triple Clamp

5134148

$31.75

5

NUT, STEERING HEAD

5631935

$27.78

6

BEARING, BALL

3514549

$23.81

7

BEARING

3514416

$35.71

8

ASM., BRACKET, LOWER, FLAT BLACK [INCL. 1]

1823901-463

Unavailable

9

CAP, STEERING STEM

5412473

$4.03

10

KIT, CAP W/O-RING

2202507

$44.51

10

O-RING

5412452

Unavailable

11

KIT, SPACER, PRELOAD

2202499

Unavailable

12

SEAL, FORK

----

Unavailable

13

SPRING, COMPRESSION

7042270

$121.41

14

KIT, SEALS BUSHING [INCL. 12]

2202505

Unavailable

15

KIT, SLIDER LEG, RH [INCL. 14]

2202503

$734.99

15

KIT, SLIDER LEG, LH

2202502

$734.99

15

KIT, SLIDER LEG, RH [INCL. 14]

2202503

$734.99

15

KIT, SLIDER LEG, LH

2202502

$734.99

16

WASHER

7556390

Unavailable

16

WASHER

7556390

Unavailable

17

SCREW

7519082

$5.56

17

SCREW

7519082

$5.56

18

KIT, ASM., TUBE [INCL. 16,17,19]

2202504

$659.99

19

ASM., OIL LOCK

----

Unavailable

20

SPRING, REBOUND

----

Unavailable

21

RING, DAMPER

5435151

$1.98

22

KIT, DAMPER ROD/SEGMENT [INCL. 1]

2202506

$111.10

23

ASM., FORK LEG, RH, BLACK [INCL. 10-21]

1821286-067

$904.99

23

ASM., FORK LEG, LH, BLACK [INCL. 20,21]

1821285-067

$904.99

24

CAP, STEERING STEM NUT

5414237

$13.49
