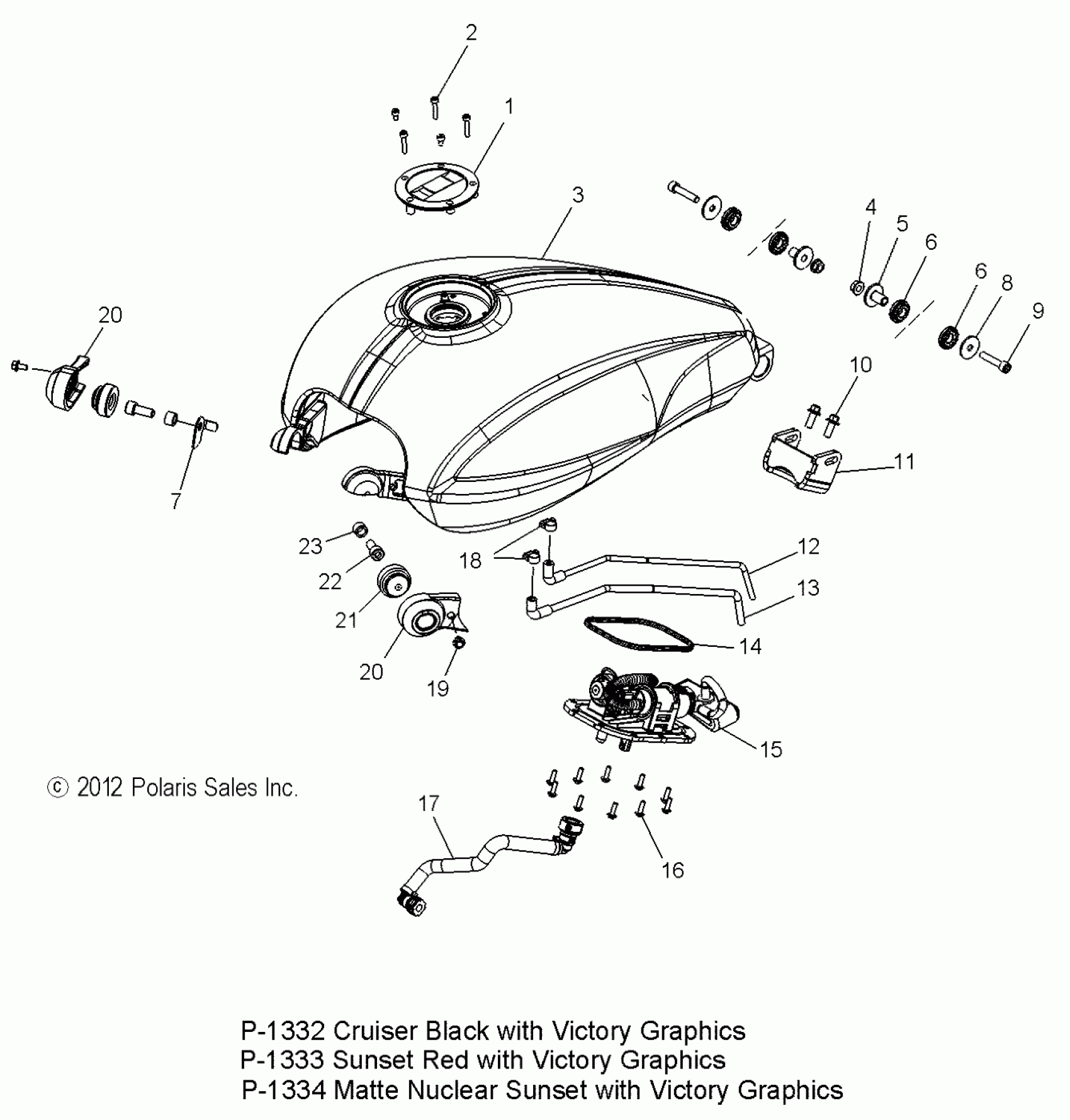

Polaris JUDGE ALL OPTIONS - V13MB36 BODY, FUEL TANK - V13MB36 ALL OPTIONS (49VICFUEL13S) Diagram

#

Description
Price

1

ASM., IGNITION/FUEL CAP, BLACK

4012376-266

$285.62

1

Asm., Ignition/Fuel Cap, Black [Int'l]

4012377-266

$374.99

2

SCREW

7518086

$5.56

2

SCREW

7517515

$8.71

2

SCREW

7517845

$5.56

3

Tank, Fuel

1018260-1334

Unavailable

3

Tank, Fuel

1018260-1332

$2,524.99

3

Tank, Fuel

1018260-1333

Unavailable

4

NUT

7547014

$7.84

5

BUSHING, FLANGE

5136409

$29.99

6

BUSHING, FLANGE, RUBBER

5413491

Unavailable

6

BUSHING, FLANGE, RUBBER

5413491

Unavailable

7

BRACKET, THROTTLE CABLE PROTECTOR

5256248

Unavailable

8

WASHER

7556175

$5.99

9

SCREW

7518178

$7.14

10

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

11

BRKT., FUEL TANK MOUNT

1018907

Unavailable

12

LINE, FUEL VENT

5437376

Unavailable

13

LINE, WATER DRAIN

5435764

Unavailable

14

SEAL, FUEL

5413346

$23.81

15

PUMP, FUEL

2521221

$469.99

16

SCREW

7518923

$0.79

17

LINE, FUEL

5414309

Unavailable

18

CLAMP, HOSE

7081151

$7.14

19

SCREW

7517704

$7.84

20

COVER, TANK, RH BRKT., FLAT BLACK

5439144-463

$44.51

20

COVER, TANK, LH BRKT., FLAT BLACK

5439143-463

Unavailable

20

COVER, TANK, RH BRKT., FLAT BLACK

5439144-463

$44.51

20

COVER, TANK, LH BRKT., FLAT BLACK

5439143-463

Unavailable

21

ISOLATOR, TANK, FRONT

5413479

$5.65

22

SCREW

7517358

$5.56

23

SPACER

5336872

Unavailable
