1972 Yamaha JT2_JT2MX (JT2MX) Steering Diagram

← All diagrams

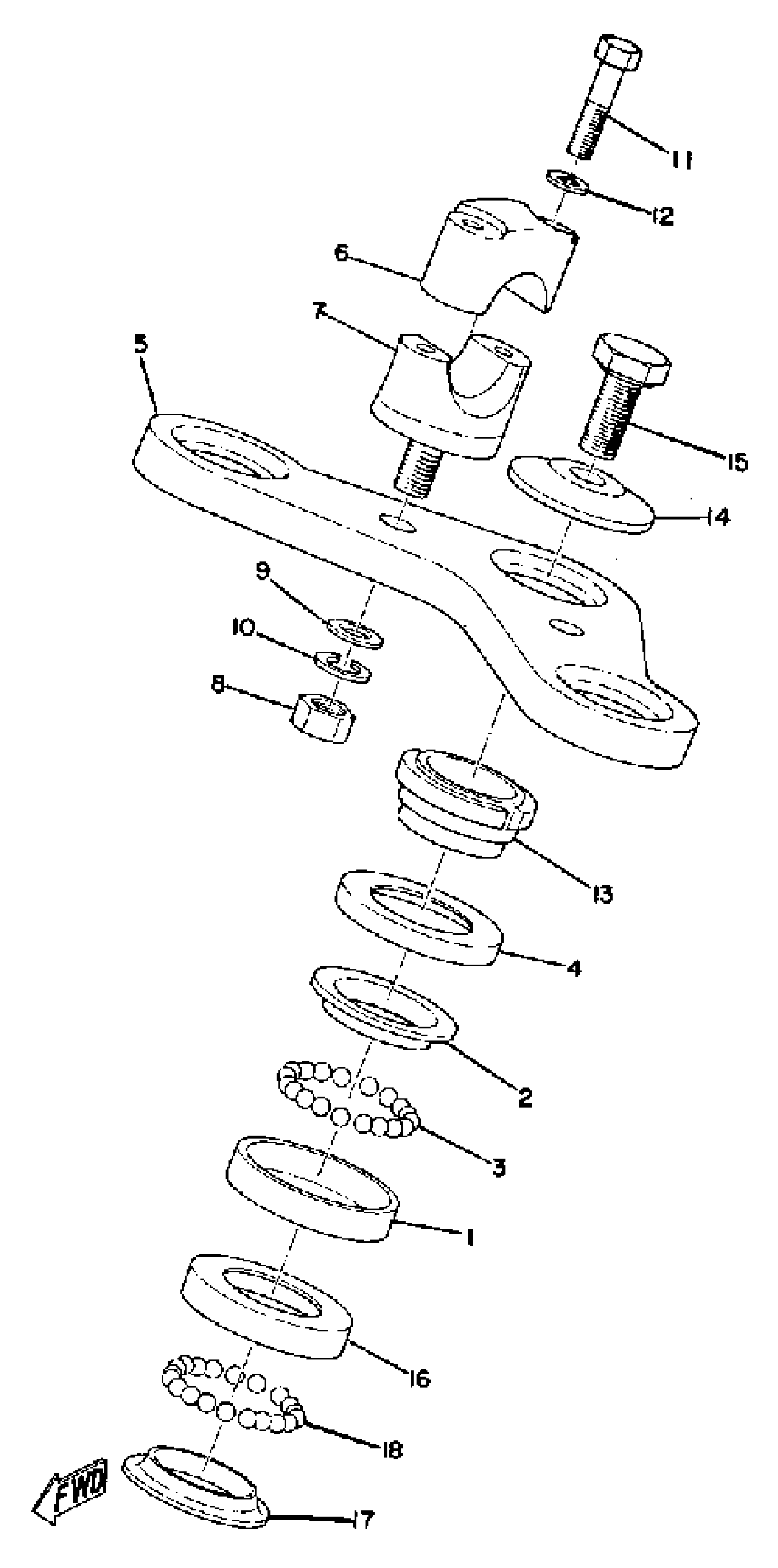

Find the part on the Steering diagram for your 1972 Yamaha JT2_JT2MX (JT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha JT2_JT2MX (JT2MX) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

2

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

3

BALL

93503-16003-00

1

$2.14

In stock

4

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

5

CROWN, HANDLE

185-23435-00-98

1
Out of stock

6

HOLDER, HANDLE UPPER

462-23441-01-00

—
Out of stock

7

HOLDER, HANDLE UNDER

462-23442-00-98

—
Out of stock

8

NUT(3BM)

95314-10600-00

1

$1.74

In stock

9

1

$3.00

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT (122-23453-00)

90179-25051-00

1
Out of stock

14

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

15

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

16

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

17

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

18

BALL

93501-04011-00

—
Out of stock
