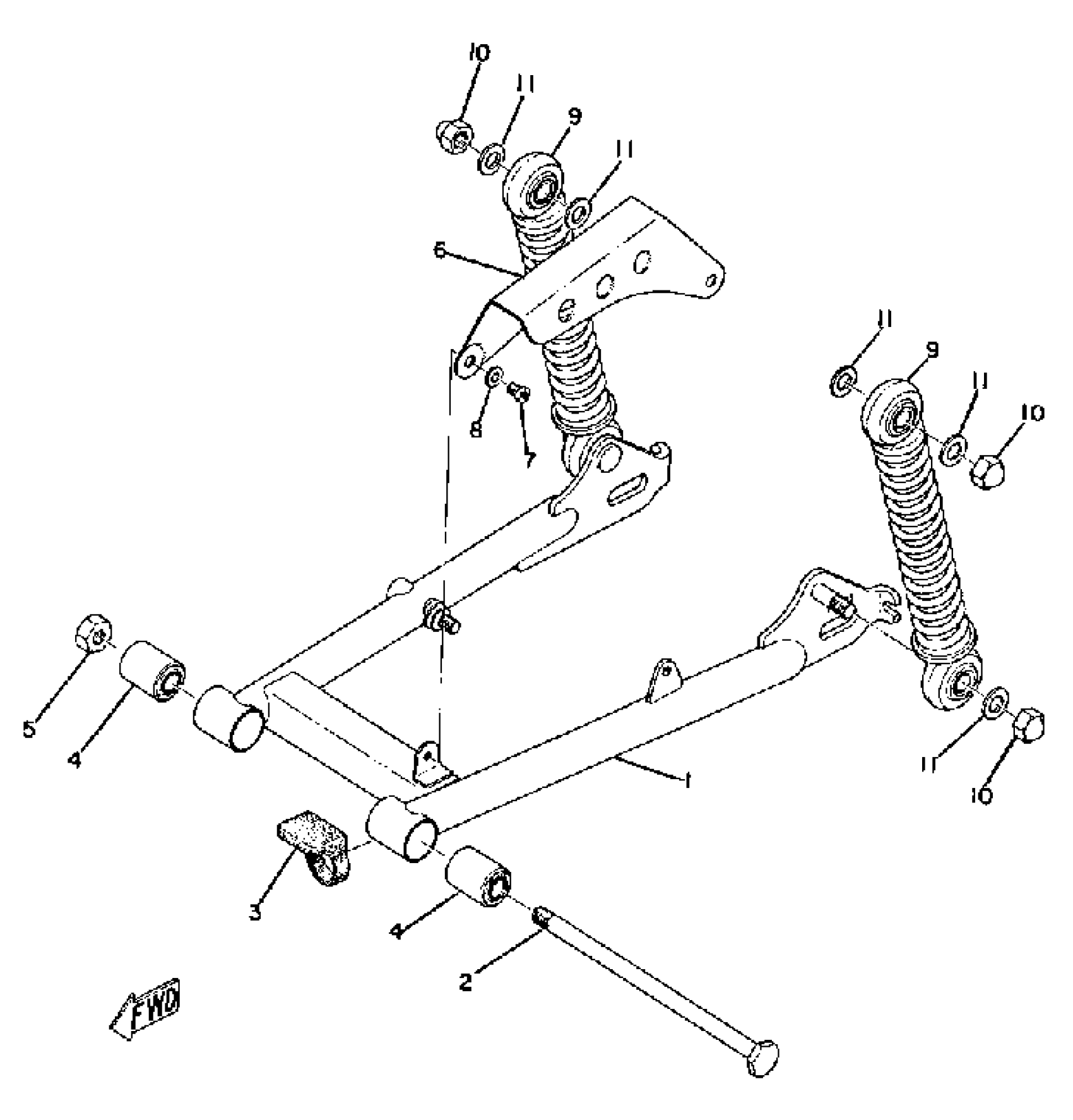

Yamaha JT2MX (JT2_JT2MX) 1972 REAR ARM - REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(288-22110-01-33)

Unavailable

2

SHAFT, PIVOT

288-22141-00-00

$35.94

3

SEAL, GUARD

183-22151-00-00

$7.40

4

BUSH 1

102-22123-00-00

$8.96

5

NUT(3BM)

95314-10600-00

$1.61

6

CASE, CHAIN

288-22311-00-33

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SHK/ABS ASSEMBLY, REAR

(288-22210-20-00)

Unavailable

10

NUT, CROWN (650)

95380-10800-00

$13.52

11

WASHER, PLATE(3BM)

90201-105R9-00

$6.15
