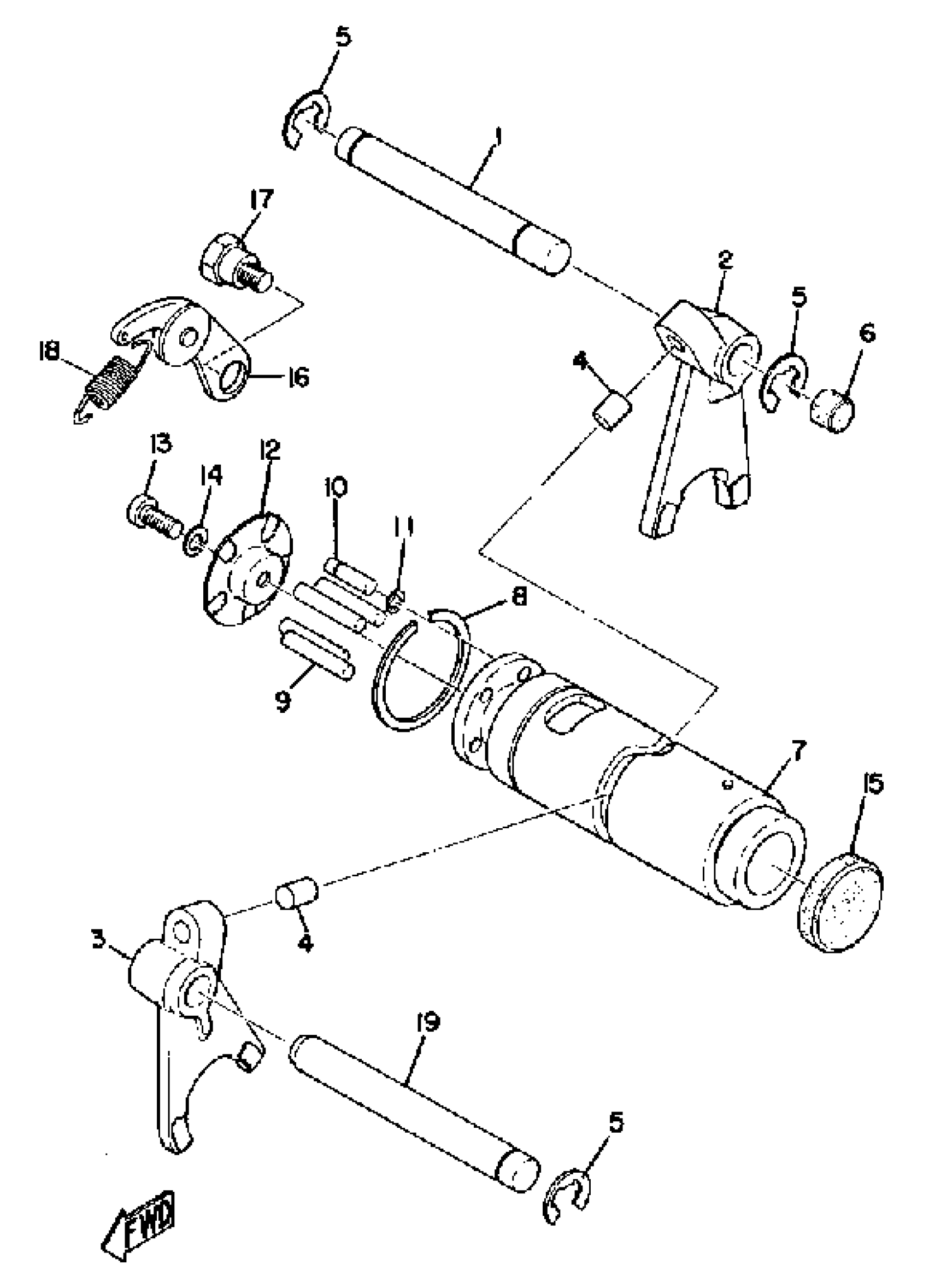

Yamaha JT2MX (JT2_JT2MX) 1972 SHIFTER A Diagram

#

Description
Price

1

BAR, SHIFT FORK GUIDE 2

(257-18534-00-00)

Unavailable

2

FORK, SHIFT 1

(259-18511-01-00)

Unavailable

3

FORK, SHIFT 2

(257-18512-01-00)

Unavailable

4

PIN STRAIGHT 257185520000

90250-06013-00

$9.49

5

CIRCLIP(2R6)

99001-08600-00

$8.49

6

PLUG, BLIND

90334-10006-00

Unavailable

7

SHIFT CAM ASSEMBLY

(257-18540-60-00)

Unavailable

8

CIRCLIP, OUTER (32V SPECIAL)

93440-32017-00

Unavailable

9

PIN,DOWEL (620)

93604-22050-00

$8.49

10

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

11

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

12

PLATE, SIDE

164-18561-00-00

$5.49

13

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

PLUG (21V)

90338-26136-00

Unavailable

16

STOPPER LEVER ASSY

132-18140-01-00

Unavailable

17

BOLT

90109-06239-00

Unavailable

18

SPRING, TENSION (260)

90506-09112-00

Unavailable

19

BAR, SHIFT FORK GUIDE 1

(257-18531-00-00)

Unavailable
