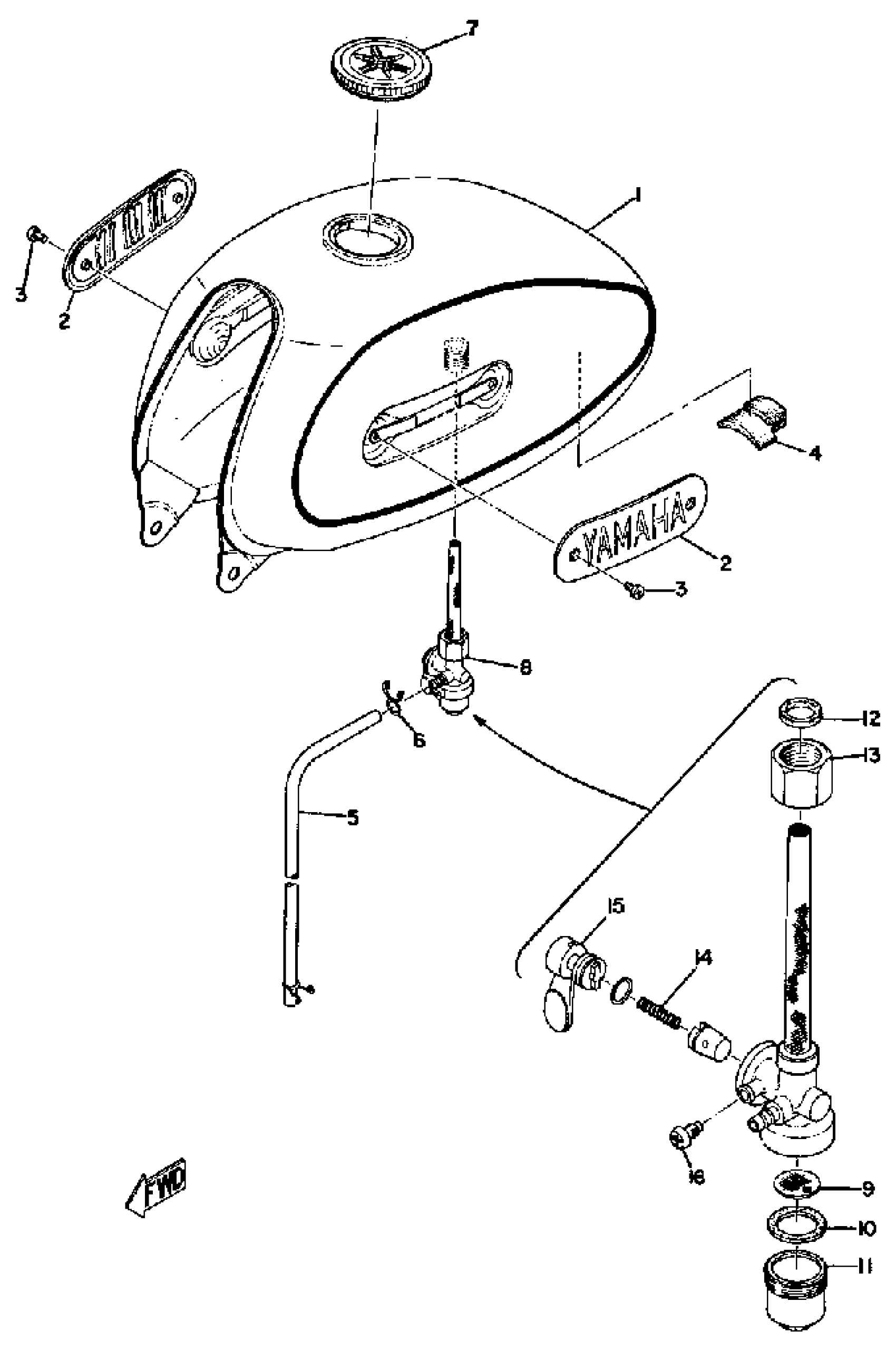

Yamaha JT2MX (JT2_JT2MX) 1972 FUEL TANK Diagram

FUEL TANK

(288-24110-01-03)

Unavailable

FUEL TANK

(288-24110-01-05)

Unavailable

EMBLEM 1

276-24161-00-00

Unavailable

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

DAMPER, LOCATING 1

(288-24181-00-00)

Unavailable

UNAVAILABLE IN PRICE BOOK (612-24311-00)

90445-09096-

Unavailable

CLIP 101235600

90467-08003-00

$10.49

CAP ASSY

122-24610-01-00

$22.99

FUEL COCK ASSY

367-24500-04-00

Unavailable

. NET, FILTER 2

122-24515-00-00

Unavailable

GASKET

102-24522-02-00

$5.49

. CUP, FILTER

122-24521-00-00

Unavailable

GASKET, NUT

122-24532-00-00

$8.99

. NUT

122-24531-00-00

Unavailable

SPRING, COMPRESSION

(90501-07029-00)

Unavailable

. LEVER, COCK

122-24524-00-00

Unavailable

SCREW, LVR FITTING

(127-24535-00-00)

Unavailable
