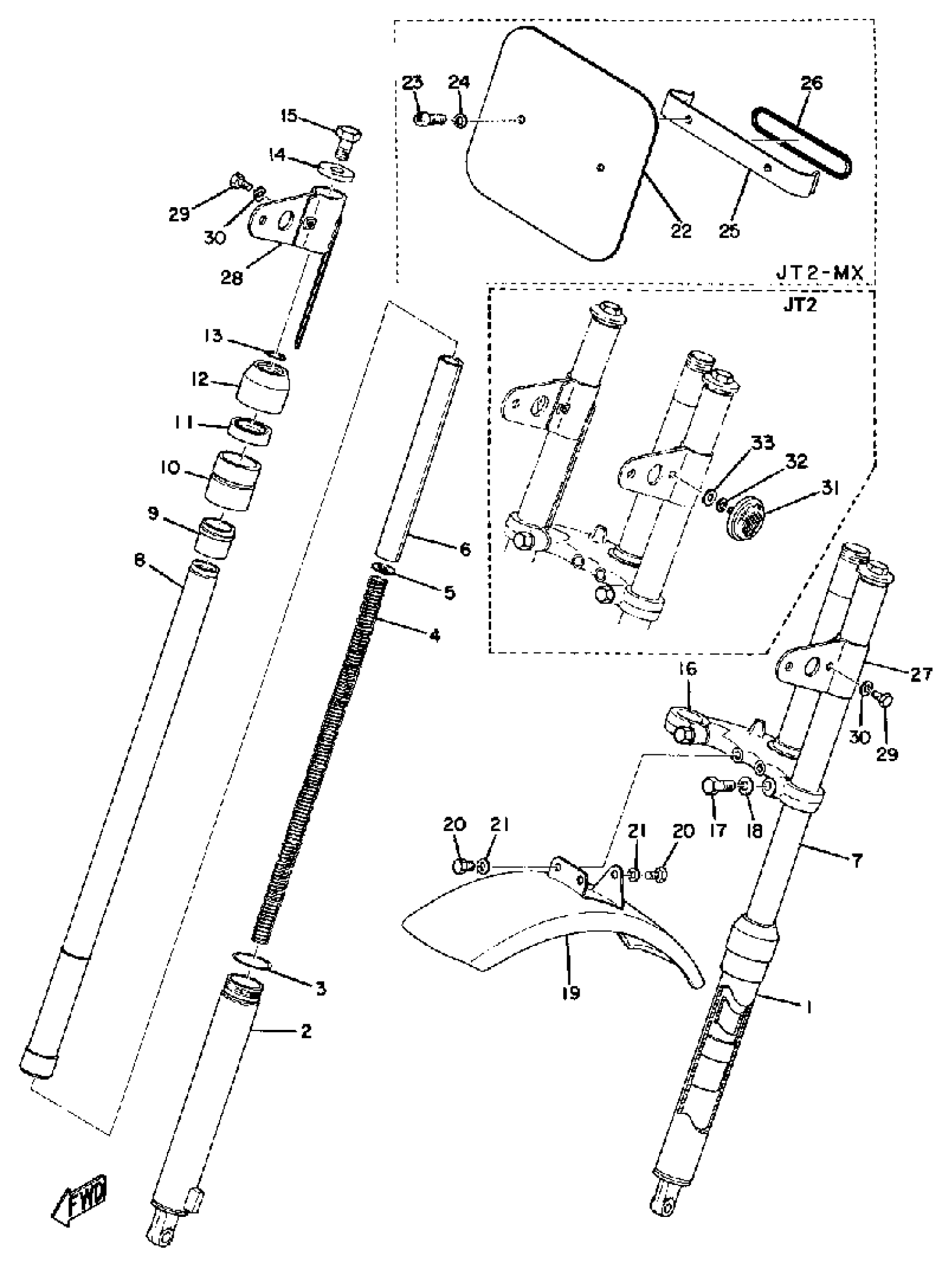

Yamaha JT2MX (JT2_JT2MX) 1972 FRONT FORK - FRONT FENDER Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(288-23100-02-35)

Unavailable

1

TUBE, OUTER 1

(288-23126-00-35)

Unavailable

1

FRONT FORK ASSEMBLY

(338-23100-00-35)

Unavailable

2

. NO LONGER AVAILABLE

288-23136-00-35

Unavailable

3

O-RING

207-23147-00-00

$11.99

4

SPRING, FRONT FORK

367-23141-60-00

Unavailable

5

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

6

SPACER

(290-23118-00-00)

Unavailable

7

TUBE, INNER 2

(290-23134-00-00)

Unavailable

8

TUBE, INNER 2

(290-23134-00-00)

Unavailable

9

. METAL, SLIDE 1

109-23125-00-00

Unavailable

10

. OUTER NUT

290-23150-01-00

Unavailable

11

OIL SEAL

109-23145-01-00

$31.99

12

SEAL, DUST

290-23144-00-00

$23.99

13

GASKET

307-23114-00-00

$9.99

14

WASHER, CAP

207-23112-00-00

Unavailable

15

BOLT, CAP

205-23111-40-00

Unavailable

15

. BOLT, CAP

395-23111-00-00

Unavailable

16

UNDER BRACKET

(290-23340-01-33)

Unavailable

17

BOLT 1

122-23346-02-00

Unavailable

18

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

FENDER, FRONT

(288-21510-01-02)

Unavailable

19

FENDER, FRONT

(288-21510-01-03)

Unavailable

20

BOLT(3JP)

97017-06010-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

. PLATE, NUMBER

288-23485-00-00

Unavailable

23

SCREW PAN HEAD

98580-06010-00

Unavailable

24

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

25

. STAY, PLATE

288-23486-00-00

Unavailable

26

. BAND

288-23489-00-00

Unavailable

27

STAY, HEADLIGHT 1

(290-84118-01-00)

Unavailable

28

STAY, HEADLIGHT 2

(290-84119-01-00)

Unavailable

29

BOLT

(90109-06205-00)

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

. REFLECTOR, FRONT 1

341-85111-00-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

. WASHER, PLAIN

92990-05200-00

Unavailable
